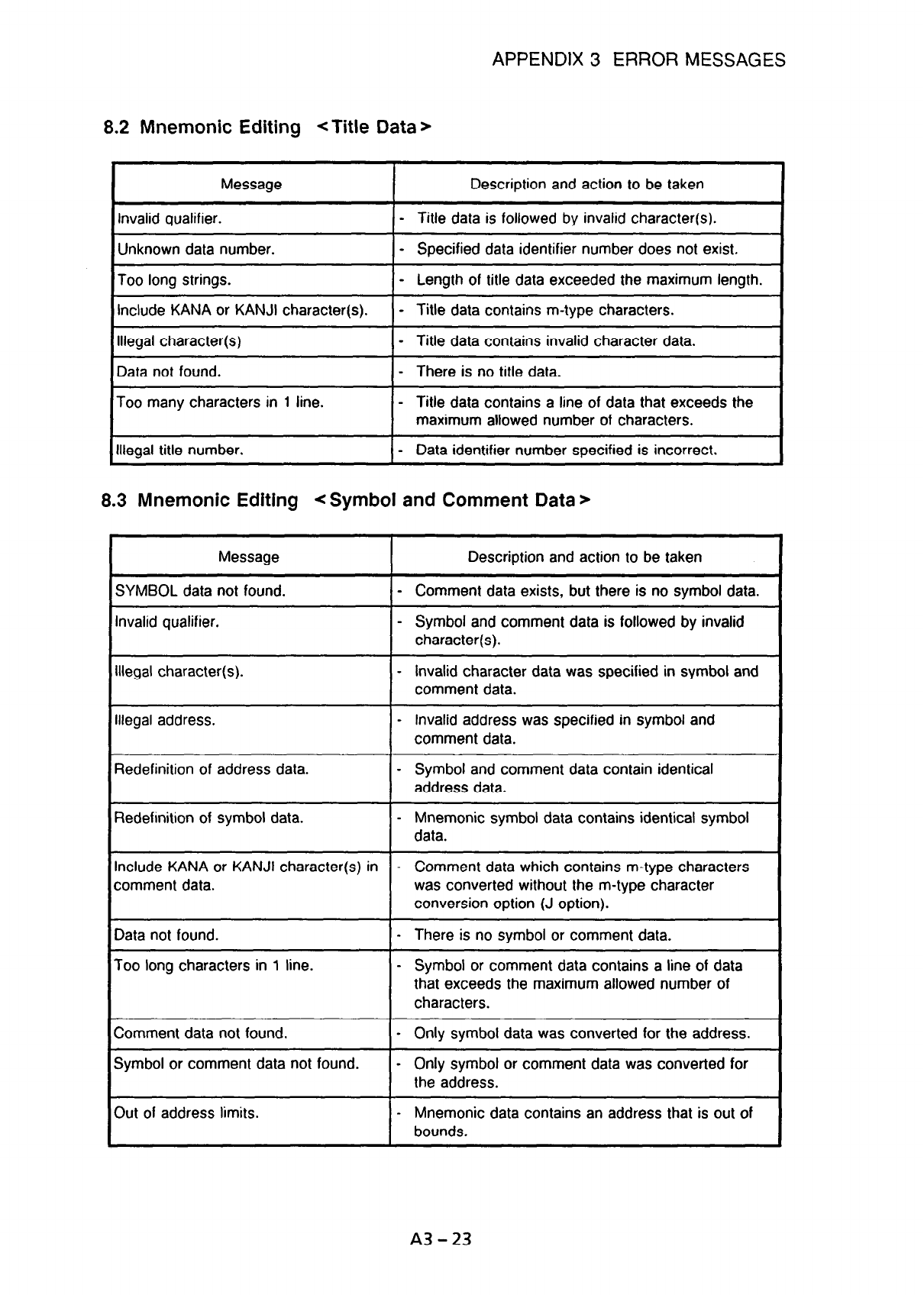

APPENDIX 3 ERROR MESSAGES

8.2 Mnemonic Editing <Title Data B

Message

Invalid qualifier.

Unknown data number.

Too long strings.

Include KANA or KANJI character(s).

Illegal character(s)

Data not found.

Too many characters in 1 line.

Description and action to be taken

- Title data is followed by invalid character(s).

- Specified data identifier number does not exist.

- Length of title data exceeded the maximum length.

- Title data contains m-type characters.

- Title data contains invalid character data.

- There is no title data.

- Title data contains a line of data that exceeds the

maximum allowed number of characters.

Illegal title number. - Data identifier number specified is incorrect.

8.3 Mnemonic Editing (Symbol and Comment Data >

Message

SYMBOL data not found.

Invalid qualifier.

Illegal character(s).

Description and action to be taken

- Comment data exists, but there is no symbol data.

- Symbol and comment data is followed by invalid

character(s).

- Invalid character data was specified in symbol and

comment data.

Illegal address. - Invalid address was specified in symbol and

comment data.

Redefinition of address data.

- Symbol and comment data contain identical

address data.

Redefinition of symbol data. - Mnemonic symbol data contains identical symbol

data.

Include KANA or KANJI character(s) in

- Comment data which contains m-type characters

comment data. was converted without the m-type character

conversion option (J option).

Data not found.

Too long characters in 1 line.

- There is no symbol or comment data.

- Symbol or comment data contains a line of data

that exceeds the maximum allowed number of

characters.

Comment data not found.

Symbol or comment data not found.

- Only symbol data was converted for the address.

- Only symbol or comment data was converted for

the address.

Out of address limits.

- Mnemonic data contains an address that is out of

bounds.

A3-23
