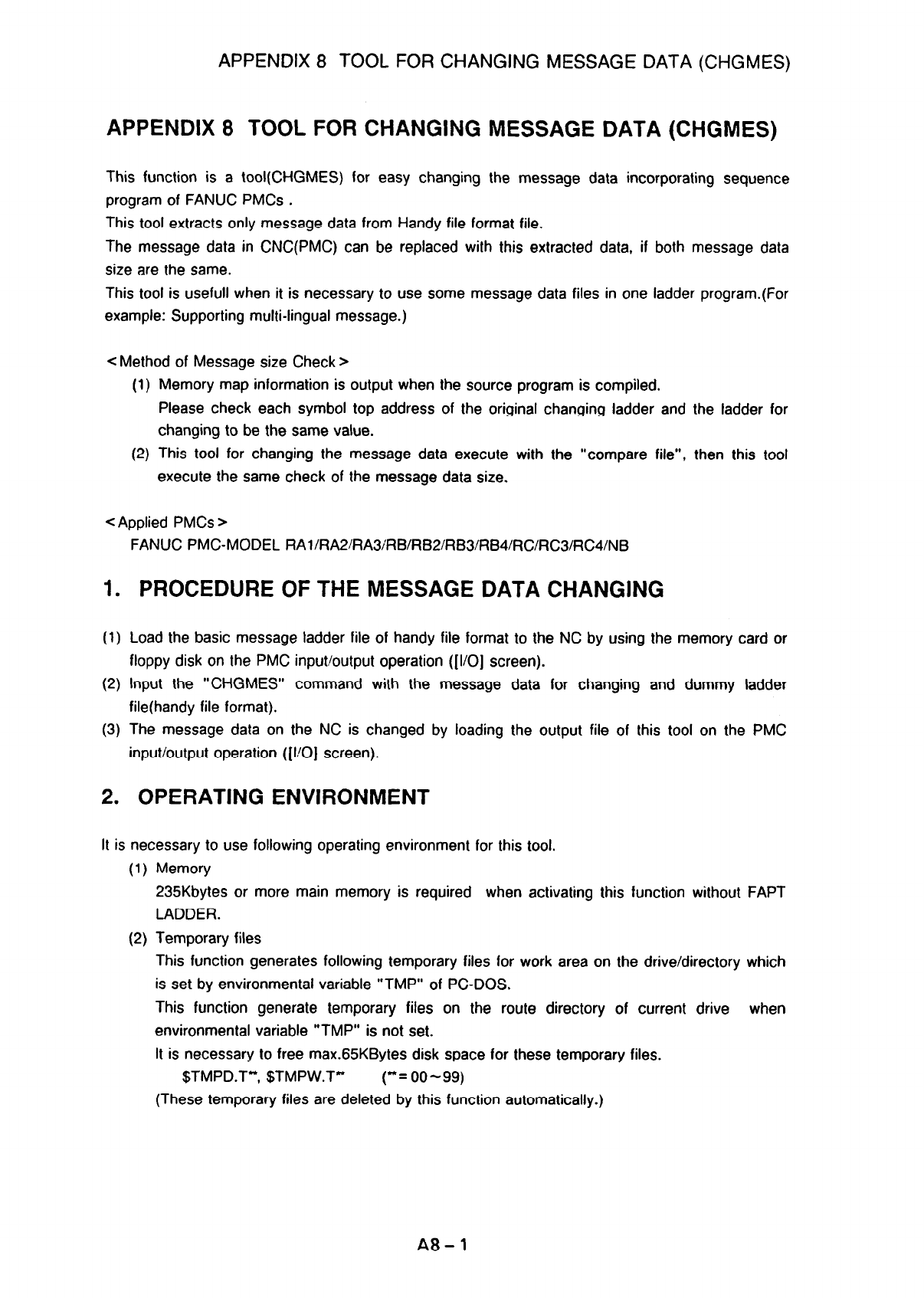

APPENDIX 8 TOOL FOR CHANGING MESSAGE DATA (CHGMES)

This function is a tool(CHGMES) for easy changing the message data incorporating sequence

program of FANUC PMCs .

This tool extracts only message data from Handy file format file.

The message data in CNC(PMC) can be replaced with this extracted data, if both message data

size are the same.

This tool is usefull when it is necessary to use some message data files in one ladder program.(For

example: Supporting multi-lingual message.)

c Method of Message size Check >

(1) Memory map information is output when the source program is compiled.

Please check each symbol top address of the original changing ladder and the ladder for

changing to be the same value.

(2) This tool for changing the message data execute with the “compare file”, then this tool

execute the same check of the message data size.

c Applied PMCs >

FANUC PMC-MODEL RAlIRA2!RA3iRB/RB2/RB3/RBWRC/RC3/RC4/NB

1. PROCEDURE OF THE MESSAGE DATA CHANGING

(1) Load the basic message ladder file of handy file format to the NC by using the memory card or

floppy disk on the PMC input!output operation ([I/O] screen).

(2) Input the “CHGMES” command with the message data for changing and dummy ladder

file(handy file format).

(3) The message data on the NC is changed by loading the output file of this tool on the PMC

input/output operation ([I!01 screen).

2. OPERATING ENVIRONMENT

It is necessary to use following operating environment for this tool.

(1) Memory

235Kbytes or more main memory is required when activating this function without FAPT

LADDER.

(2) Temporary files

This function generates following temporary files for work area on the drive/directory which

is set by environmental variable “TMP” of PC-DOS.

This function generate temporary files on the route directory of current drive when

environmental variable “TMP” is not set.

It is necessary to free max.65KBytes disk space for these temporary files.

$TMPD.T-‘, $TMPW.T”

(“= 00-99)

(These temporary files are deleted by this function automatically.)
