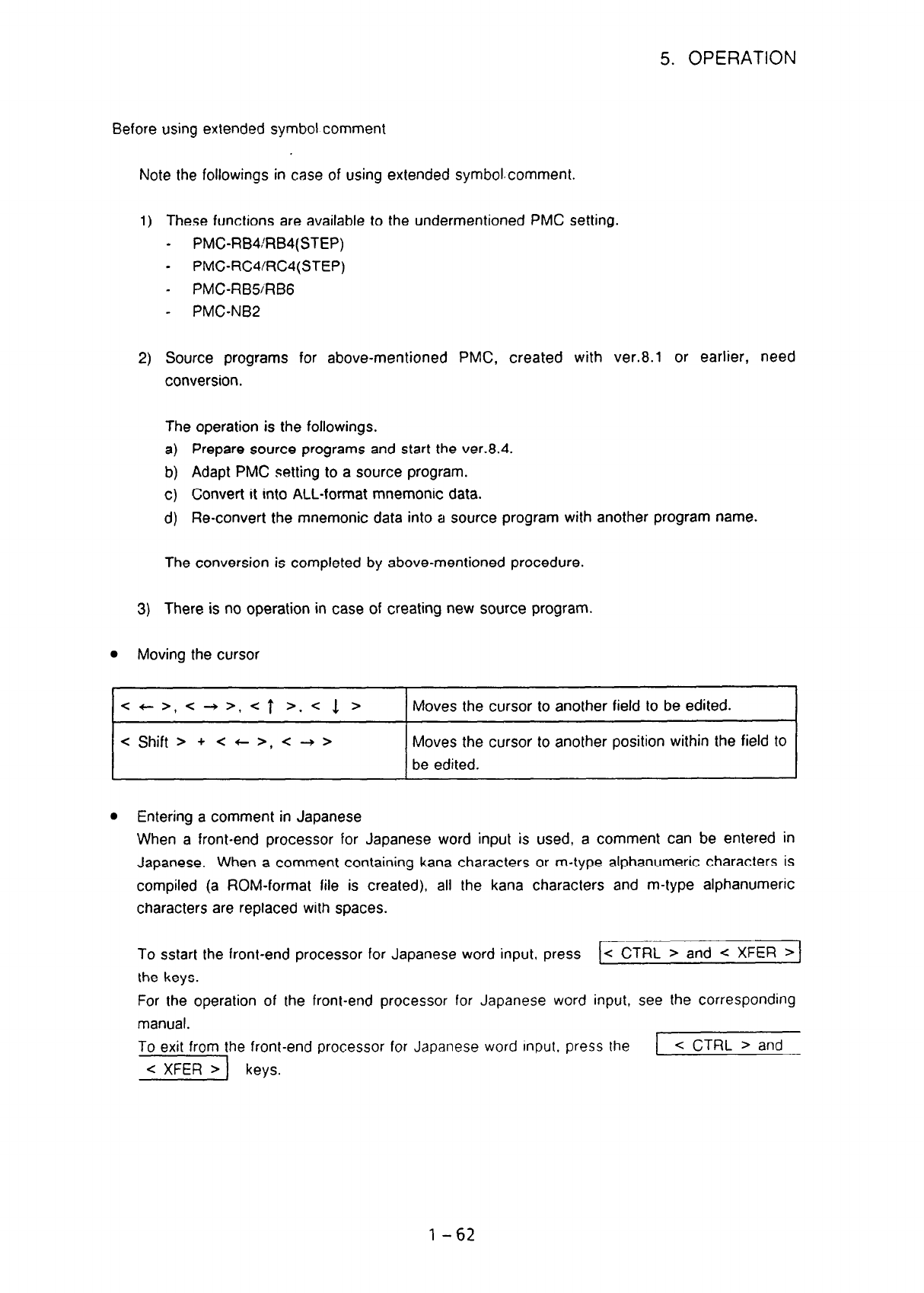

5. OPERATION

Before using extended symbol comment

Note the followings in case of using extended symbofcomment.

These functions are available to the undermentioned PMC setting.

- PMC-RB4!RB4( STEP)

- PMCRC4/RC4(STEP)

- PMC-RBSiRB6

- PMC-NB2

Source programs for above-mentioned PMC, created with ver.8.1 or earlier, need

conversion.

The operation is the followings.

Prepare source programs and start the ver.8.4.

Adapt PMC setting to a source program.

Convert it into ALL-format mnemonic data.

Reconvert the mnemonic data into a source program with another program name.

The conversion is completed by above-mentioned procedure.

There is no operation in case of creating new source program.

l Moving the cursor

< +- >, < + 7, <t 7, < 5_ 7

Moves the cursor to another field to be edited.

Moves the cursor to another position within the field to

be edited.

l Entering a comment in Japanese

When a front-end processor for Japanese word input is used, a comment can be entered in

Japanese. When a comment containing kana characters or m-type alphanumeric characters is

compiled (a ROM-format file is created), all the kana characters and m-type alphanumeric

characters are replaced with spaces.

To sstart the front-end processor for Japanese word input, press

< CTRL > and < XFER 7

the keys.

For the operation of the front-end processor for Japanese word input, see the corresponding

manual.

To exit from the front-end processor for Japanese word Input. press the

‘<I keys.

< CTRL 7 and

1-62
