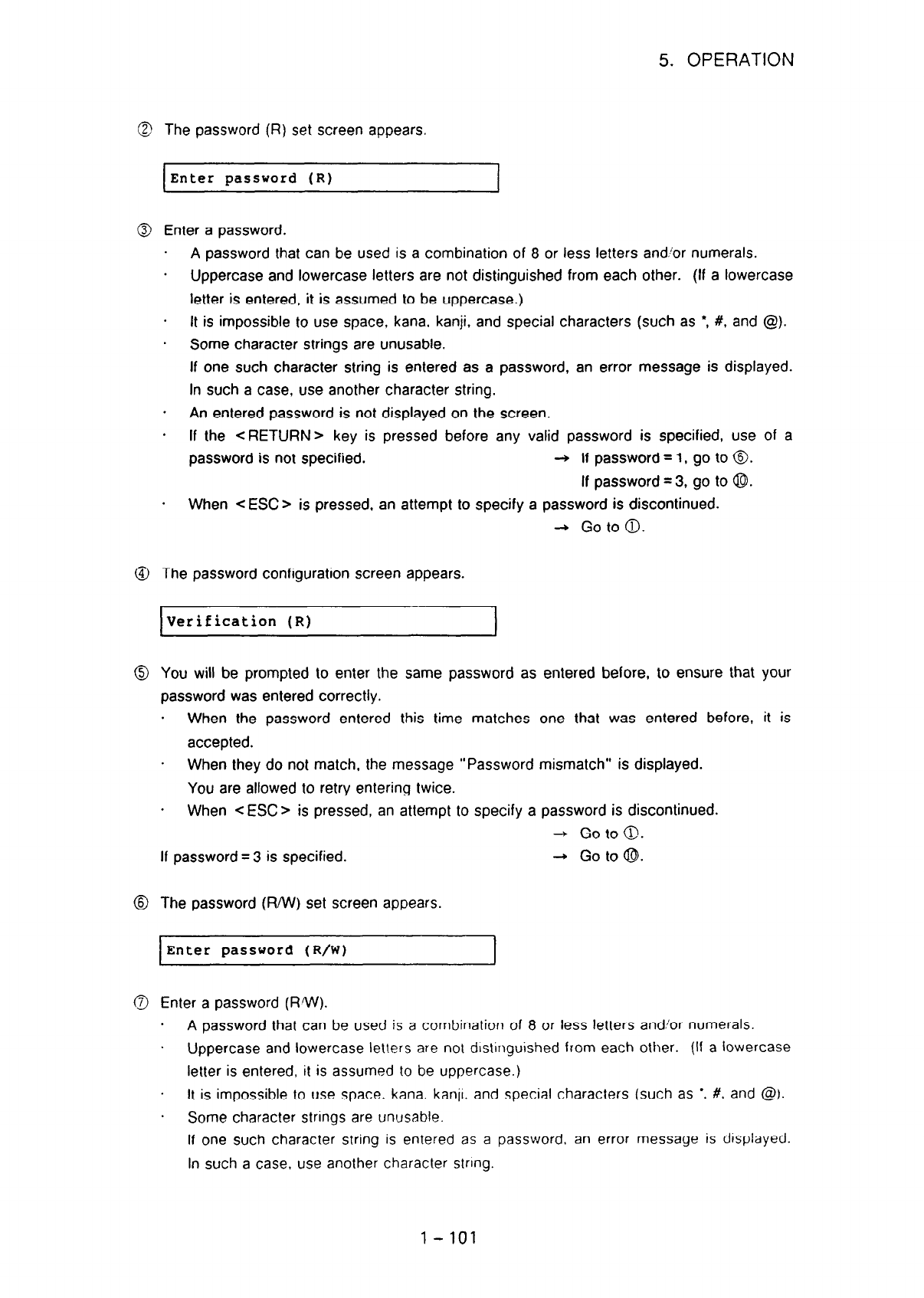

5. OPERATION

@ The password (R) set screen appears.

Enter password (R)

@ Enter a password.

. A password that can be used is a combination of 8 or less letters and.;or numerals.

* Uppercase and lowercase letters are not distinguished from each other. (If a lowercase

letter is entered, it is assumed to be uppercase.)

* It is impossible to use space, kana. kanji, and special characters (such as l , #, and @).

. Some character strings are unusable.

If one such character string is entered as a password, an error message is displayed.

In such a case, use another character string.

* An entered password is not displayed on the screen.

* If the <RETURN> key is pressed before any valid password is specified, use of a

password is not specified.

-, If password = 1, go to @.

If password = 3, go to @.

* When <ESC> is pressed, an attempt to specify a password is discontinued.

-+ GotoO.

@ The password configuration screen appears.

Verification (R)

0 You will be prompted to enter the same password as entered before, to ensure that your

password was entered correctly.

* When the password entered this time matches one that was entered before, it is

accepted.

. When they do not match, the message “Password mismatch” is displayed.

You are allowed to retry entering twice.

- When <ESC> is pressed, an attempt to specify a password is discontinued.

+ Go tom.

If password = 3 is specified.

+ Go to@.

@ The password (R#V) set screen appears.

Enter password (R/W)

0 Enter a password (R/W).

- A password that can be used is a combination of 8 or less letters and!or numerals.

. Uppercase and lowercase letters are not distinguished from each other. (If a lowercase

letter is entered, it is assumed to be uppercase.)

. It is impossible to use space. kana. kanji. and special characters (such as *, #, and @).

. Some character strings are unusable.

If one such character string is entered as a password, an error message is displayed.

In such a case, use another character string.

1- 101
