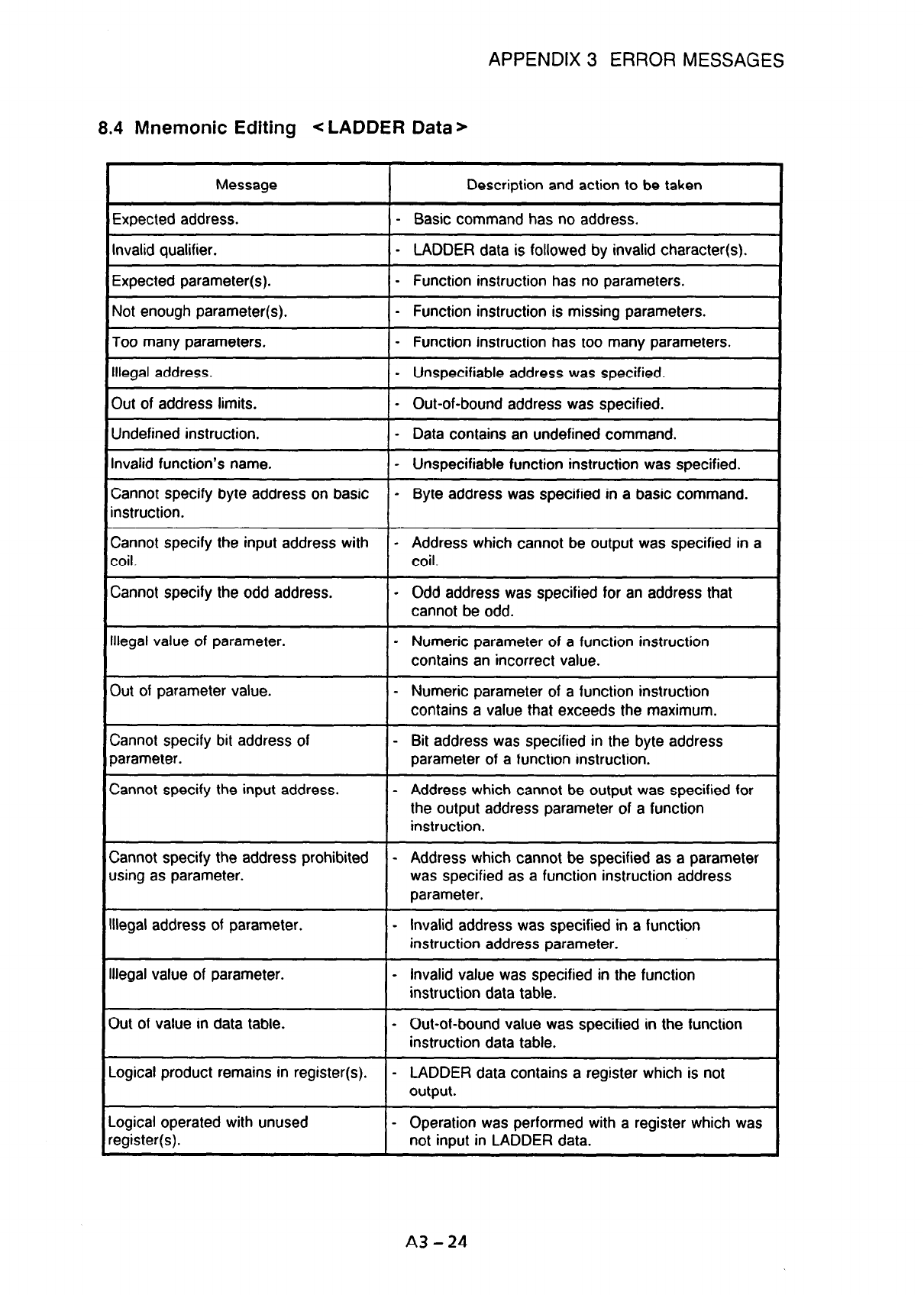

APPENDIX 3 ERROR MESSAGES

8.4 Mnemonic Editing (LADDER Data >

Message

Description and action to be taken

Expected address.

- Basic command has no address.

invalid qualifier. - LADDER data is followed by invalid character(s).

Expected parameter(s). - Function instruction has no parameters.

Not enough parameter(s). - Function instruction is missing parameters.

Too many parameters.

- Function instruction has too many parameters.

Illegal address.

- Unspecifiable address was specified.

Out of address limits.

- Out-of-bound address was specified.

Undefined instruction.

- Data contains an undefined command.

Invalid function’s name.

- Unspecifiable function instruction was specified.

Cannot specify byte address on basic

- Byte address was specified in a basic command.

instruction.

Cannot specify the input address with - Address which cannot be output was specified in a

coil. coil.

Cannot specify the odd address. - Odd address was specified for an address that

cannot be odd.

Illegal value of parameter.

- Numeric parameter of a function instruction

contains an incorrect value.

Dut of parameter value.

- Numeric parameter of a function instruction

contains a value that exceeds the maximum.

Cannot specify bit address of

oarameter.

Cannot specify the input address.

- Bit address was specified in the byte address

parameter of a function instruction.

- Address which cannot be output was specified for

the output address parameter of a function

instruction.

Cannot specify the address prohibited

- Address which cannot be specified as a parameter

Jsing as parameter.

was specified as a function instruction address

parameter.

llegal address of parameter.

- Invalid address was specified in a function

instruction address parameter.

llegal value of parameter.

- Invalid value was specified in the function

instruction data table.

3ut of value in data table.

- Out-of-bound value was specified in the function

instruction data table.

_ogical product remains in register(s).

- LADDER data contains a register which is not

output.

_ogical operated with unused

- Operation was performed with a register which was

,egister(s).

not input in LADDER data.

A3-24
