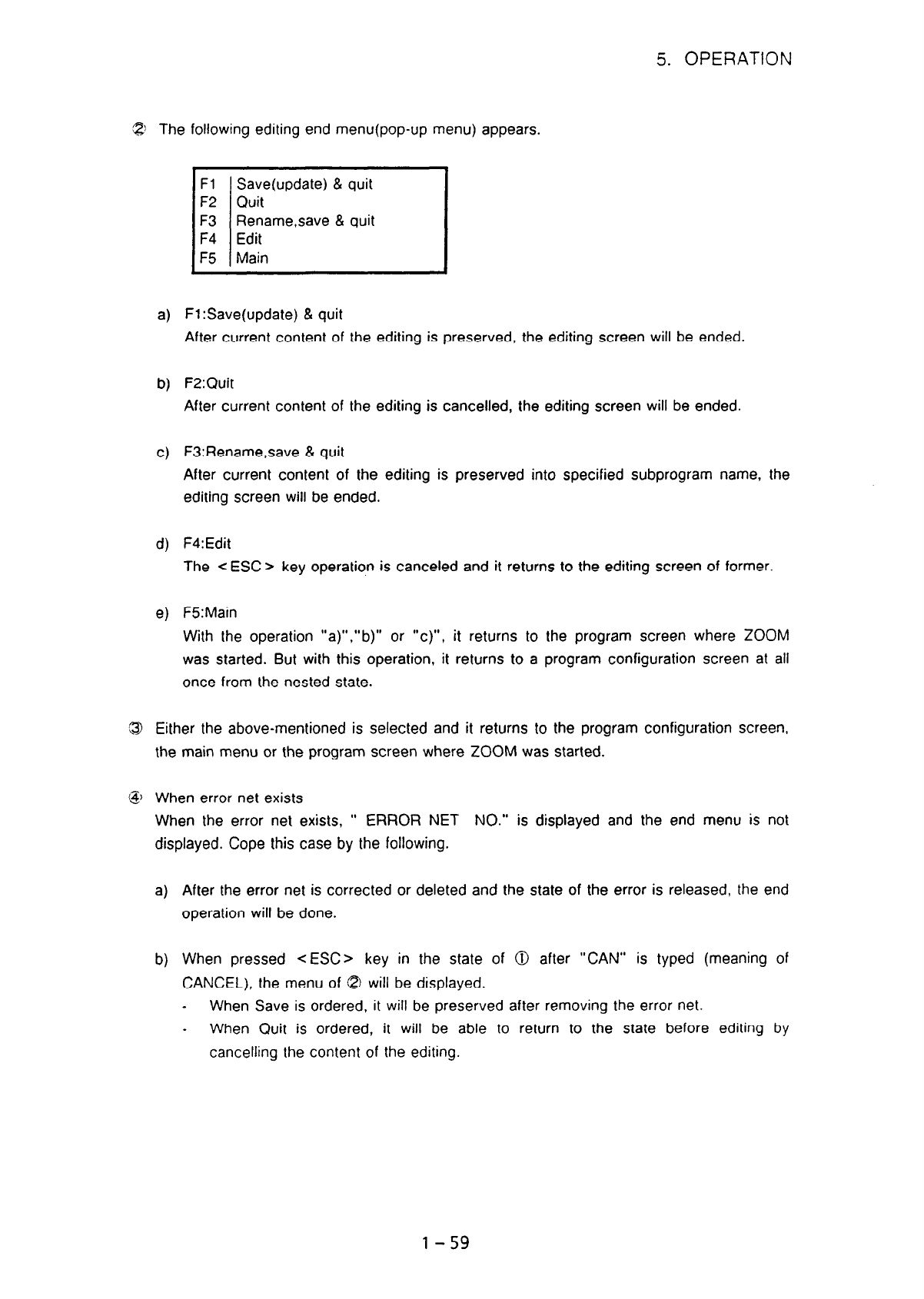

5. OPERATION

The following editing end menu(pop-up menu) appears.

1 Fl Save(update) & quit

F2 Quit

F3 Renamesave & quit

F4 Edit

F5 Main

1 :Save(update) 81 quit

After current content of the editing is preserved, the editing screen will be ended.

F2:Quit

After current content of the editing is cancelled, the editing screen will be ended.

F3:Renamesave & quit

After current content of the editing is preserved into specified subprogram name, the

editing screen will be ended.

F4:Edit

The c ESC > key operation is canceled and it returns to the editing screen of former.

F5:Main

With the operation “a)“.“b)” or “c)“,

it returns to the program screen where ZOOM

was started. But with this operation, it returns to a program configuration screen at all

once from the nested state.

Either the above-mentioned is selected and it returns to the program configuration screen,

the main menu or the program screen where ZOOM was started.

When error net exists

When the error net exists, ”

ERROR NET NO.” is displayed and the end menu is not

displayed. Cope this case by the following.

a) After the error net is corrected or deleted and the state of the error is released, the end

operation will be done.

b) When pressed <ESC> key in the state of 0 after “CAN” is typed (meaning of

CANCEL), the menu of 6, will be displayed.

When Save is ordered, it will be preserved after removing the error net.

When Quit is ordered, it will be able to return to the state before editing by

cancelling the content of the editing.
