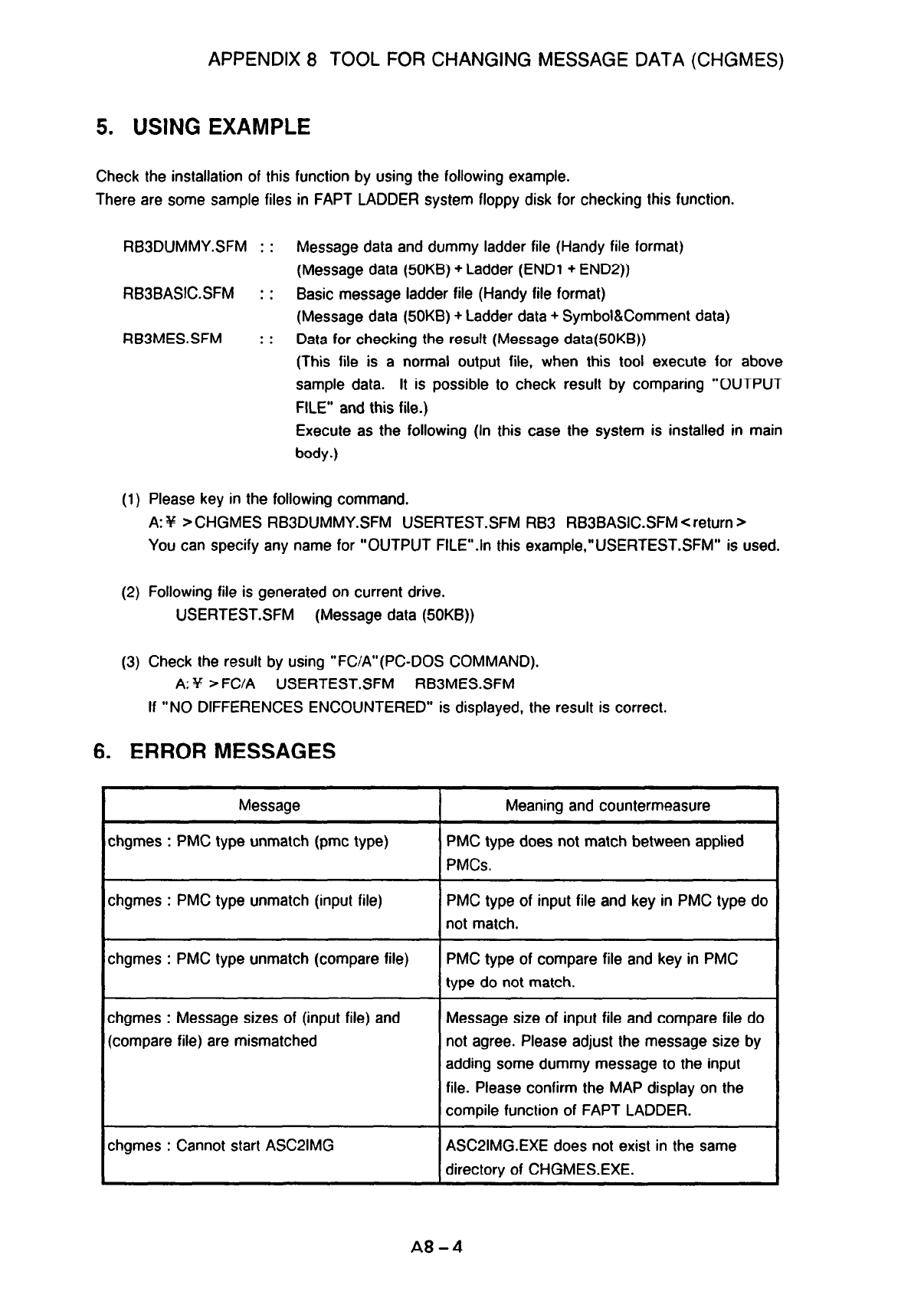

APPENDIX 8 TOOL FOR CHANGING MESSAGE DATA (CHGMES)

5. USING EXAMPLE

Check the installation of this function by using the following example.

There are some sample files in FAPT LADDER system floppy disk for checking this function.

RB3DUMMY.SFM : : Message data and dummy ladder file (Handy file format)

(Message data (50KB) + Ladder (END1 + END2))

RB3BASIC.SFM : : Basic message ladder file (Handy file format)

(Message data (50KB) + Ladder data + Symbol&Comment data)

RB3MESSFM

: : Data for checking the result (Message data(50KB))

(1)

(2)

(3)

(This file is a normal output file, when this tool execute for above

sample data. It is possible to check result by comparing “OUTPUT

FILE” and this file.)

Execute as the following (In this case the system is installed in main

body.)

Please key in the following command.

A: y 7 CHGMES RB3DUMMY.SFM USERTEST.SFM RB3 RB3BASIC.SFM < return 7

You can specify any name for “OUTPUT FILE”.ln this example,“USERTEST.SFM” is used.

Following file is generated on current drive.

USERTESTSFM (Message data (50KB))

Check the result by using “FC/A”(PC-DOS COMMAND).

A: Y 7 FC/A USERTEST.SFM RB3MES.SFM

If “NO DIFFERENCES ENCOUNTERED” is displayed, the result is correct.

6. ERROR MESSAGES

Message

chgmes : PMC type unmatch (pmc type)

Meaning and countermeasure

PMC type does not match between applied

PMCs.

chgmes : PMC type unmatch (input file)

PMC type of input file and key in PMC type do

not match.

chgmes : PMC type unmatch (compare file)

PMC type of compare file and key in PMC

type do not match.

chgmes : Message sizes of (input file) and

(compare file) are mismatched

Message size of input file and compare file do

not agree. Please adjust the message size by

adding some dummy message to the input

file. Please confirm the MAP display on the

compile function of FAPT LADDER.

chgmes : Cannot start ASC2lMG

ASC2lMG.EXE does not exist in the same

directory of CHGMES.EXE.

A8-4
