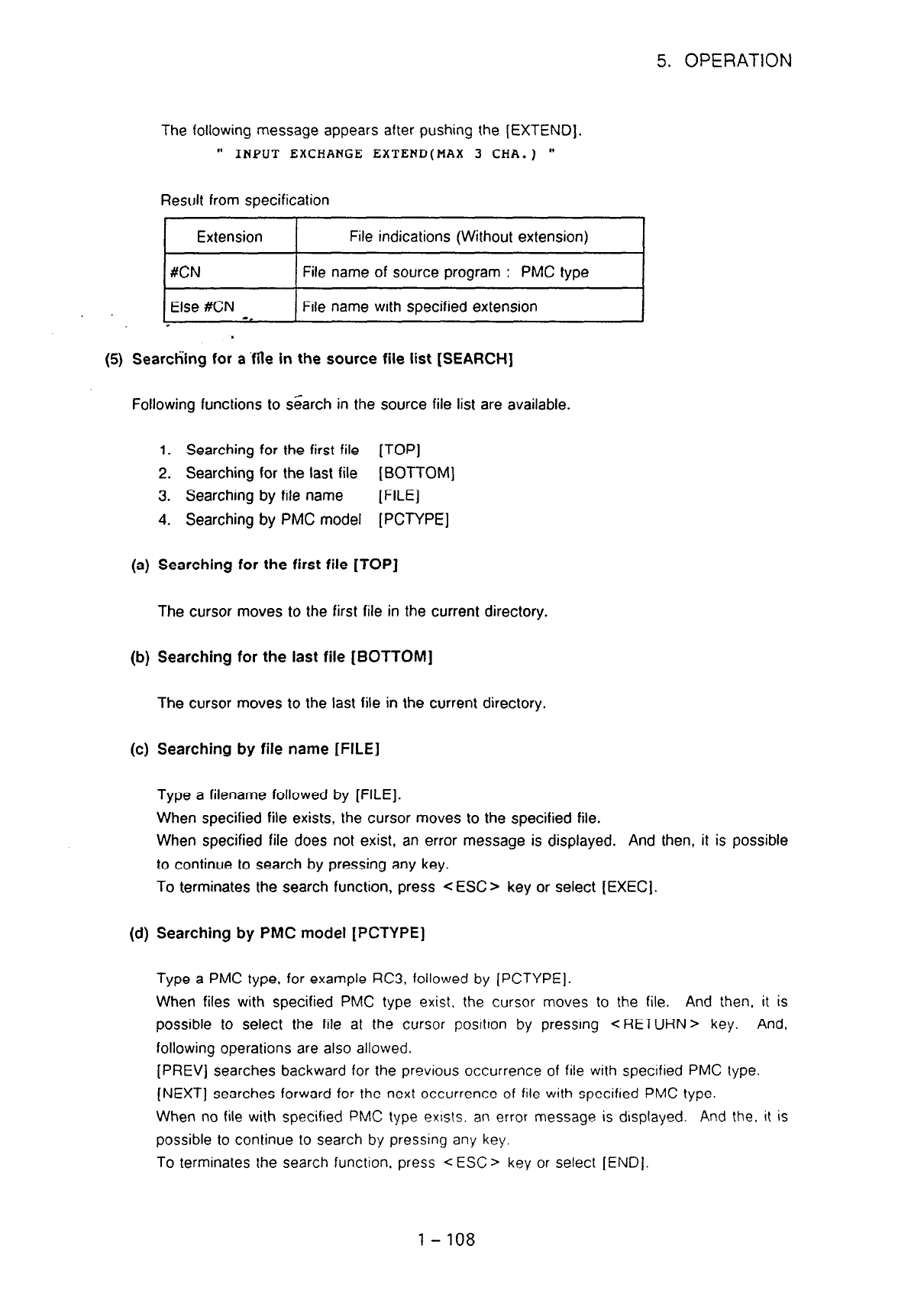

FAPT Ladder for PC Operators manual Page 115

Operators manual
5. OPERATION
The following message appears after pushing the [EXTEND].
’ INPUT EXCHANGE EXTEND(MAX 3 CHA.) '
Result from specification
File indications (Without extension)
File name with specified extension
Searching for a ‘fle in the source file list [SEARCH]
Following functions to &arch in the source file list are available.
(4
Searching for the first file [TOP]
The cursor moves to the first file in the current directory.
lb)
Searching for the last file [BOTTOM]
The cursor moves to the last file in the current directory.
w
Searching by file name [FILE]
Type a filename followed by [FILE].
When specified file exists, the cursor moves to the specified file.
When specified file does not exist, an error message is displayed. And then, it is possible
to continue to search by pressing any key.
To terminates the search function, press < ESC > key or select [EXEC].
(4
Searching by PMC model (PCTYPE)
1. Searching for the first file
[TOPI
2. Searching for the last file [BOTTOM]
3. Searching by file name
[FILE]
4. Searching by PMC model [PCTYPE]
Type a PMC type, for example RC3, followed by [PCTYPE].
When files with specified PMC type exist, the cursor moves to the file. And then, it is
possible to select the file at
th
e cursor position by pressing <RETURN> key. And,
following operations are also allowed.
[PREV] searches backward for the previous occurrence of file with specified PMC type.
[NEXT] searches forward for the next occurrence of file with specified PMC type.
When no file with specified PMC type exrsts, an error message is displayed. And the, it is
possible to continue to search by pressing any key.
To terminates the search function, press < ESC z= key or select [ENDj.
