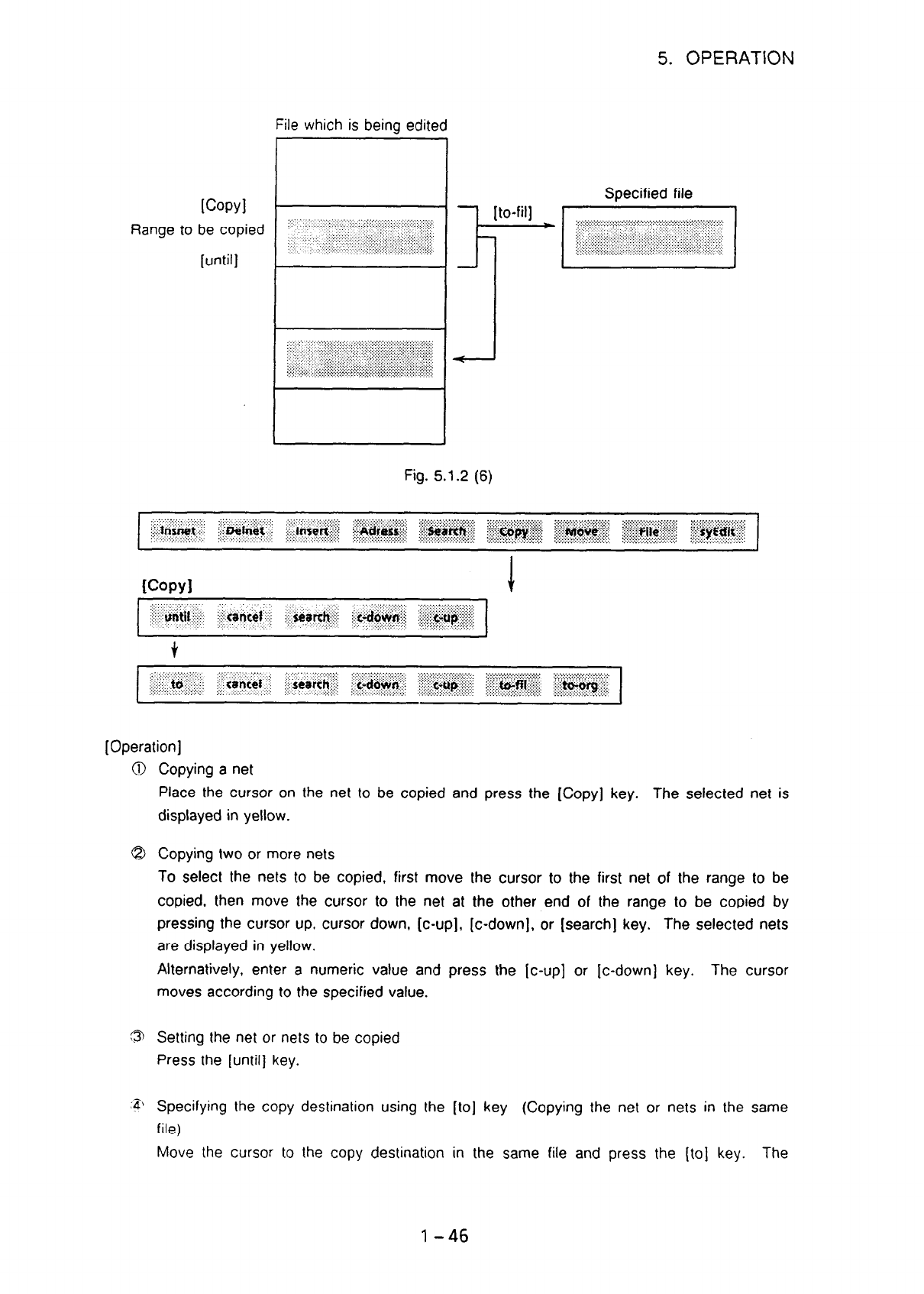

5. OPERATiON

File which is beinq edited

[COPY 1

Range to be copied

[until]

Fig. 51.2 (6)

Specified file

[COPY]

.,:/..:...\:::..: . . . . :...;. . ‘...,’ :,

.‘.Z’_’ ,” . . ...‘).’ .:.:.::,:.:.‘.:.‘:.:.:,:.;,, ..:.:.:...:.:.:.::.‘...:.:.:.:.L:.,.

:.:.:.:.:.:.:,‘.‘:y(.:.~.:::

:.:.:i’i .:,:,y . . . . . :.>;.x ,:.y .‘.....‘.:.:Q:.:.:~:.:.~.:.: 1:.

$$ :::;$$,j:$;~: $ ++t :I;, $ ‘S;+b ;; ;:&J&&,l ~~i~~~~~~,~~~ ~:~~pI~~, j@$j$$

:: ::..:.:- ,. .::::::::: $+.:.

.:.:.:.:i.::,.:::::::: .,:.:..:::::

.~:::.:.:.~.:::.:.;::..‘_,._. :.:

[Operation]

Copying a net

Place the cursor on the net to be copied and press the [Copy] key. The selected net is

displayed in yellow.

Copying two or more nets

To select the nets to be copied, first move the cursor to the first net of the range to be

copied, then move the cursor to the net at the other end of the range to be copied by

pressing the cursor up, cursor down, [c-up], [c-down], or [search] key. The selected nets

are displayed in yellow.

Alternatively, enter a numeric value and press the [c-up] or [c-down] key. The cursor

moves according to the specified value.

Setting the net or nets to be copied

Press the [until] key.

Specifying the copy destination using the

file)

[to] key (Copying the net or nets in the same

Move the cursor to the copy destination

in the same file and press the (to] key. The

l-46
