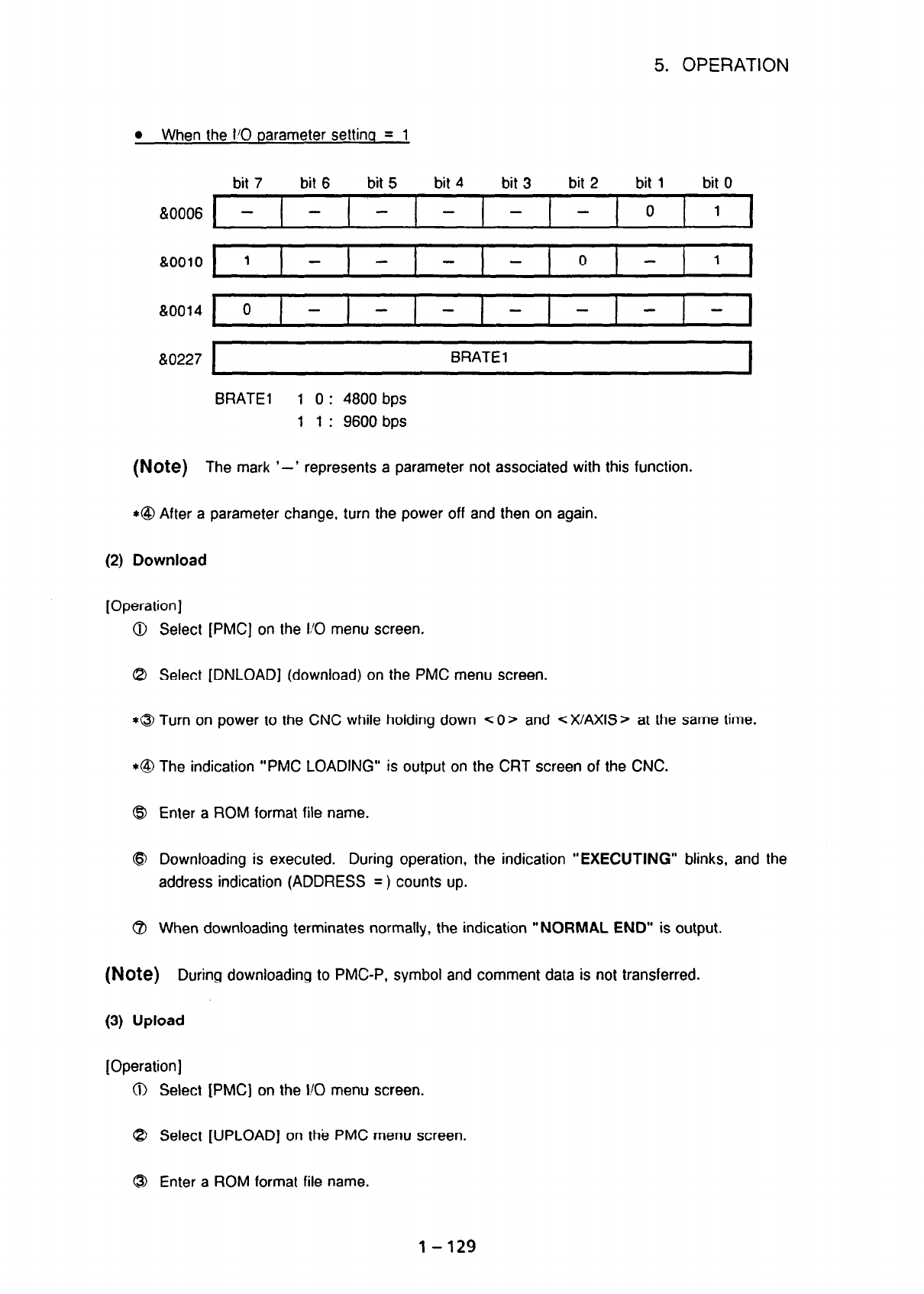

5. OPERATION

l When the I/O parameter settino = 1

II0006

a0010

&0014

8~0227

bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0

BRATEl

BRATEl 1 0: 4800 bps

1 1 : 9600 bps

(Note) The mark ‘-’

represents a parameter not associated with this function.

*@ After a parameter change, turn the power off and then on again.

(2) Download

[Operation]

0 Select [PMC] on the I!0 menu screen.

8 Select [DNLOAD] (download) on the PMC menu screen.

*@ Turn on power to the CNC while holding down < 0 > and <X/AXIS > at the same time.

*@ The indication “PMC LOADING” is output on the CRT screen of the CNC.

@ Enter a ROM format file name.

8 Downloading is executed.

During operation, the indication “EXECUTING” blinks, and the

address indication (ADDRESS =) counts up.

@ When downloading terminates normally, the indication “NORMAL END” is output.

(Note) During downloading to PMC-P, symbol and comment data is not transferred.

(3) Upload

[Operation]

Select [PMC] on the I!0 menu screen.

Select [UPLOAD] on the PMC menu screen.

Enter a ROM format file name.

l-129
