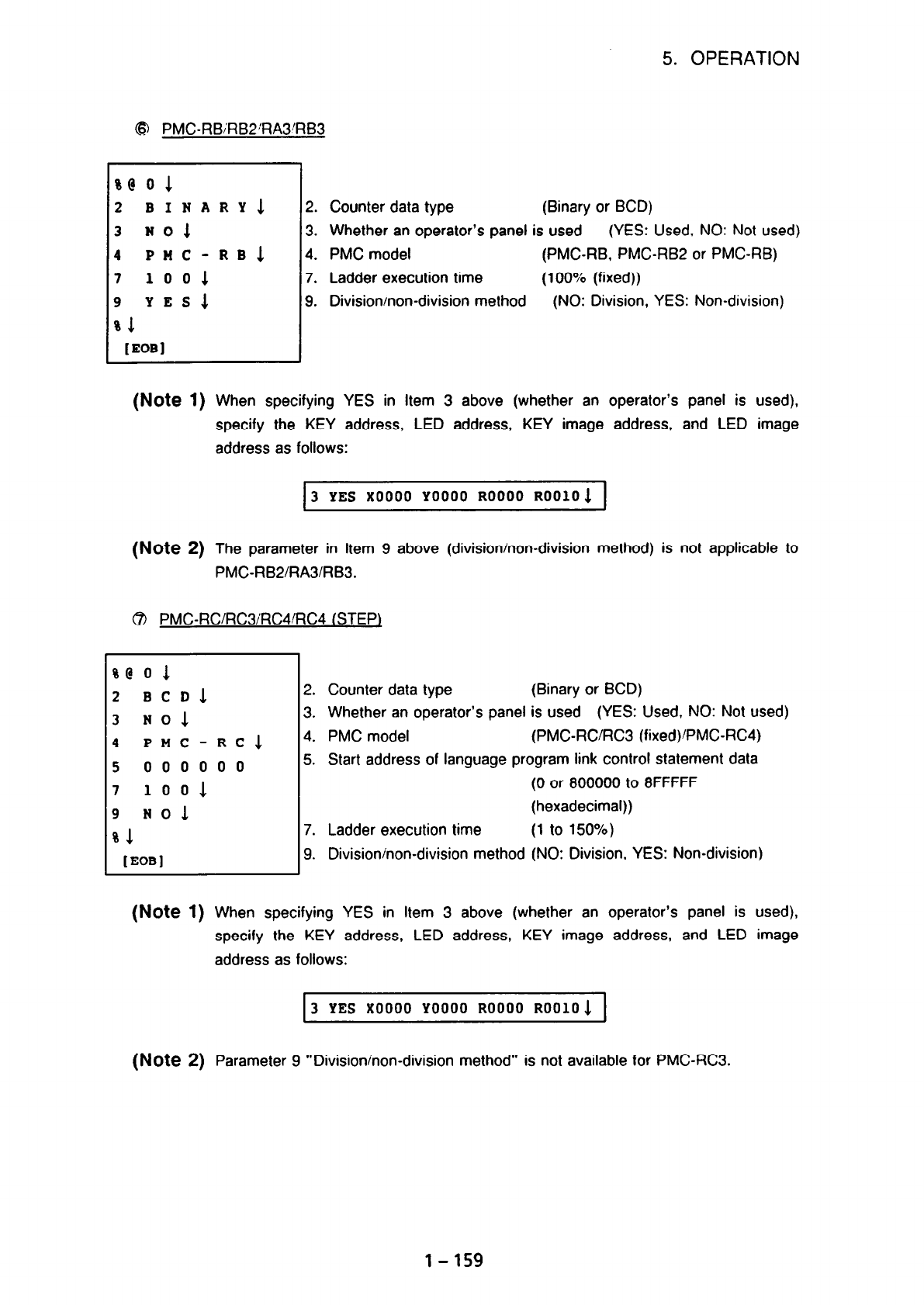

5. OPERATION

@ PMCRB,‘RB2RA3’RB3

0 1

BINARY1

NO1

PMC-RB1

1001

YES1

[EOBI

Counter data type

(Binary or BCD)

Whether an operator’s panel is used

(YES: Used, NO: Not used)

PMC model

(PMC-RB, PMCRB2 or PMC-RB)

Ladder execution time

(100% (fixed))

Division/non-division method

(NO: Division, YES: Non-division)

(Note 1) When specifying

YES in Item 3 above (whether an operator’s panel is used),

specify the KEY address, LED address, KEY image address, and LED image

address as follows:

3 YES X0000 YOOOO ROOOO ROOlOl

(Note 2) The parameter in Item 9 above (division/non-division method) is not applicable to

PMCRB2/RA3/RB3.

@ PMCRCIRC3iRC4IRC4 (STEP)

0 1

BCDS.

ND1

PMC-RCl

000000

100s.

NOi

[EoBl

Counter data type (Binary or BCD)

Whether an operator’s panel is used

(YES: Used, NO: Not used)

PMC model (PMCRCRC3 (fixed)/PMC-RC4)

Start address of language program link control statement data

(0 or 800000 to 8FFFFF

(hexadecimal))

Ladder execution time

(1 to 150%)

Division/non-division method (NO: Division, YES: Non-division)

(Note 1) When specifying YES in Item 3 above (whether an operator’s panel is used),

specify the KEY address, LED address, KEY image address, and LED image

address as follows:

3 YES X0000 YOOOO ROOOO ROOlO5.

(Note 2) Parameter 9 “Divisioninon-division method” is not available for PMCRC3.

1-159
