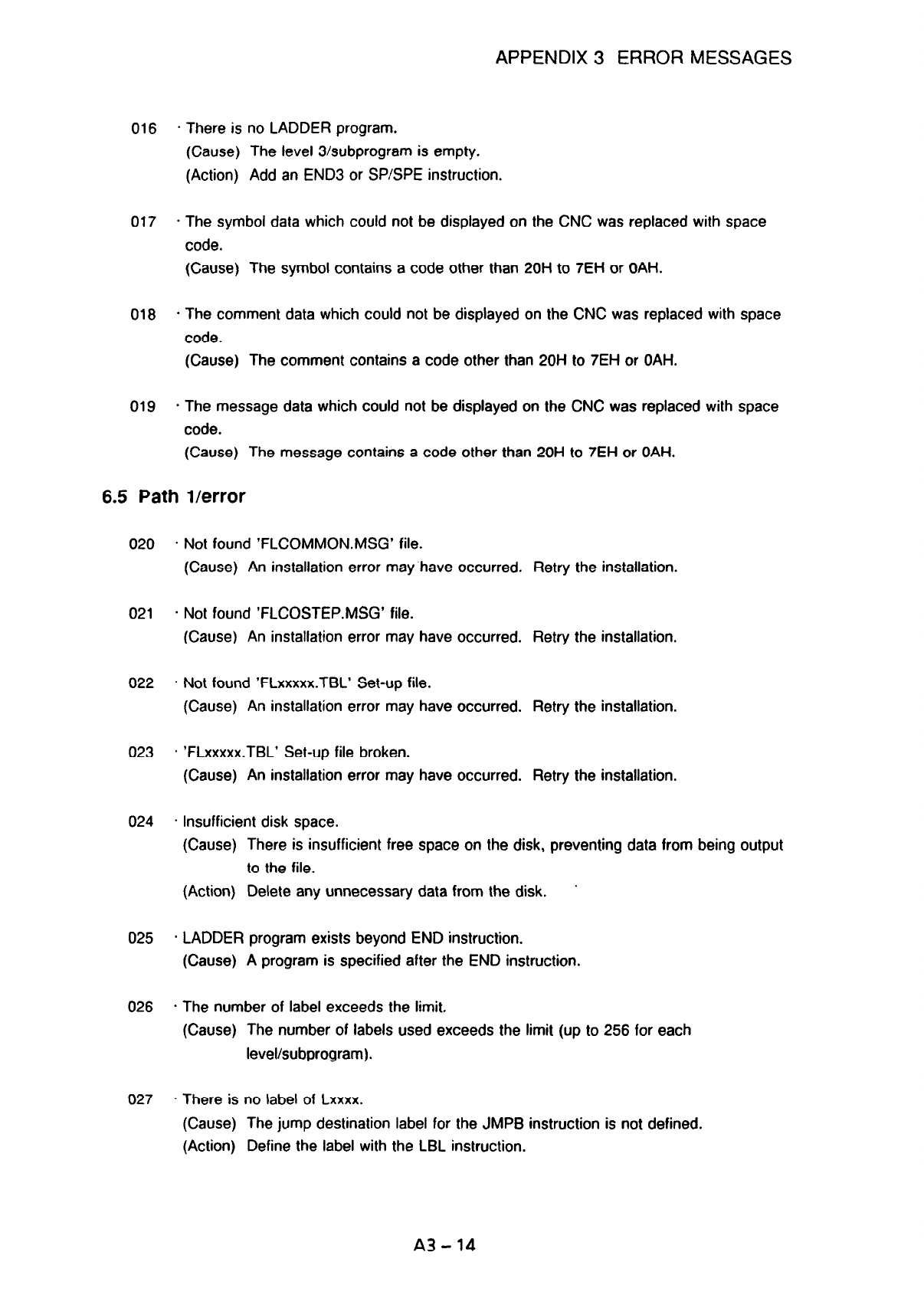

APPENDIX 3 ERROR MESSAGES

016

* There is no LADDER program.

(Cause) The level 3/subprogram is empty.

(Action) Add an END3 or SPSPE instruction.

017

- The symbol data which could not be displayed on the CNC was replaced with space

code.

(Cause) The symbol contains a code other than 20H to 7EH or OAH.

018

- The comment data which could not be displayed on the CNC was replaced with space

code.

(Cause) The comment contains a code other than 20H to 7EH or OAH.

019

* The message data which could not be displayed on the CNC was replaced with space

code.

(Cause) The message contains a code other than 20H to 7EH or OAH.

6.5 Path l/error

020

021

022

023

024

025

026

027

* Not found ‘FLCOMMON.MSG’ file.

(Cause) An installation error may have occurred. Retry the installation.

- Not found ‘FLCOSTEP.MSG’ file.

(Cause) An installation error may have occurred. Retry the installation.

- Not found ‘FLxxxxx.TBL’ Set-up file.

(Cause) An installation error may have occurred. Retry the installation.

* ‘FLxxxxx.TBL’ Set-up file broken.

(Cause) An installation error may have occurred. Retry the installation.

* Insufficient disk space.

(Cause) There is insufficient free space on the disk, preventing data from being output

to the file.

(Action) Delete any unnecessary data from the disk.

’

* LADDER program exists beyond END instruction.

(Cause) A program is specified after the END instruction.

* The number of label exceeds the limit.

(Cause) The number of labels used exceeds the limit (up to 256 for each

level/subprogram).

- There is no label of Lxxxx.

(Cause) The jump destination label for the JMPB instruction is not defined.

(Action) Define the label with the LBL instruction.

A3-14
