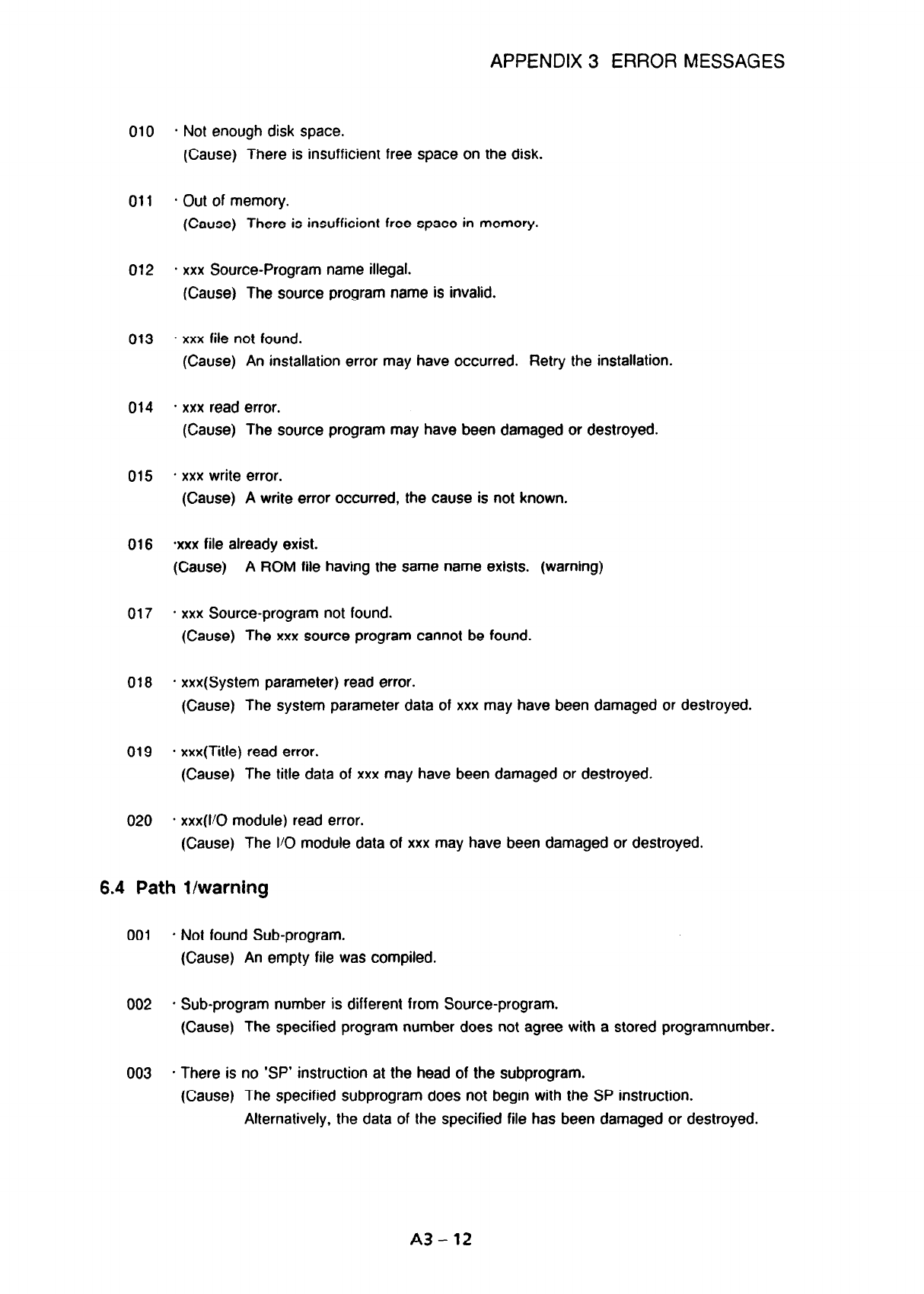

APPENDIX 3 ERROR MESSAGES

010

- Not enough disk space.

(Cause) There is insufficient free space on the disk.

011

- Out of memory.

(Cause) There is insufficient free space in memory.

012

* xxx Source-Program name illegal.

(Cause) The source program name is invalid.

013

- xxx file not found.

(Cause) An installation error may have occurred. Retry the installation.

014

* xxx read error.

(Cause) The source program may have been damaged or destroyed.

015

* xxx write error.

(Cause) A write error occurred, the cause is not known.

016

-xxx file already exist.

(Cause) A ROM file having the same name exists. (warning)

017

* xxx Source-program not found.

(Cause) The xxx source program cannot be found.

018

- xxx(System parameter) read error.

(Cause) The system parameter data of xxx may have been damaged or destroyed.

019

* xxx(Title) read error.

(Cause) The title data of xxx may have been damaged or destroyed.

020

* xxx(V0 module) read error.

(Cause) The I/O module data of xxx may have been damaged or destroyed.

6.4 Path l/warning

001

- Not found Sub-program.

(Cause) An empty file was compiled.

002

* Sub-program number is different from Source-program.

(Cause) The specified program number does not agree with a stored programnumber.

003

* There is no ‘SP’ instruction at the head of the subprogram.

(Cause) The specified subprogram does not begin with the SP instruction.

Alternatively, the data of the specified file has been damaged or destroyed.

A3-12
