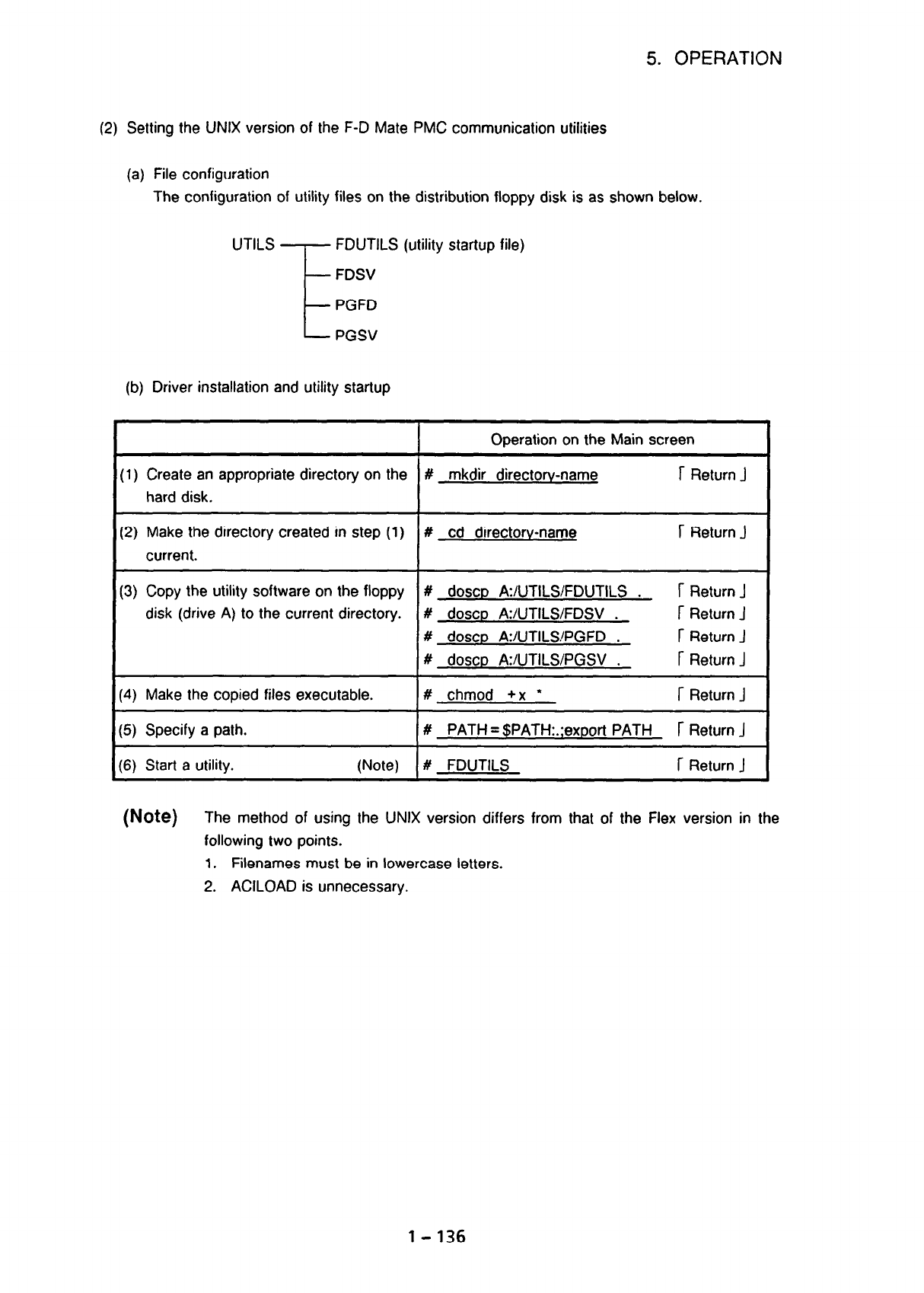

5. OPERATION

(2) Setting the UNIX version of the F-D Mate PMC communication utilities

(a) File configuration

The configuration of utility files on the distribution floppy disk is as shown below.

UTILS

FDUTILS (utility startup file)

FDSV

PGFD

PGSV

(b) Driver installation and utility startup

Operation on the Main screen

(1) Create an appropriate directory on the # mkdir directorv-name

hard disk.

r Return J

(2) Make the directory created in step (1)

# cd directorv-name r Return J

current.

(3) Copy the utility software on the floppy

# doscD A:IUTILS/FDUTILS . r Return J

disk (drive A) to the current directory.

# doscD A:/UTILS/FDSV . r Return J

# doscp AYUTILS’PGFD .

r Return J

# dosco AYUTILWPGSV .

r Return J

(4) Make the copied files executable.

# chmod +x *

r Return J

(5) Specify a path.

# PATH = $PATH:.;export PATH

r Return J

(6) Start a utility. (Note)

# FDUTILS r Return J

(Note)

The method of using the UNIX version differs from that of the Flex version in the

following two points.

1. Filenames must be in lowercase letters.

2. ACILOAD is unnecessary.

1-136
