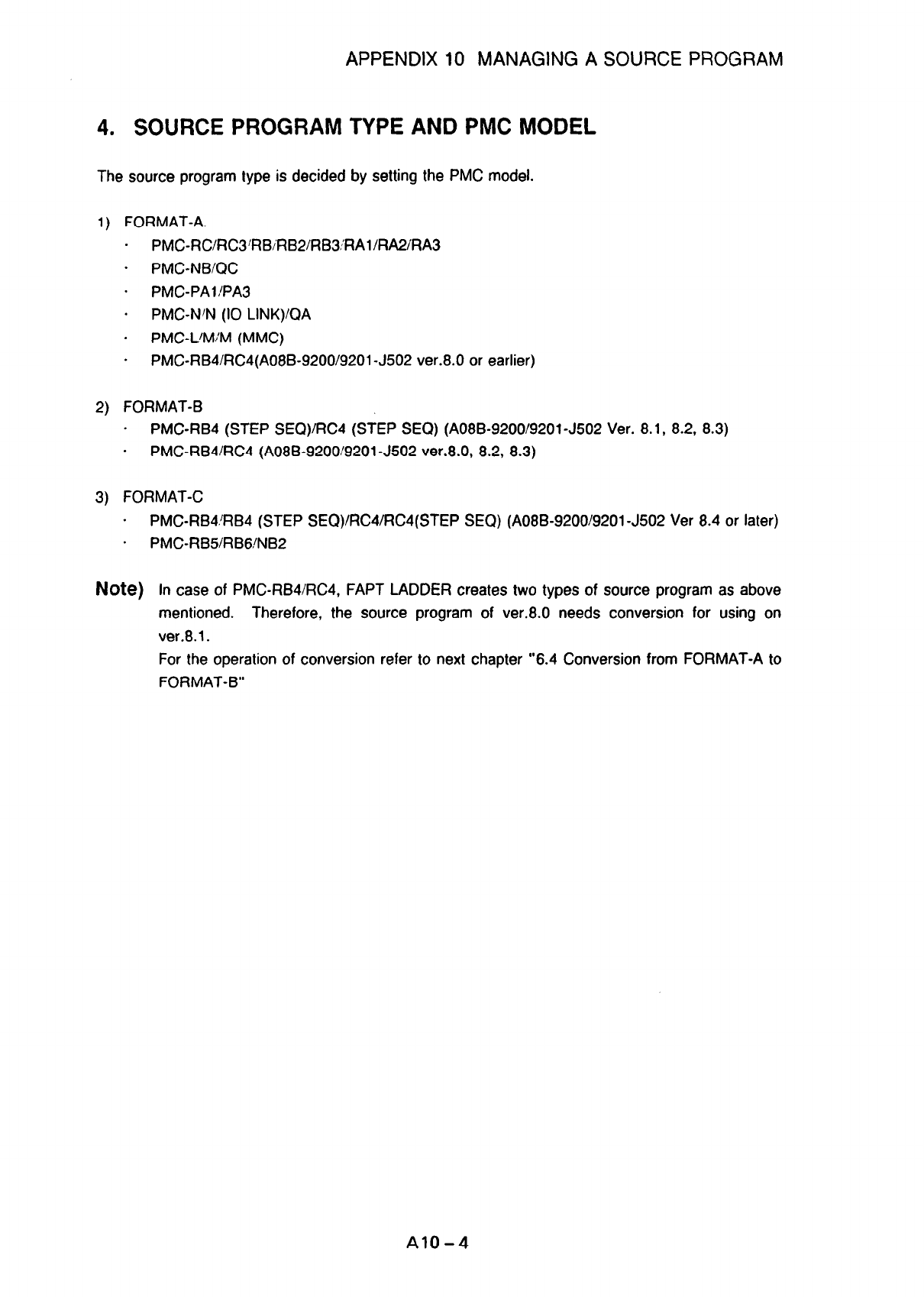

APPENDIX 10 MANAGING A SOURCE PROGRAM

4. SOURCE PROGRAM TYPE AND PMC MODEL

The source program type is decided by setting the PMC model.

1) FORMAT-A.

- PMCRC/RC3’RBiRB2/RB3.:RAl/RA2/RA3

- PMC-NBQC

* PMCPAl!PA3

* PMC-N’N (10 LINK)/QA

- PMC-L’MIM (MMC)

- PMC-RB4/RC4(A08B-9200/9201 -Jr502 ver.8.0 or earlier)

2) FORMAT-B

- PMCRB4 (STEP SEQ)/RC4 (STEP SEQ) (A08B-9200/9201-J502 Ver. 8.1, 8.2, 8.3)

- PMC-RB4/RC4 (A08B-9200!9201-J502 ver.8.0, 8.2, 8.3)

3) FORMAT-C

- PMCRB4.‘RB4 (STEP SEQ)IRCWRC4(STEP SEQ) (A08B-9200/9201-J502 Ver 8.4 or later)

* PMC-RBMRBG!NB2

Note) In case of PMCRBWRC4, FAPT LADDER creates two types of source program as above

mentioned. Therefore, the source program of ver.8.0 needs conversion for using on

ver.8.1.

For the operation of conversion refer to next chapter “6.4 Conversion from FORMAT-A to

FORMAT-B”
