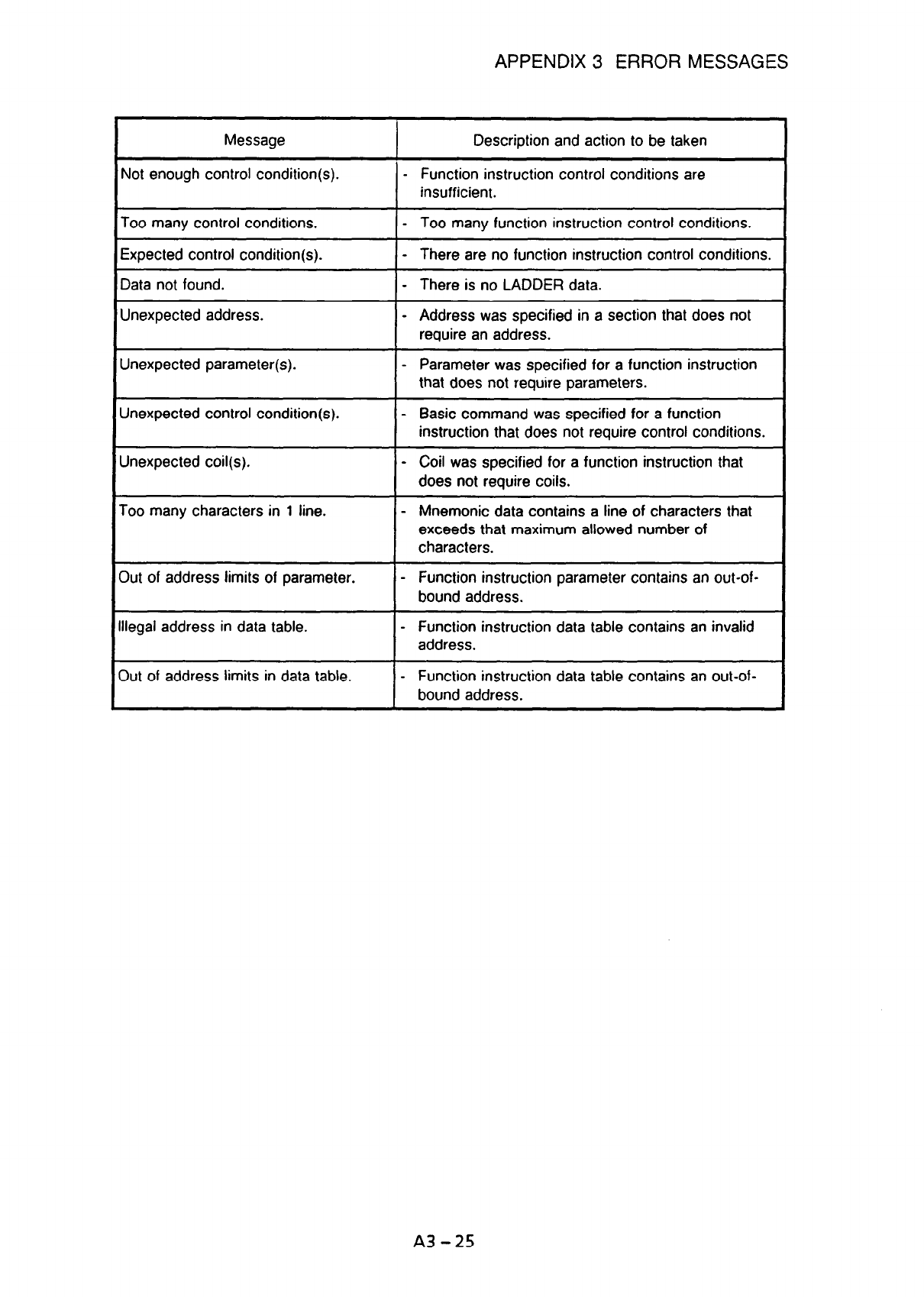

APPENDIX 3 ERROR MESSAGES

Message

Not enough control condition(s).

Description and action to be taken

- Function instruction control conditions are

insufficient.

Too many control conditions.

Expected control condition(s).

Data not found.

Unexpected address.

Unexpected parameter(s).

Unexpected control condition(s).

Unexpected coil(s).

Too many characters in 1 line.

- Too many function instruction control conditions.

- There are no function instruction control conditions.

- There is no LADDER data.

- Address was specified in a section that does not

require an address.

- Parameter was specified for a function instruction

that does not require parameters.

- Basic command was specified for a function

instruction that does not require control conditions.

- Coil was specified for a function instruction that

does not require coils.

- Mnemonic data contains a line of characters that

exceeds that maximum allowed number of

characters.

3ut of address limits of parameter.

- Function instruction parameter contains an out-of-

bound address.

llegal address in data table.

- Function instruction data table contains an invalid

address.

3ut of address limits in data table.

- Function instruction data table contains an out-of-

bound address.

A3-25
