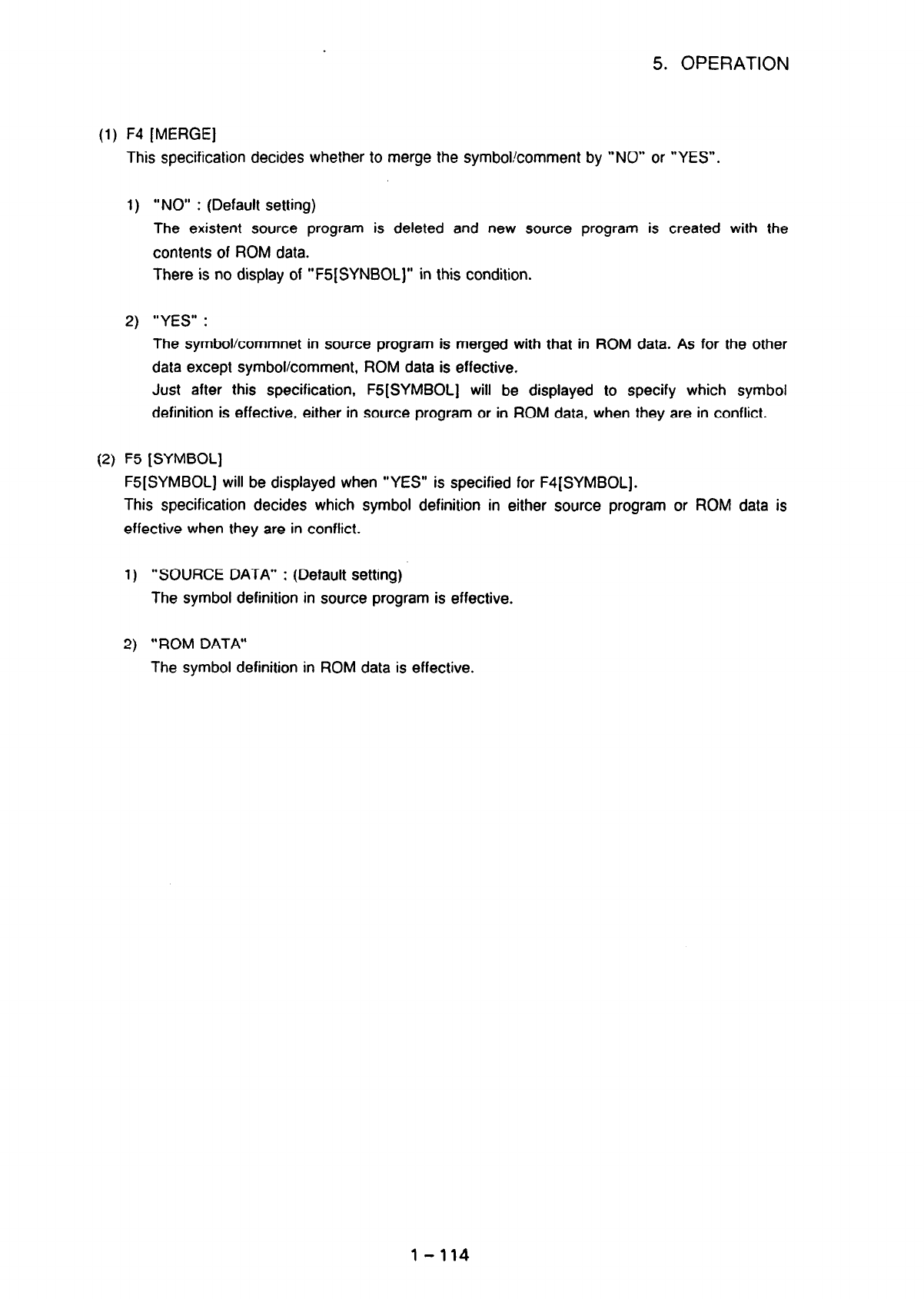

5. OPERATION

(1)

(2)

F4 [MERGE]

This specification decides whether to merge the symbol/comment by “NO” or “YES”.

“NO” : (Default setting)

The existent source program is deleted and new source program is created with the

contents of ROM data.

There is no display of “F5[SYNBOL)” in this condition.

“YES” :

The symbolkommnet in source program is merged with that in ROM data. As for the other

data except symbol/comment, ROM data is effective.

Just after this specification, F5[SYMBOL] will be displayed to specify which symbol

definition is effective, either in source program or in ROM data, when they are in conflict.

F5 [SYMBOL]

F5[SYMBOL] will be displayed when “YES” is specified for F4[SYMBOL].

This specification decides which symbol definition in either source program or ROM data is

effective when they are in conflict.

1) “SOURCE DATA” : (Default setting)

The symbol definition in source program is effective.

2) “ROM DATA”

The symbol definition in ROM data is effective.

l-114
