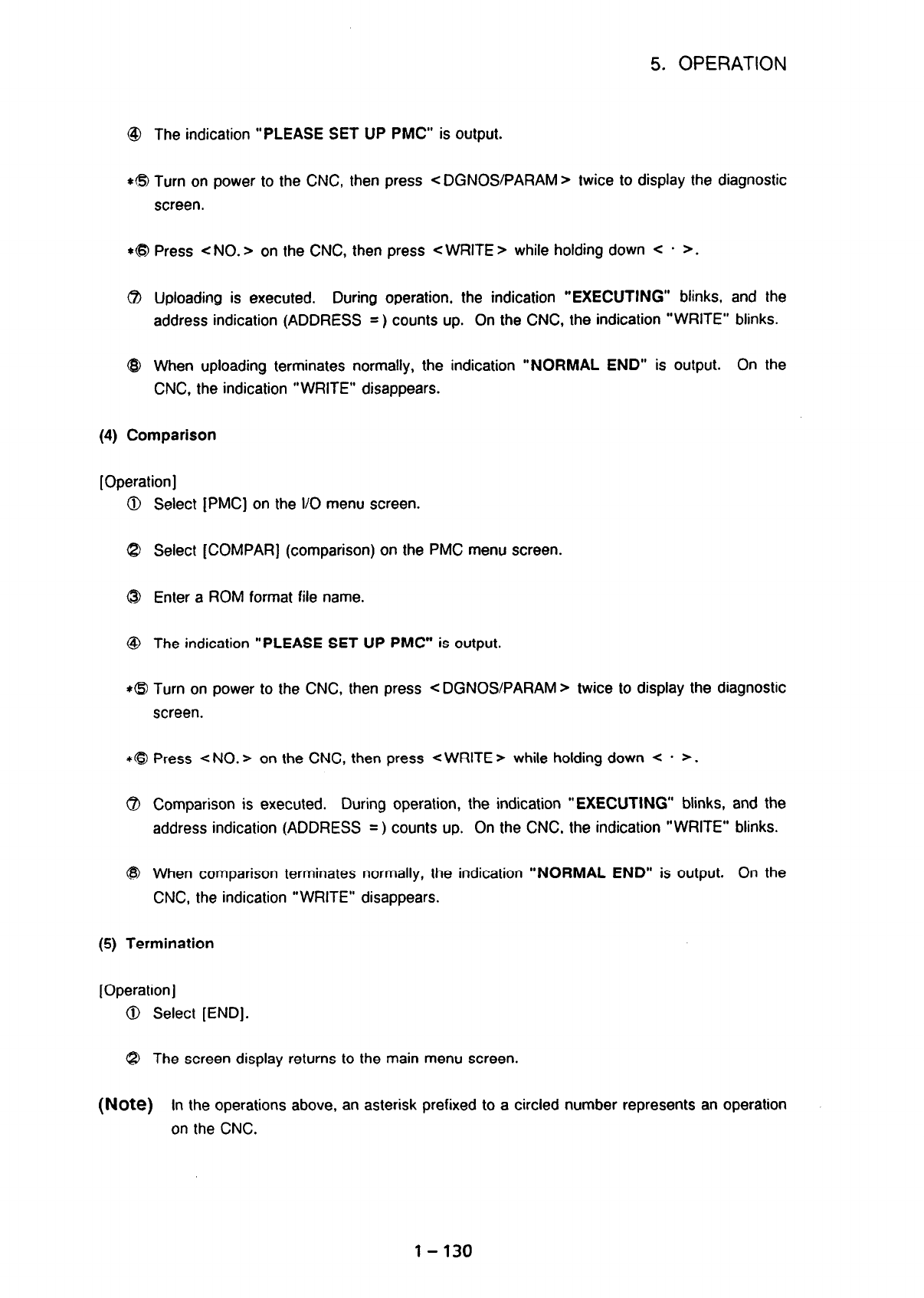

5. OPERATION

@I The indication “PLEASE SET UP PMC” is output.

*8 Turn on power to the CNC, then press < DGNOSIPARAM > twice to display the diagnostic

screen.

*@3 Press <NO. > on the CNC, then press <WRITE> while holding down < * >.

(?I Uploading is executed.

During operation, the indication “EXECUTING” blinks, and the

address indication (ADDRESS =) counts up. On the CNC, the indication “WRITE” blinks.

@ When uploading terminates normally, the indication “NORMAL END” is output. On the

CNC, the indication “WRITE” disappears.

(4) Comparison

[Operation]

0 Select ]PMC) on the I/O menu screen.

8 Select [COMPARJ (comparison) on the PMC menu screen.

@ Enter a ROM format file name.

@I The indication “PLEASE SET UP PMC” is output.

*@ Turn on power to the CNC, then press < DGNOSPARAM > twice to display the diagnostic

screen.

*Q Press <NO. > on the CNC, then press C WRITE> while holding down < ’ >-

8 Comparison is executed.

During operation, the indication “EXECUTING” blinks, and the

address indication (ADDRESS =) counts up. On the CNC, the indication “WRITE” blinks.

@I When comparison terminates normally, the indication “NORMAL END” is output. On the

CNC, the indication “WRITE” disappears.

(5) Termination

[Operation]

0 Select [END].

8 The screen display returns to the main menu screen.

(Note) In the operations above, an asterisk prefixed to a circled number represents an operation

on the CNC.
