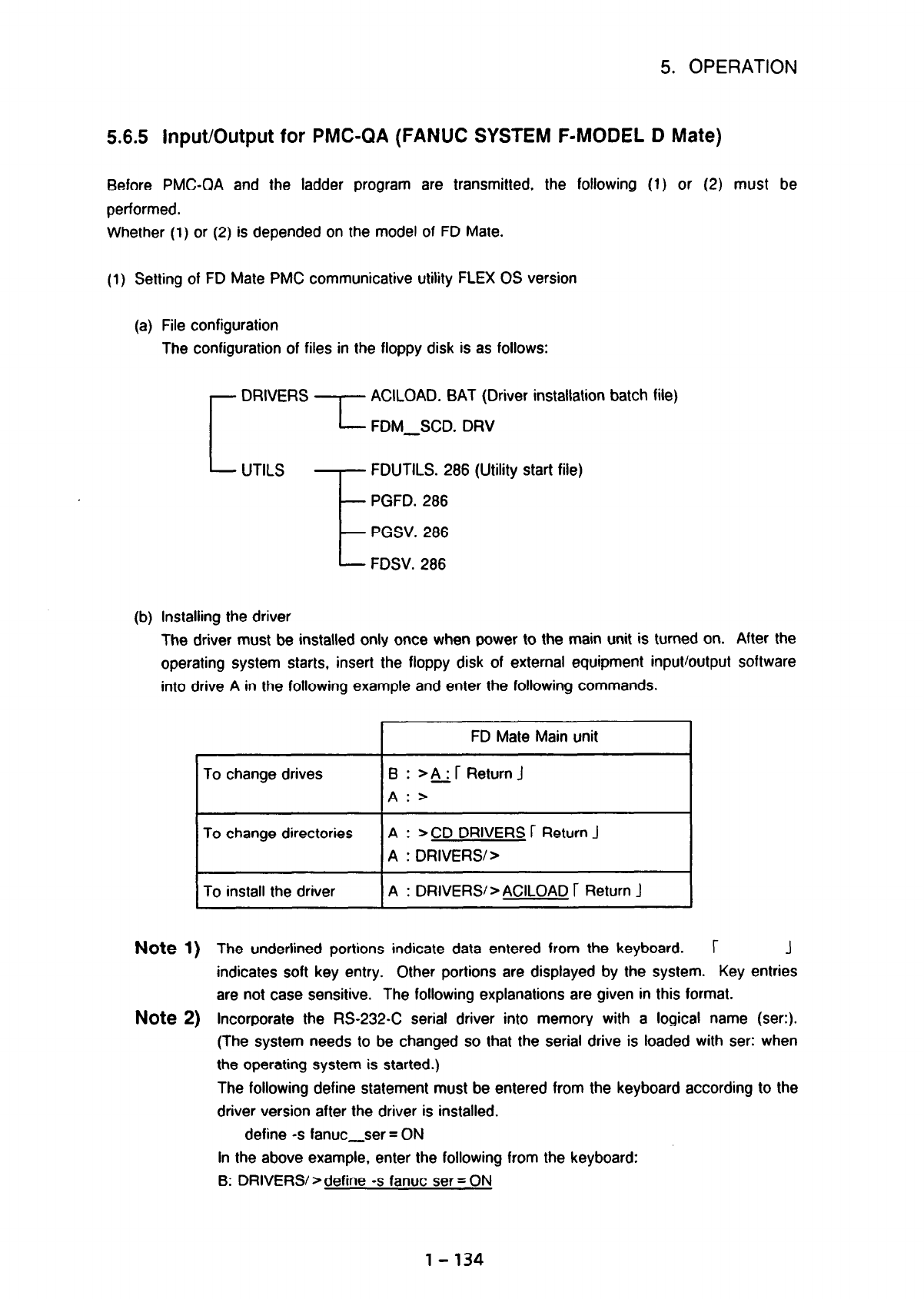

5. OPERATION

5.6.5 Input/Output for PMC-QA (FANUC SYSTEM F-MODEL D Mate)

Before PMC-CA and the ladder program are transmitted, the following (1) or (2) must be

performed.

Whether (1) or (2) is depended on the model of FD Mate.

(1) Setting of FD Mate PMC communicative utility FLEX OS version

(a) File configuration

The configuration of files in the floppy disk is as follows:

DRIVERS

--c

ACILOAD. BAT (Driver installation batch file)

FDM_SCD. DRV

UTILS

FDUTILS. 286 (Utility start file)

PGFD. 286

PGSV. 286

FDSV. 286

(b) Installing the driver

The driver must be installed only once when power to the main unit is turned on. After the

operating system starts, insert the floppy disk of external equipment input/output software

into drive A in the following example and enter the following commands.

To change drives

To change directories

To install the driver A : DRIVERS > ACILOAD r Return J

FD Mate Main unit

6 : >A-rReturnJ

A:>

A : >CD DRIVERS r Return J

A : DRIVERS/>

Note 1) The underlined portions indicate data entered from the keyboard.

indicates soft key entry. Other portions are displayed by the system. Key entries

are not case sensitive. The following explanations are given in this format.

Note 2) Incorporate the RS-232-C serial driver into memory with a logical name (ser:).

(The system needs to be changed so that the serial drive is loaded with ser: when

the operating system is started.)

The following define statement must be entered from the keyboard according to the

driver version after the driver is installed.

define -s fanuc_ser = ON

In the above example, enter the following from the keyboard:

B: DRIVERS > define -s fanuc ser = ON

1-134
