FAPT Ladder for PC Operators manual Page 140

Operators manual

Page of 311

/ 311

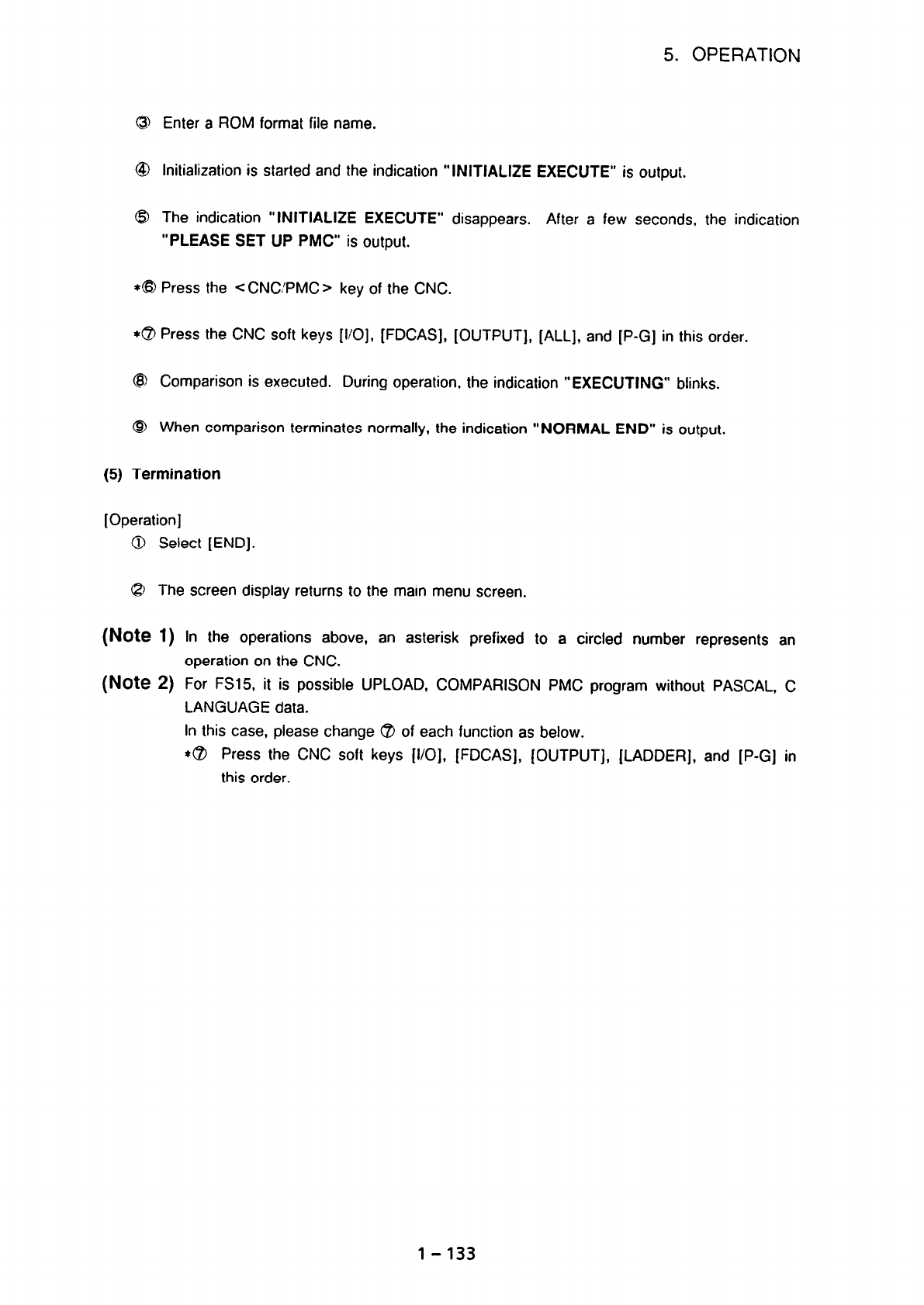

5. OPERATION

0 Enter a ROM format file name.

@ Initialization is started and the indication “INITIALIZE EXECUTE” is output.

0 The indication “INITIALIZE EXECUTE” disappears.

After a few seconds, the indication

“PLEASE SET UP PMC” is output.

*!I3 Press the < CNC’PMC > key of the CNC.

*@ Press the CNC soft keys [l/O], [FDCAS], [OUTPUT], [ALL], and [P-G] in this order.

@ Comparison iS executed. During operation, the indication “EXECIJTING” blinks.

@I When comparison terminates normally, the indication “NORMAL END” is output.

(5) Termination

[Operation]

0 Select [END].

8 The screen display returns to the main menu screen.

(Note 1) In the operations above,

an asterisk prefixed to a circled number represents an

operation on the CNC.

(Note 2) For FS15, it is possible UPLOAD, COMPARISON PMC program without PASCAL, C

LANGUAGE data.

In this case, please change (3 of each function as below.

*@I Press the CNC soft keys [l/O], [FDCAS], [OUTPUT], [LADDER], and [P-G] in

this order.

1-133
