5. OPERATION

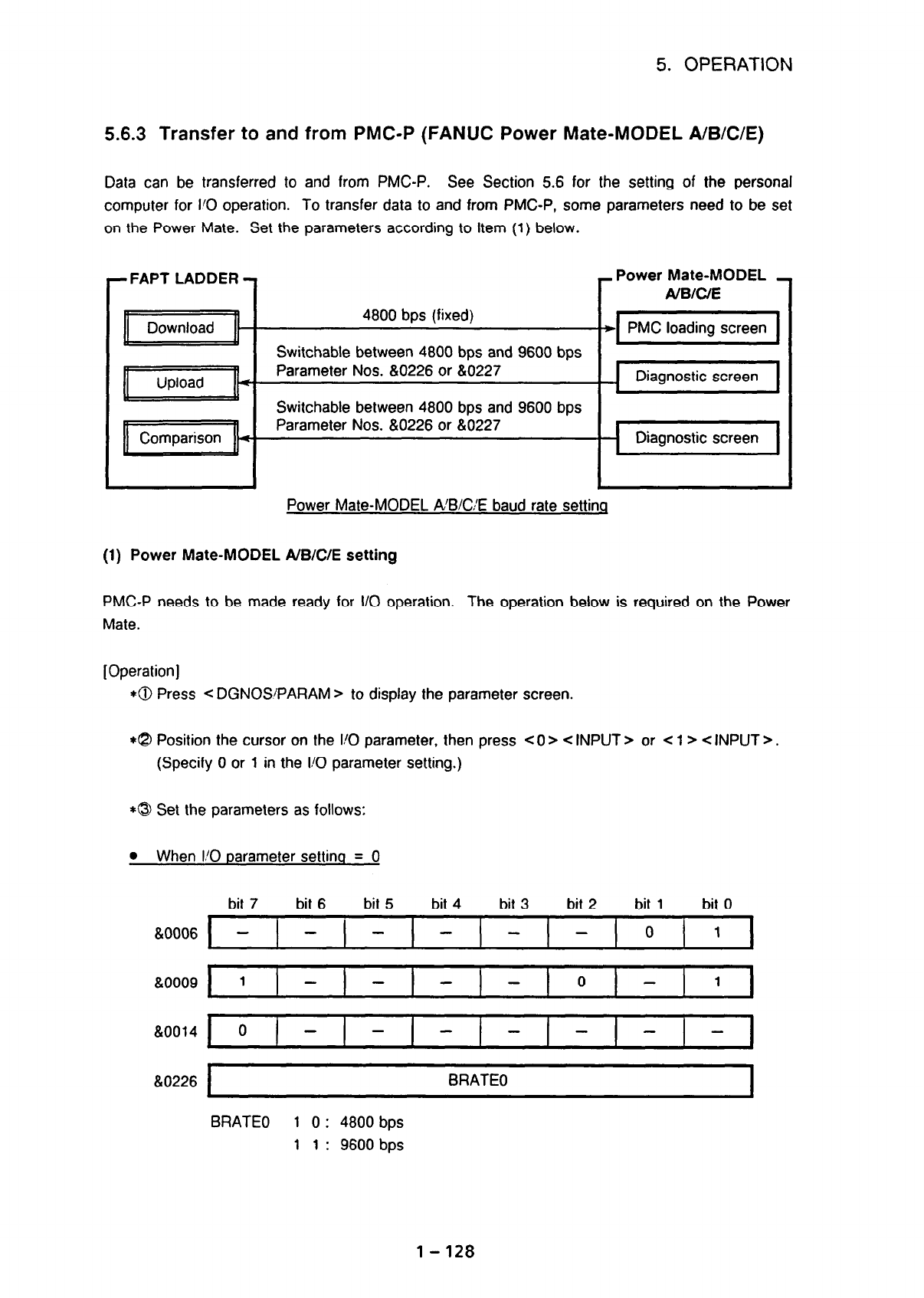

5.6.3 Transfer to and from PMC-P (FANUC Power Mate-MODEL A/B/C/E)

Data can be transferred to and from PMC-P. See Section 5.6 for the setting of the personal

computer for 1’0 operation.

To transfer data to and from PMC-P, some parameters need to be set

on the Power Mate. Set the parameters according to Item (1) below.

- FAPT LADDER

1 Download //

1 Upload 1

11 Comparison It

4800 bps (fixed)

Switchable between 4800 bps and 9600 bps

Parameter Nos. &0226 or &0227

Switchable between 4800 bps and 9600 bps

Parameter Nos. &0226 or &0227

(1) Power Mate-MODEL

A/B/C/E setting

Power Mate-MODEL A’BIC’E baud rate setting

. Power Mate-MODEL _

A/B/C/E

PMC loading

screen

J Diagnostic screen 1

4 Diagnostic screen 1

PMC-P needs to be made ready for 110 operation. The operation below is required on the Power

Mate.

[Operation ]

$0 Press < DGNOSPARAM > to display the parameter screen.

*a Position the cursor on the I!0 parameter, then press < 0 > < INPUT > or < 1 > <INPUT > .

(Specify 0 or 1 in the I!0 parameter setting.)

*O Set the parameters as follows:

l When I!0 parameter settinq = 0

bit 7 bit 6 bit 5 bit 4 bit 3

bit 2 bit 1 bit 0

&0006

&0009

&0014

&0226

I-I-I-I-I-I-lOIll

1 _ _ - -

0 - 1

0 _ - _ - - - -

I I I I I

I I I

BRATEO

BRATEO 1 0: 4800 bps

1 1 : 9600 bps

1-128
