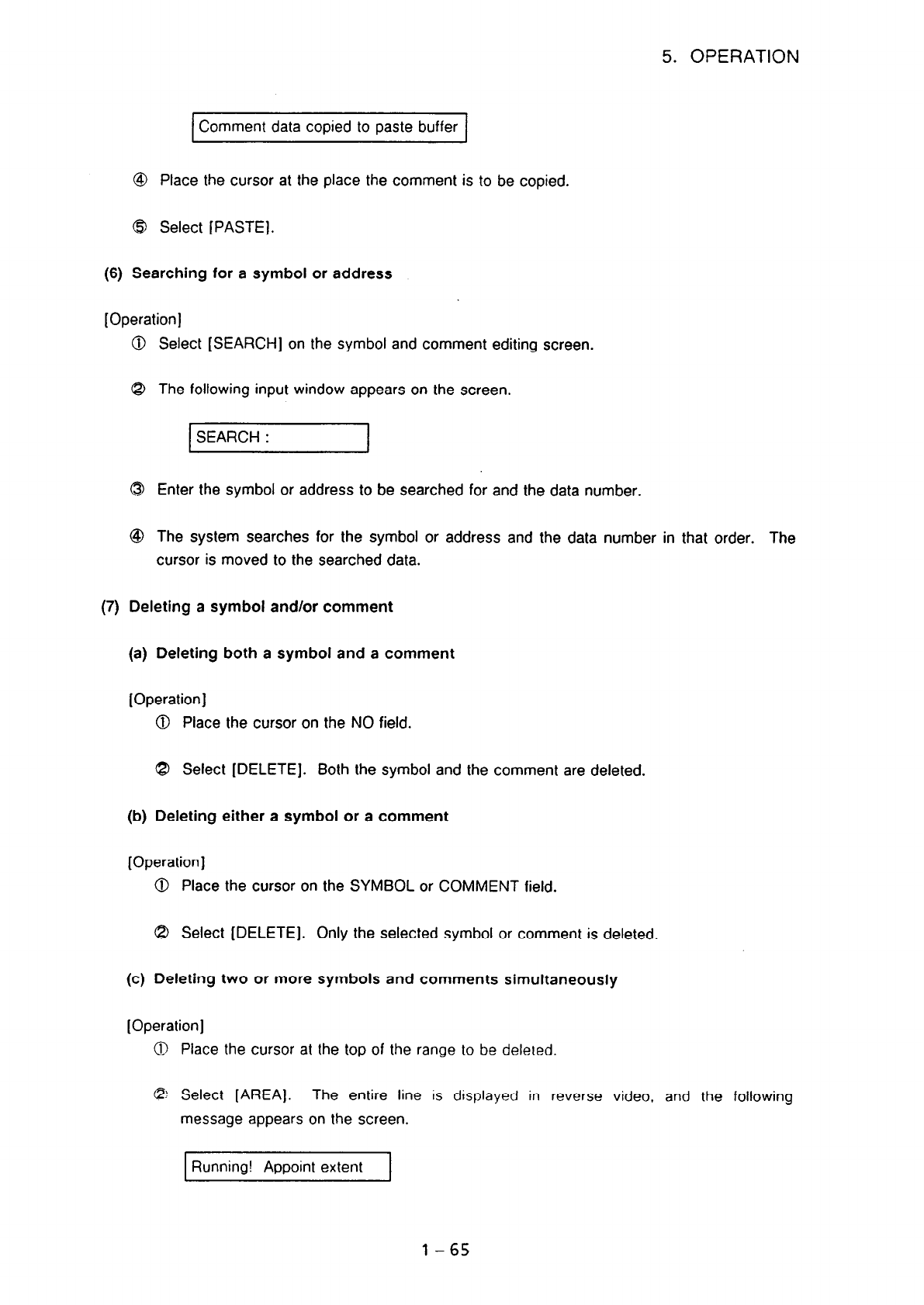

5. OPERATION

1 Comment data copied to paste buffer 1

@ Place the cursor at the place the comment is to be copied.

8 Select [PASTE].

(6) Searching for a symbol or address

[Operation]

@ Select [SEARCH] on the symbol and comment editing screen.

8 The following input window appears on the screen.

SEARCH :

0 Enter the symbol or address to be searched for and the data number.

@ The system searches for the symbol or address and the data number in that order. The

cursor is moved to the searched data.

(7) Deleting a symbol and/or comment

(a) Deleting both a symbol and a comment

[Operation]

0 Place the cursor on the NO field.

C3 Select [DELETE]. Both the symbol and the comment are deleted.

(b) Deleting either a symbol or a comment

[Operation]

Place the cursor on the SYMBOL or COMMENT field.

8 Select [DELETE]. Only the selected symbol or comment is deleted.

[Operation]

0 Place the cursor at the top of the range to be deleted.

(2 Select [AREA].

The entire line is displayed in reverse video, and the following

message appears on the screen.

Running! Appoint extent

1-65
