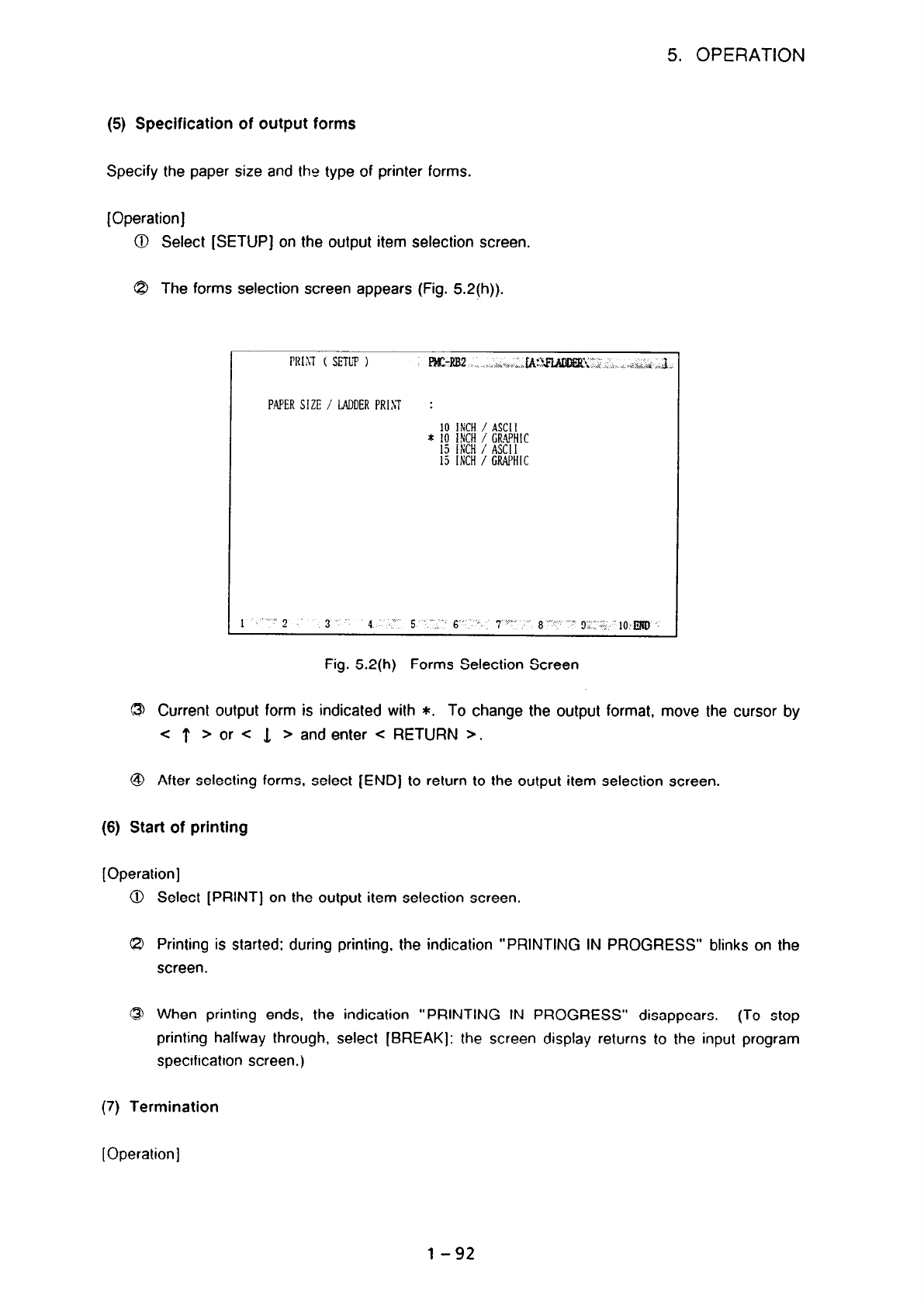

5. OPERATION

(5) Specification of output forms

Specify the paper size and the type of printer forms.

[Operation ]

0 Select [SETUP] on the output item selection screen.

@ The forms selection screen appears (Fig. 5.2(h)).

P!P\PER SIZE / LADDER PRIST

10 INCH /

ASCII

* 10 PiCH /

GRAPHIC

15 INCH /

ASCII

15 IKCH /

GRAPHIC

Fig. 5.2(h) Forms Selection Screen

0 Current output form is indicated with *. To change the output format, move the cursor by

< t >orc J >andenter<RETURN>.

@I After selecting forms, select [END) to return to the output item selection screen.

(6) Start of printing

[Operation]

Select [PRINT] on the output item selection screen.

Printing is started: during printing, the indication “PRINTING IN PROGRESS” blinks on the

screen.

When printing ends, the indication

“PRINTING IN PROGRESS” disappears. (To stop

printing halfway through, select [BREAK]: the screen display returns to the input program

specification screen.)

(7) Termination

[Operation]

l-92
