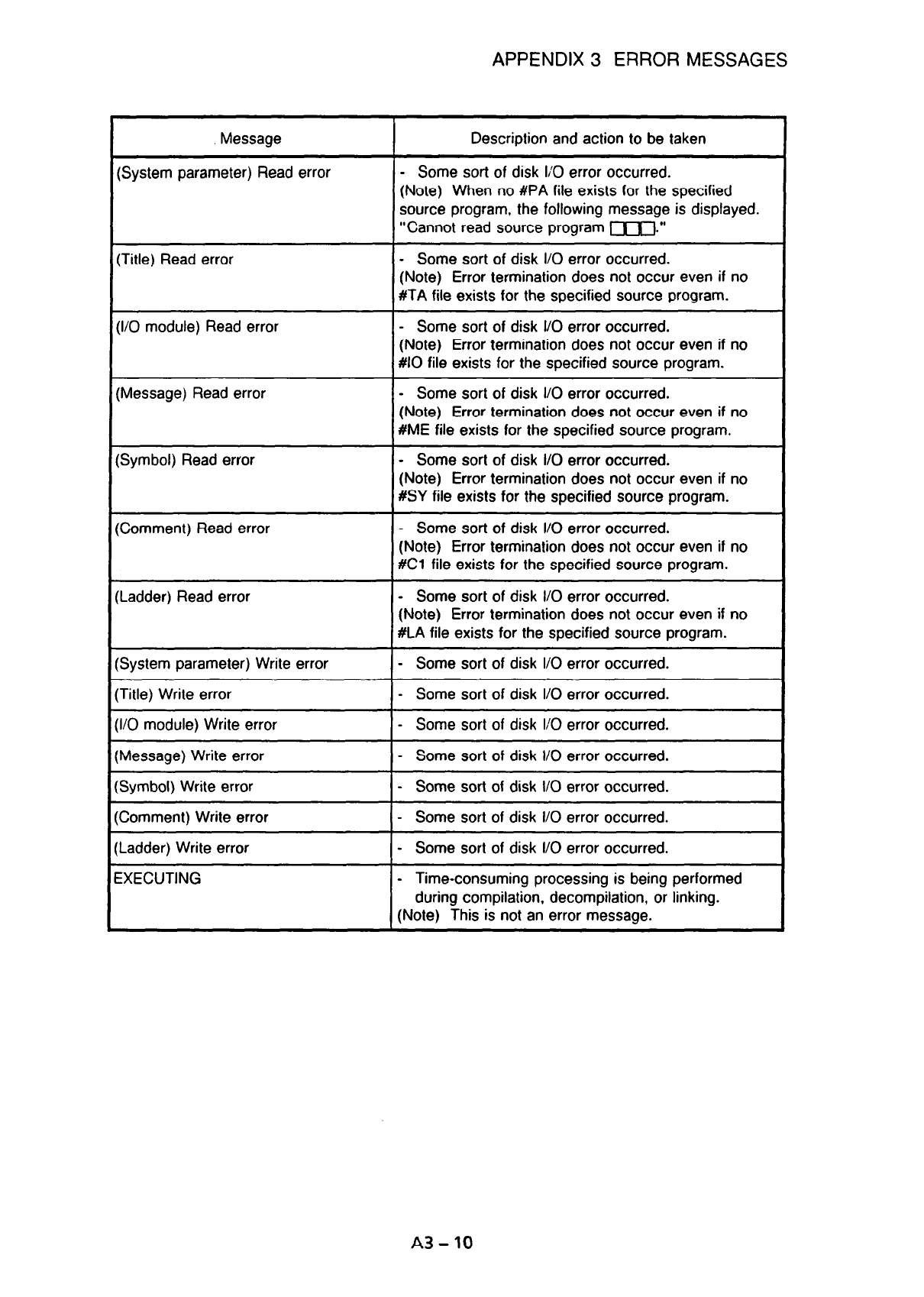

APPENDIX 3 ERROR MESSAGES

Message

(System parameter) Read error

Description and action to be taken

- Some sort of disk I/O error occurred.

(Note) When no #PA file exists for the specified

source program, the following message is displayed.

“Cannot read source program j-l-j-\.”

(Title) Read error

(I/O module) Read error

(Message) Read error

Symbol) Read error

Comment) Read error

- Some sort of disk I/O error occurred.

(Note) Error termination does not occur even if no

#TA file exists for the specified source program.

- Some sort of disk I/O error occurred.

(Note) Error termination does not occur even if no

#IO file exists for the specified source program.

- Some sort of disk I/O error occurred.

(Note) Error termination does not occur even if no

#ME file exists for the specified source program.

- Some sort of disk I/O error occurred.

(Note) Error termination does not occur even if no

#SY file exists for the specified source program.

- Some sort of disk I/O error occurred.

(Note) Error termination does not occur even if no

#Cl file exists for the specified source program.

:Ladder) Read error

‘System parameter) Write error

:Title) Write error

‘I/O module) Write error

Message) Write error

Symbol) Write error

Comment) Write error

Ladder) Write error

EXECUTING

- Some sort of disk I/O error occurred.

(Note) Error termination does not occur even if no

#LA file exists for the specified source program.

- Some sort of disk I/O error occurred.

- Some sort of disk t/O error occurred.

- Some sort of disk I/O error occurred.

- Time-consuming processing is being performed

during compilation, decompilation, or linking.

(Note) This is not an error message.

A3-10
