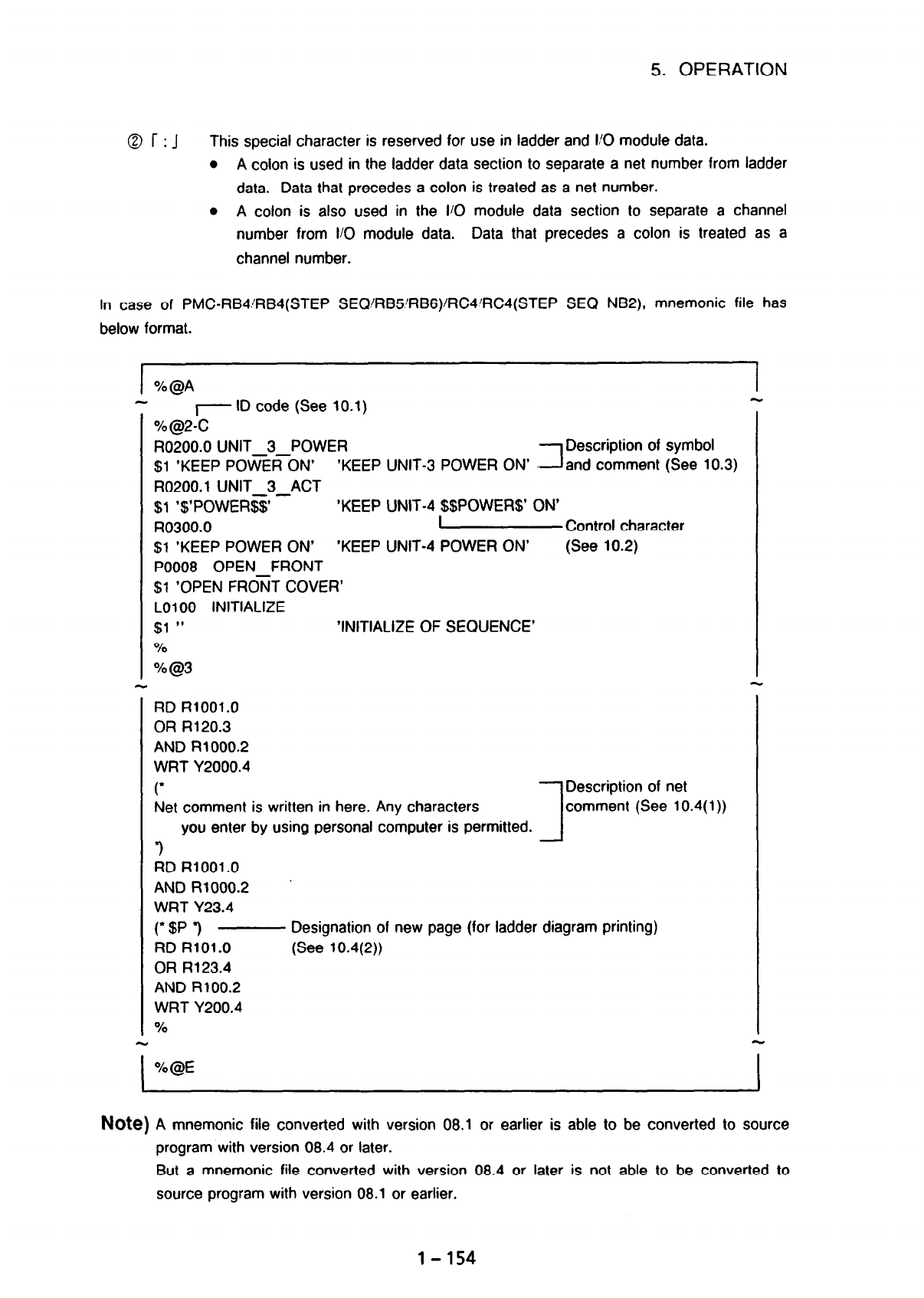

5. OPERATION

0 r:j

This special character is reserved for use in ladder and I/O module data.

l A coton is used in the ladder data section to separate a net number from ladder

data. Data that precedes a colon is treated as a net number.

l A colon is also used in the I/O module data section to separate a channel

number from 110 module data. Data that precedes a colon is treated as a

channel number.

In case of PMCRB4!RB4(STEP SEQ/RB5.!RBG)/RC4’RC4(STEP

below format.

SEQ NB2), mnemonic file has

%@A

r ID code (See 10.1)

%@2-c

R0200.0 UNIT 3 POWER

Description of symbol

$1 ‘KEEP POWk?-ON’

‘KEEP UNIT-3 POWER ON’

and comment (See 10.3)

R0200.1 UNIT 3 ACT

$1 ‘S’POWER$$’ -

‘KEEP UNIT-4 $$POWER$’ ON’

R0300.0

- Control character

$1 ‘KEEP POWER ON’

‘KEEP UNIT-4 POWER ON’

(See 10.2)

PO008 OPEN FRONT

$1 ‘OPEN FRONT COVER’

LO1 00 INITIALIZE

$1 ”

‘INITIALIZE OF SEQUENCE’

% @3

RD R1OO1.O

OR R120.3

AND R1000.2

WRT Y2000.4

(’

Net comment is written in here. Any characters

you enter by using personal computer is permitted.

Description of net

comment (See 10.4(l))

RD R1OO1.O

AND R1000.2

WRT Y23.4

(*SP 3

Designation of new page (for ladder diagram printing)

RD R1O1.O

(See 10.4(2))

OR R123.4

AND R100.2

WRT Y200.4

‘y

% @E

Note) A mnemonic file converted with version 08.1 or earlier is able to be converted to source

program with version 08.4 or later.

But a mnemonic file converted with version 08.4 or later is not able to be converted to

source program with version 08.1 or earlier.

1-154
