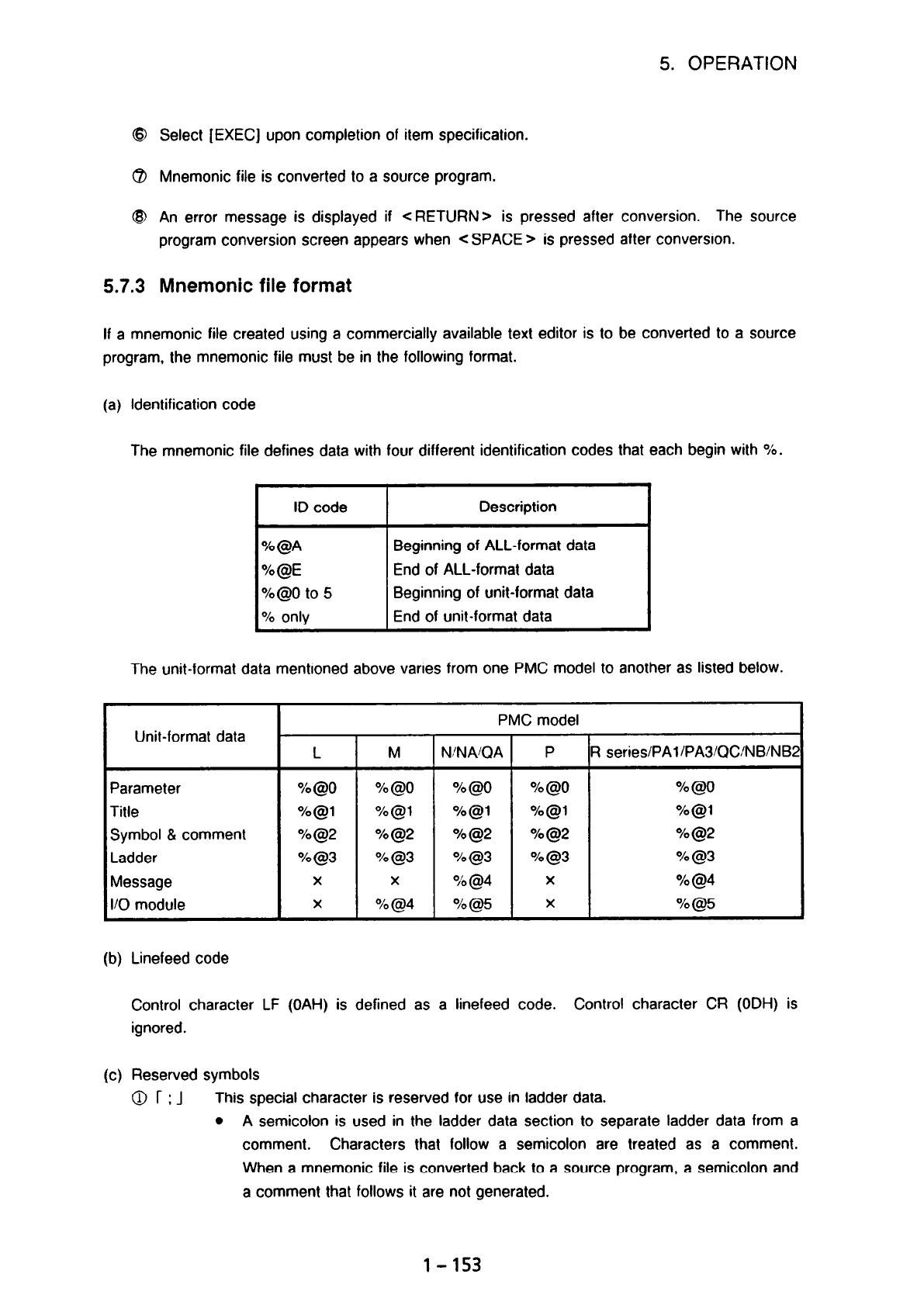

5. OPERATION

@ Select [EXEC] upon completion of item specification.

(?J Mnemonic file is converted to a source program.

@ An error message is displayed if c RETURN > is pressed after conversion. The source

program conversion screen appears when < SPACE > is pressed after conversion.

5.7.3 Mnemonic file format

If a mnemonic file created using a commercially available text editor is to be converted to a source

program, the mnemonic file must be in the following format.

(a) Identification code

The mnemonic file defines data with four different identification codes that each begin with %.

ID code Description

O/o @A Beginning of ALL-format data

%@E End of ALL-format data

%@O to 5

Beginning of unit-format data

% only End of unit-format data

The unit-format data mentioned above varies from one PMC model to another as listed below.

Unit-format data

PMC model

M N!NAKIA P

Parameter

Title

Symbol & comment

Ladder

Message

l/O module

%@O

~ %@l

%@2

O/o @3

TO@0

%@l

%@2

“/0@3

%@4

% @O

%@l

% @2

O/o @3

%@4

% @5

% @O

%@l

%@2

%@3

(b)

Linefeed code

Control character LF (OAH) is defined as a linefeed code. Control character CR (ODH) is

ignored.

(c)

Reserved symbols

0 r;J

This special character is reserved for use in ladder data.

l A semicolon is used in the ladder data section to separate ladder data from a

comment. Characters that follow a semicolon are treated as a comment.

When a mnemonic file is converted back to a source program, a semicolon and

a comment that follows it are not generated.

I series/PAl/PA3/QC/NB/NB:

% @O

%@l

% @2

% @3

% @4

O/o @5

1-153
