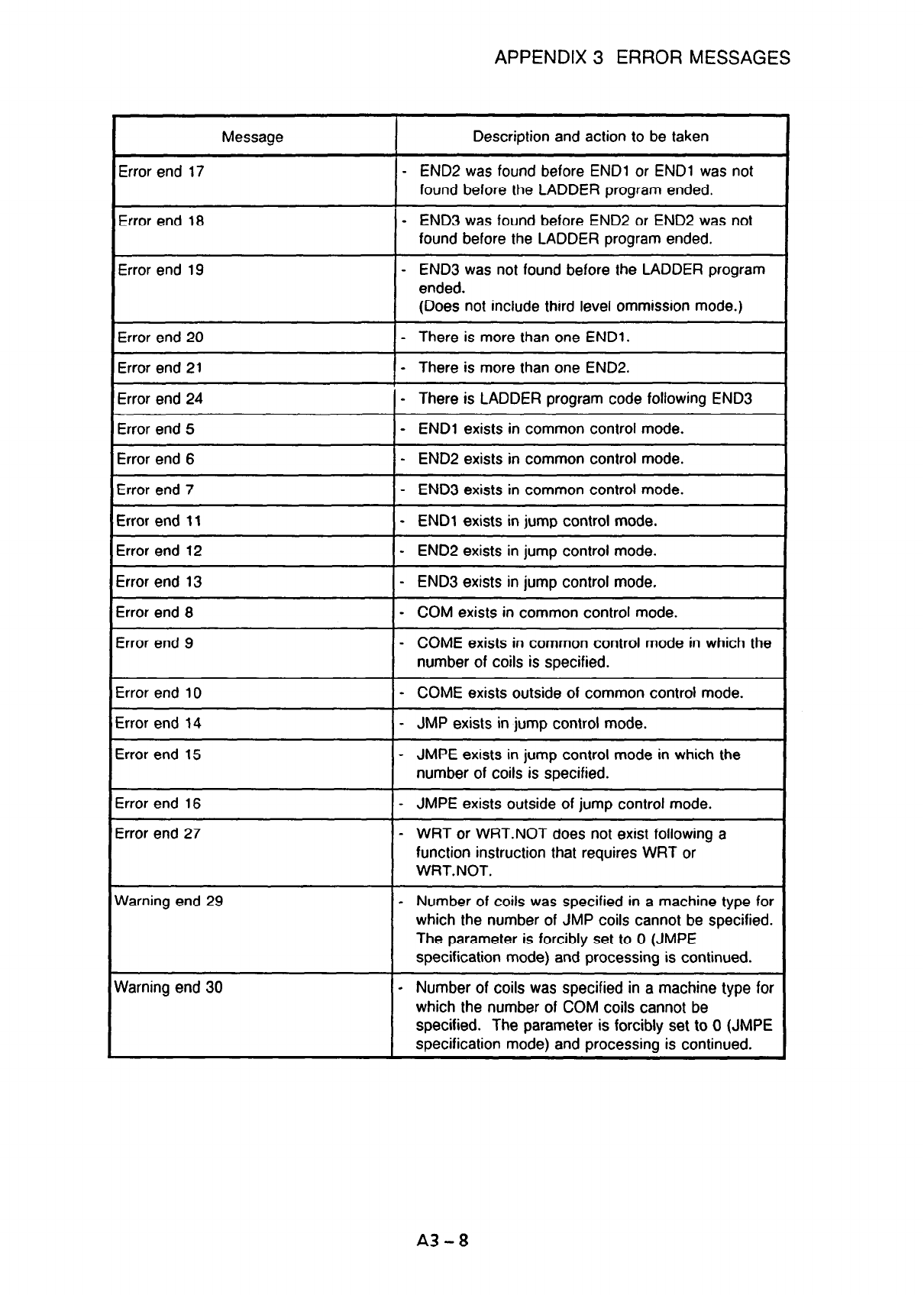

APPENDIX 3 ERROR MESSAGES

Message

Description and action to be taken

Error end 17

- END2 was found before END1 or END1 was not

found before the LADDER program ended.

Error end 18

- END3 was found before END2 or END2 was not

found before the LADDER program ended.

Error end 19

- END3 was not found before the LADDER program

ended.

Error end 20

Error end 21

Error end 24

Error end 5

Error end 6

Error end 7

Error end 11

Error end 12

Error end 13

Error end 8

Error end 9

Error end 10

Error end 14

Error end 15

Error end 16

Error end 27

(Does not include third level ommission mode.)

- There is more than one ENDl.

- There is more than one END2.

- There is LADDER program code following END3

- END1 exists in common control mode.

- END2 exists in common control mode.

- END3 exists in common control mode.

- END1 exists in jump control mode.

- END2 exists in jump control mode.

- END3 exists in jump control mode.

- COM exists in common control mode.

- COME exists in common control mode in which the

number of coils is specified.

- COME exists outside of common control mode.

- JMP exists in jump control mode.

- JMPE exists in jump control mode in which the

number of coils is specified.

- JMPE exists outside of jump control mode.

- WRT or WRT.NOT does not exist following a

function instruction that requires WRT or

WRT.NOT.

Uarning end 29

- Number of coils was specified in a machine type for

which the number of JMP coils cannot be specified.

The parameter is forcibly set to 0 (JMPE

specification mode) and processing is continued.

Narning end 30

- Number of coils was specified in a machine type for

which the number of COM coils cannot be

specified. The parameter is forcibly set to 0 (JMPE

specification mode) and processing is continued.

A3-8
