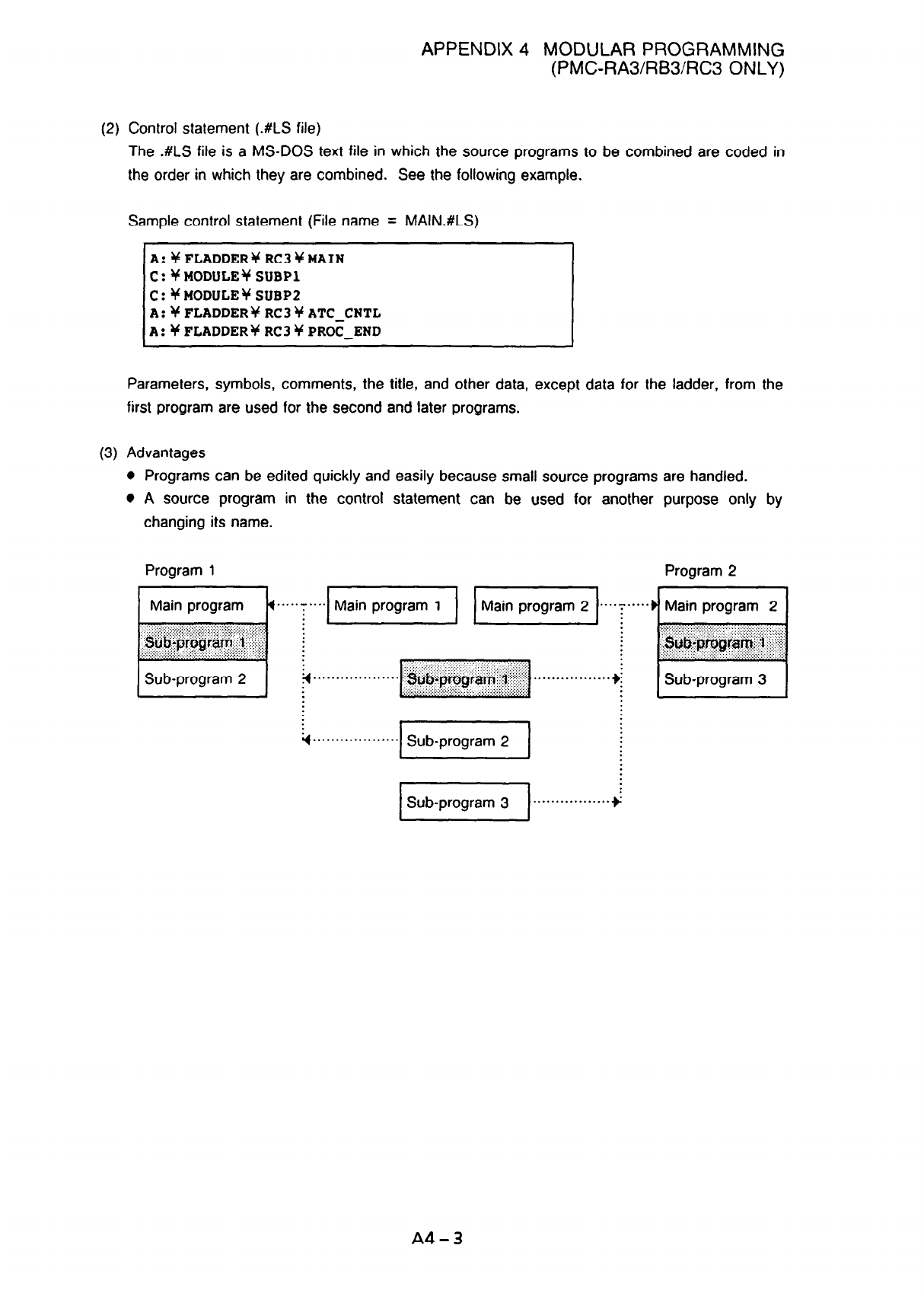

Control statement (.#LS file)

The .#LS file is a MS-DOS text file in which the source programs to be combined are coded in

the order in which they are combined. See the following example.

Sample control statement (File name = MAIN.#LS)

Parameters, symbols, comments, the title, and other data, except data for the ladder, from the

first program are used for the second and later programs.

(3)

Advantages

APPENDIX 4 MODULAR PROGRAMMING

(PMC-RA3/RB3/RC3 ONLY)

0 Programs can be edited quickly and easily because small source programs are handled.

0 A source program in the control statement can be used for another purpose only by

changing its name.

Program 1

Program 2

ESub-program . . . . . . . . . . . . . . . . . .

A4-3
