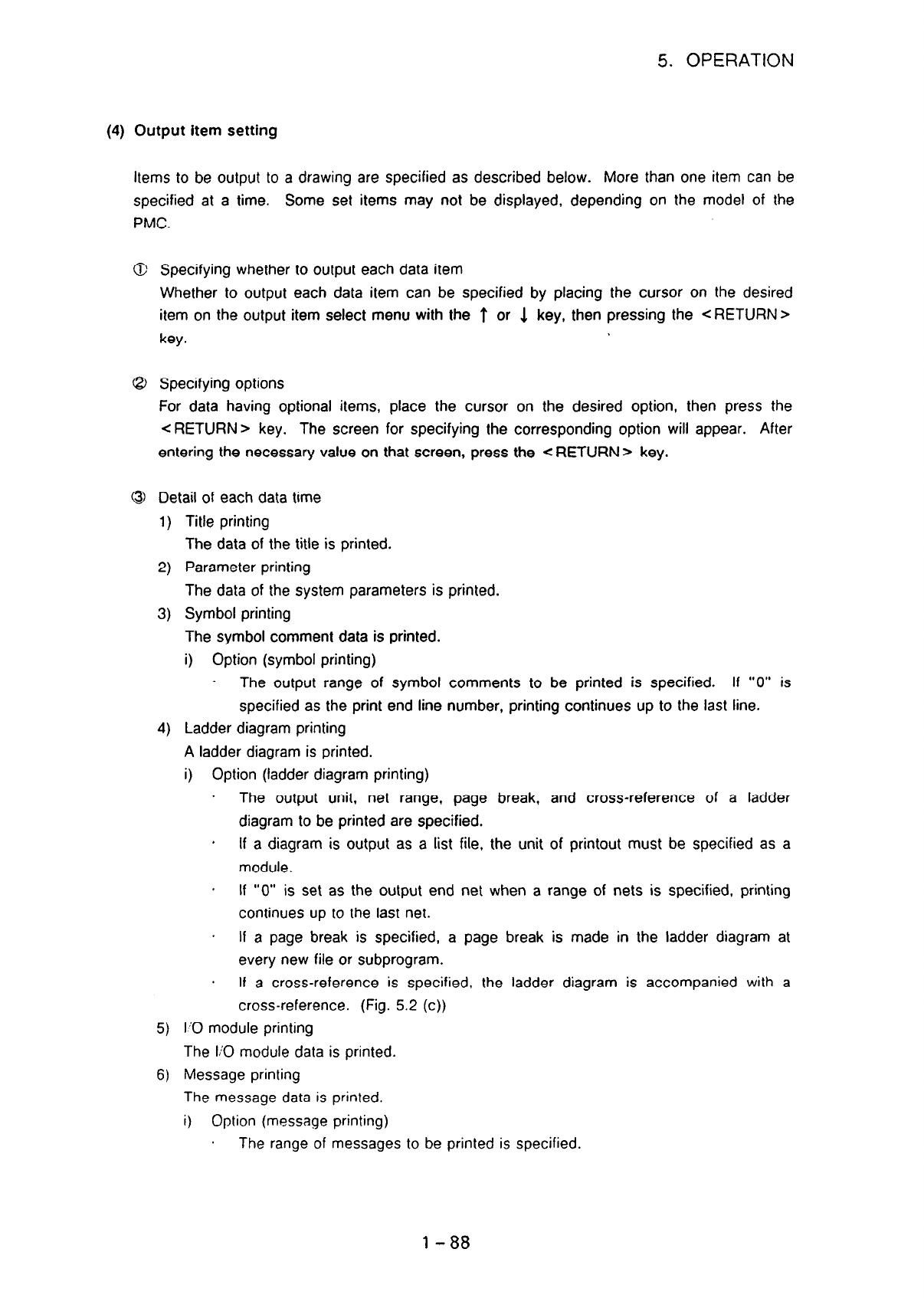

5. OPERATION

(4) Output item setting

Items to be output to a drawing are specified as described below. More than one item can be

specified at a time. Some set items may not be displayed, depending on the model of the

PMC.

@ Specifying whether to output each data item

Whether to output each data item can be specified by placing the cursor on the desired

item on the output item select menu with the 7 or 1 key, then pressing the <RETURN>

key.

8 Specifying options

For data having optional items, place the cursor on the desired option, then press the

<RETURN > key. The screen for specifying the corresponding option will appear. After

entering the necessary value on that screen, press the < RETURN > key.

6 Detail of each data time

1) Title printing

The data of the title is printed.

2) Parameter printing

The data of the system parameters is printed.

3) Symbol printing

The symbol comment data is printed.

i) Option (symbol printing)

* The output range of symbol comments to be printed is specified. If “0” is

specified as the print end line number, printing continues up to the last line.

4) Ladder diagram printing

A ladder diagram is printed.

Option (ladder diagram printing)

* The output unit, net range, page break, and cross-reference of a ladder

diagram to be printed are specified.

* If a diagram is output as a list file, the unit of printout must be specified as a

module.

* If “0” is set as the output end net when a range of nets is specified, printing

continues up to the last net.

. If a page break is specified, a page break is made in the ladder diagram at

every new file or subprogram.

* If a cross-reference is specified, the ladder diagram is accompanied with a

cross-reference. (Fig. 5.2 (c))

5) I’0 module printing

The I/O module data is printed.

6) Message printing

The message data is printed.

i) Option (message printing)

* The range of messages to be printed is specified.

l-88
