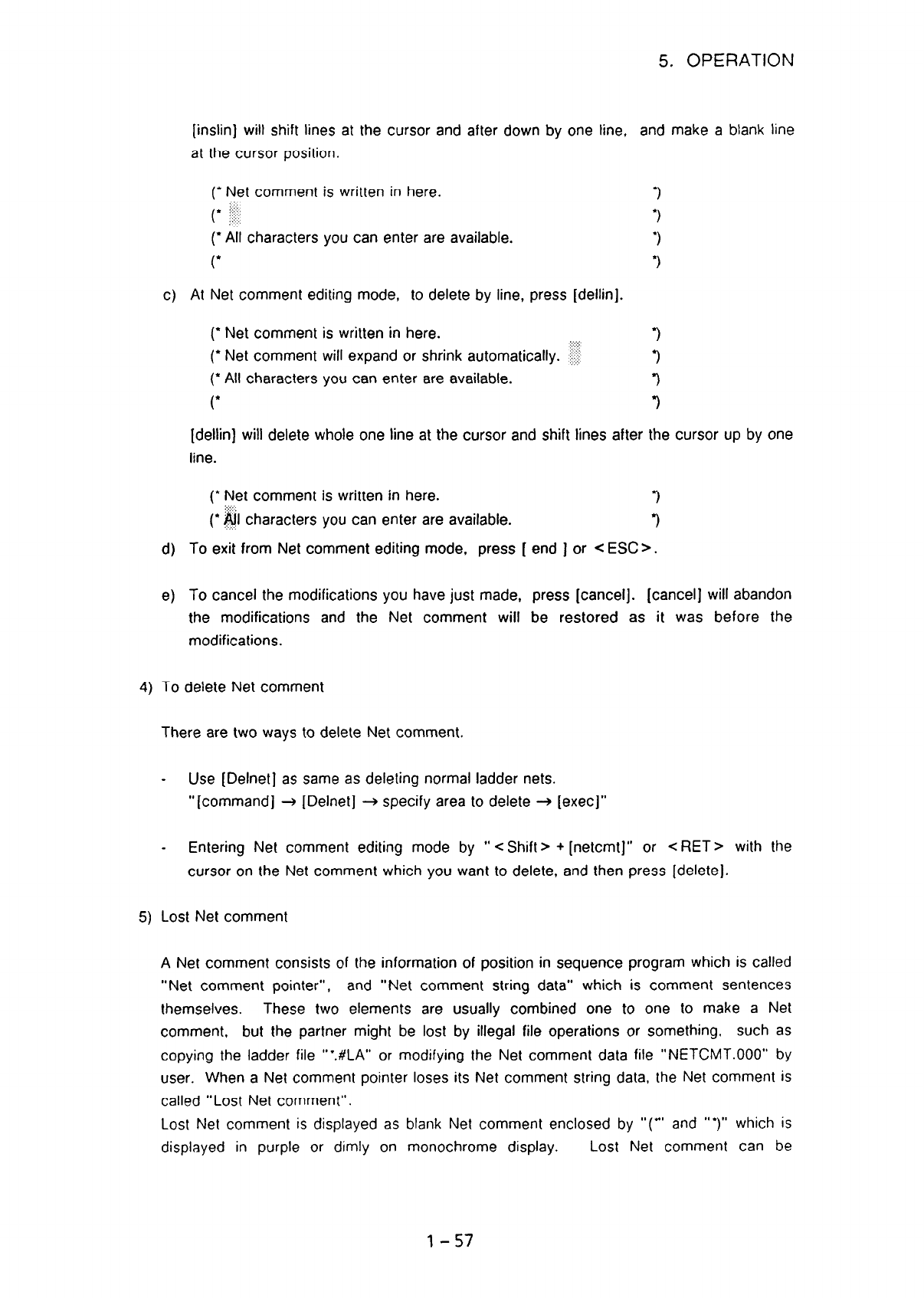

5. OPERATION

At Net comment editing mode,

to delete by line, press [dellin].

(’ Net comment is written in

here.

:.:.:.:

(* Net comment will expand or shrink automatically. .iz

(’ All characters you can enter are available.

[dellin) will delete whole one line at the cursor and shift lines after the cursor up by one

line.

(’ Net comment is written in here.

‘)

(’ &I characters you can enter are available.

‘)

To exit from Net comment editing mode, press [ end ] or < ESC >.

To cancel the modifications you have just made, press [cancel]. [cancel] will abandon

the modifications and the Net comment will be restored as it was before the

modifications.

[inslin] will shift lines at the cursor and after down by one line, and make a blank line

at the cursor position.

(’ Net comment is written in here.

. .

(’ y:

:. .

(’ All characters you can enter are available.

l )

‘)

(’ l ;

4) To delete Net comment

There are two ways to delete Net comment.

- Use [Delnet] as same as deleting normal ladder nets.

“[command] + [Delnet] --) specify area to delete -+ [exec]”

- Entering Net comment editing mode by ” c Shift > + [netcmt]” or <RET > with the

cursor on the Net comment which you want to delete, and then press [delete].

5) Lost Net comment

A Net comment consists of the information of position in sequence program which is called

“Net comment pointer”,

and “Net comment string data” which is comment sentences

themselves.

These two elements are usually combined one to one to make a Net

comment, but the partner might be lost by illegal file operations or something, such as

copying the ladder file

“‘.#LA” or modifying the Net comment data file “NETCMT.OOO” by

user. When a Net comment pointer loses its Net comment string data, the Net comment is

called “Lost Net comment”.

Lost Net comment is displayed as blank Net comment enclosed by ‘I(“’ and “‘)” which is

displayed in purple or dimly on monochrome display. Lost Net comment can be

1 - 57
