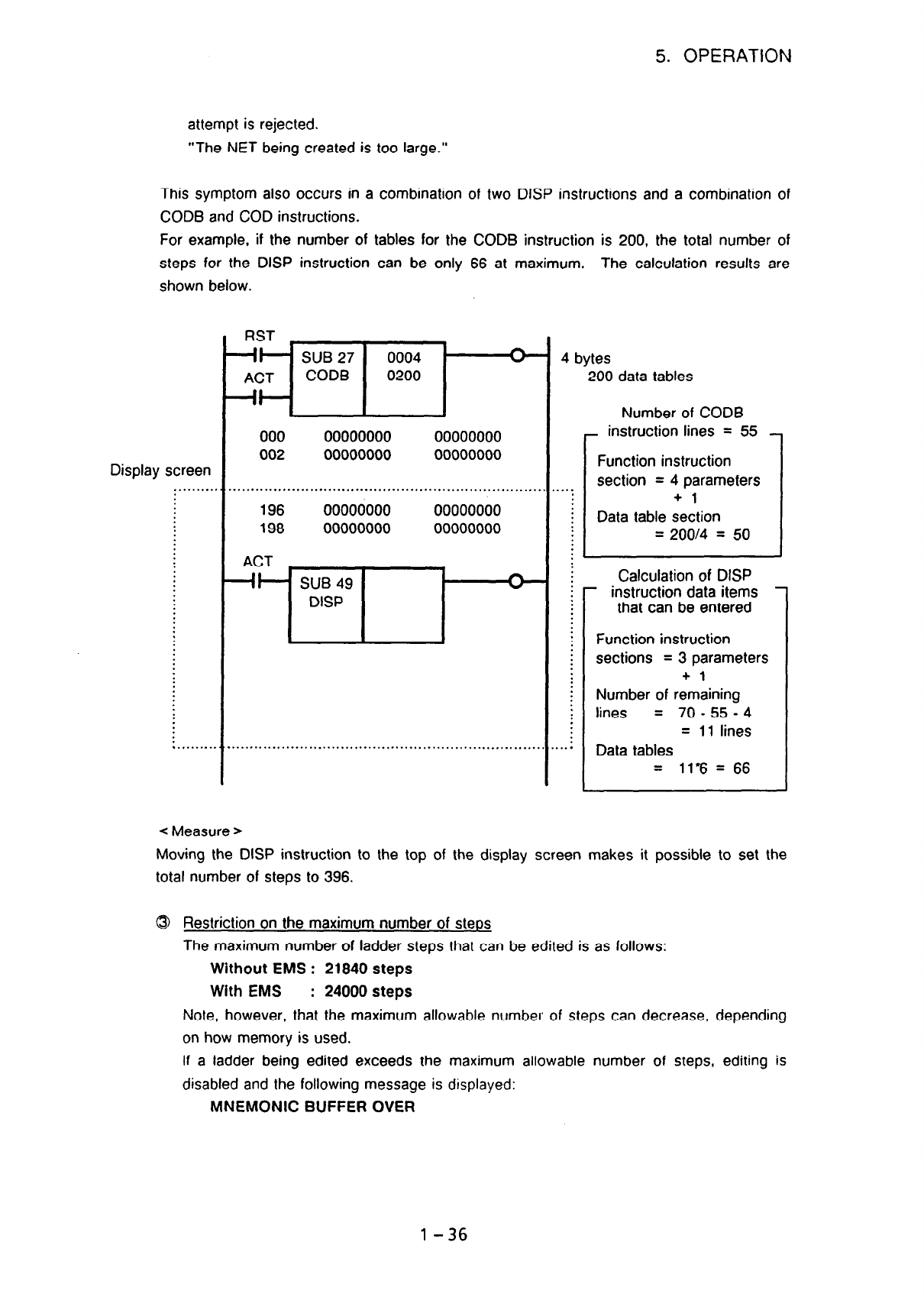

5. OPERATION

attempt is rejected.

“The NET being created is too large.”

This symptom also occurs in a combination of two DISP instructions and a combination of

CODB and COD instructions.

For example, if the number of tables for the CODB instruction is 200, the total number of

steps for the DISP instruction can be only 66 at maximum. The calculation results are

shown below.

Display screen

. . . . . . . . . .

FIST

-II-

ACT

-II-

000 00000000 00000000

002

00000000

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

196 00000000

00000000

198 00000000

00000000

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 bytes

200 data tables

. .

. . .

Number of CODB

_ instruction lines = 55

Function instruction

section

= 4 parameters

+ 1

Data table section

= 20014 = 50

Calculation of DISP

- instruction data items -

that can be entered

Function instruction

sections

= 3 parameters

+ 1

Number of remaining

lines

= 70 - 55 - 4

= 11 lines

Data tables

= 11%=66

< Measure >

Moving the DISP instruction to the top of the display screen makes it possible to set the

total number of steps to 396.

8 Restriction on the maximum number of steps

The maximum number of ladder steps that can be edited is as follows:

Without EMS : 21840 steps

With EMS : 24000 steps

Note, however, that the maximum allowable number of steps can decrease, depending

on how memory is used.

If a ladder being edited exceeds the maximum allowable number of steps, editing is

disabled and the following message is displayed:

MNEMONIC BUFFER OVER

l-36
