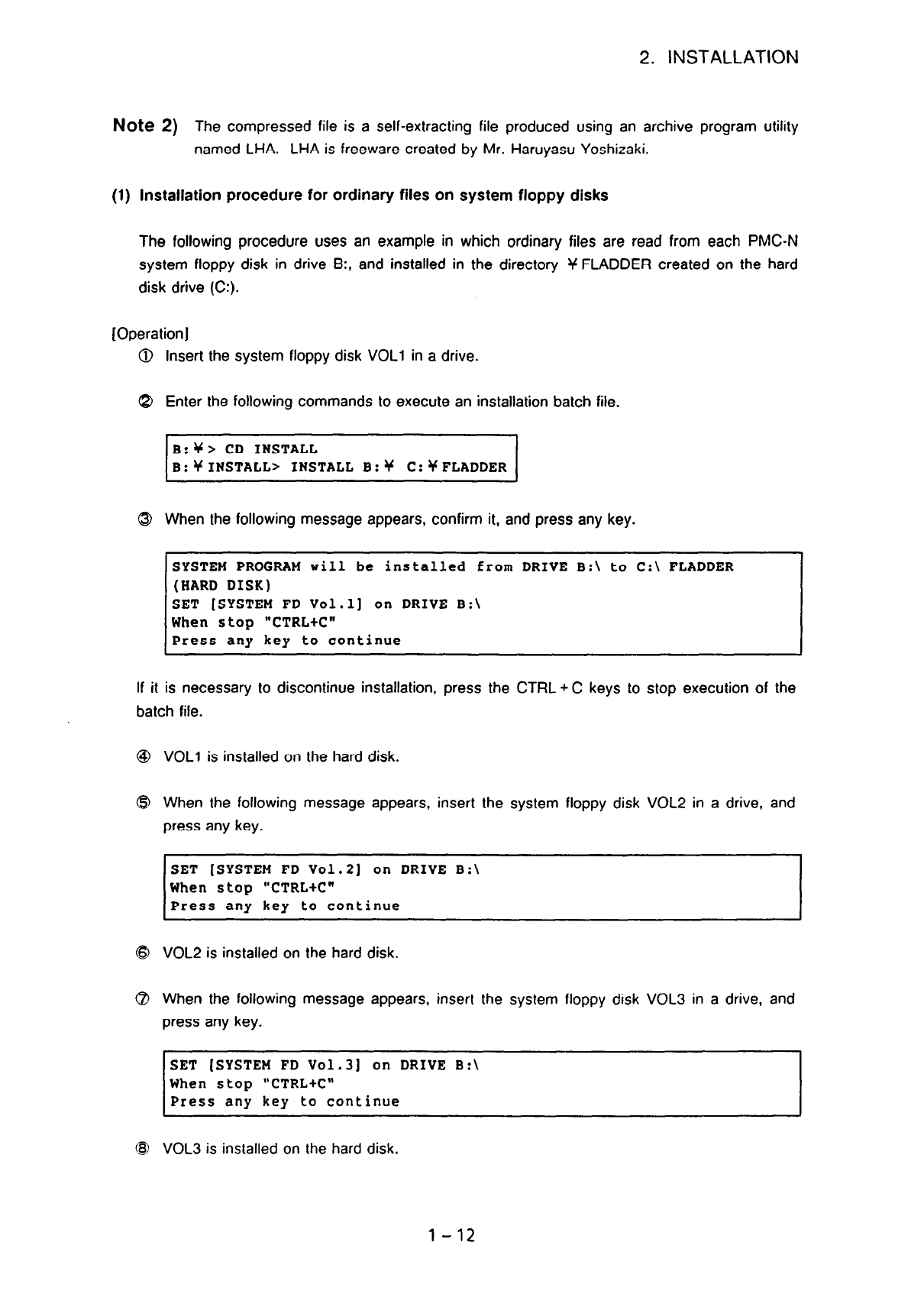

FAPT Ladder for PC Operators manual Page 19

Operators manual
2. INSTALLATION
Note 2)
The compressed file is a self-extracting file produced using an archive program utility
named LHA. LHA is freeware created by Mr. Haruyasu Yoshizaki.
(1) Installation procedure for ordinary files on system floppy disks
The following procedure uses an example in which ordinary files are read from each PMC-N
system floppy disk in drive B:, and installed in the directory Y FLADDER created on the hard
disk drive (C:).
[Operation]
Insert the system floppy disk VOLl in a drive.
Enter the following commands to execute an installation batch file.
B:Y> CD INSTALL
B:YINSTALL> INSTALL B:Y C:+FLADDER
0
When the following message appears, confirm it, and press any key.
SYSTEM PROGRAM will be installed from DRIVE B:\ to C:\ FLADDER
(HARD DISK)
SET [SYSTEM FD Vol.11 on DRIVE B:\
When stop "CTRL+C"
Press any key to continue
If it
is necessary to discontinue installation, press the CTRL + C keys to stop execution of the
batch file.
VOLI is installed on the hard disk.
When the following message appears, insert the system floppy disk VOL2 in a drive, and
press any key.
SET [SYSTEM FD Vol.21 on DRIVE B:\
When stop "CTRLtC"
Press any key to continue
VOL2 is installed on the hard disk.
When the following message appears, insert the system floppy disk VOL3 in a drive, and
press any key.
SET [SYSTEM FD Vol.31 on DRIVE B:\
When stop "CTRLtC"
Press any key to continue
VOL3 is installed on the hard disk.
1-12
