5. OPERATION
3) Examples

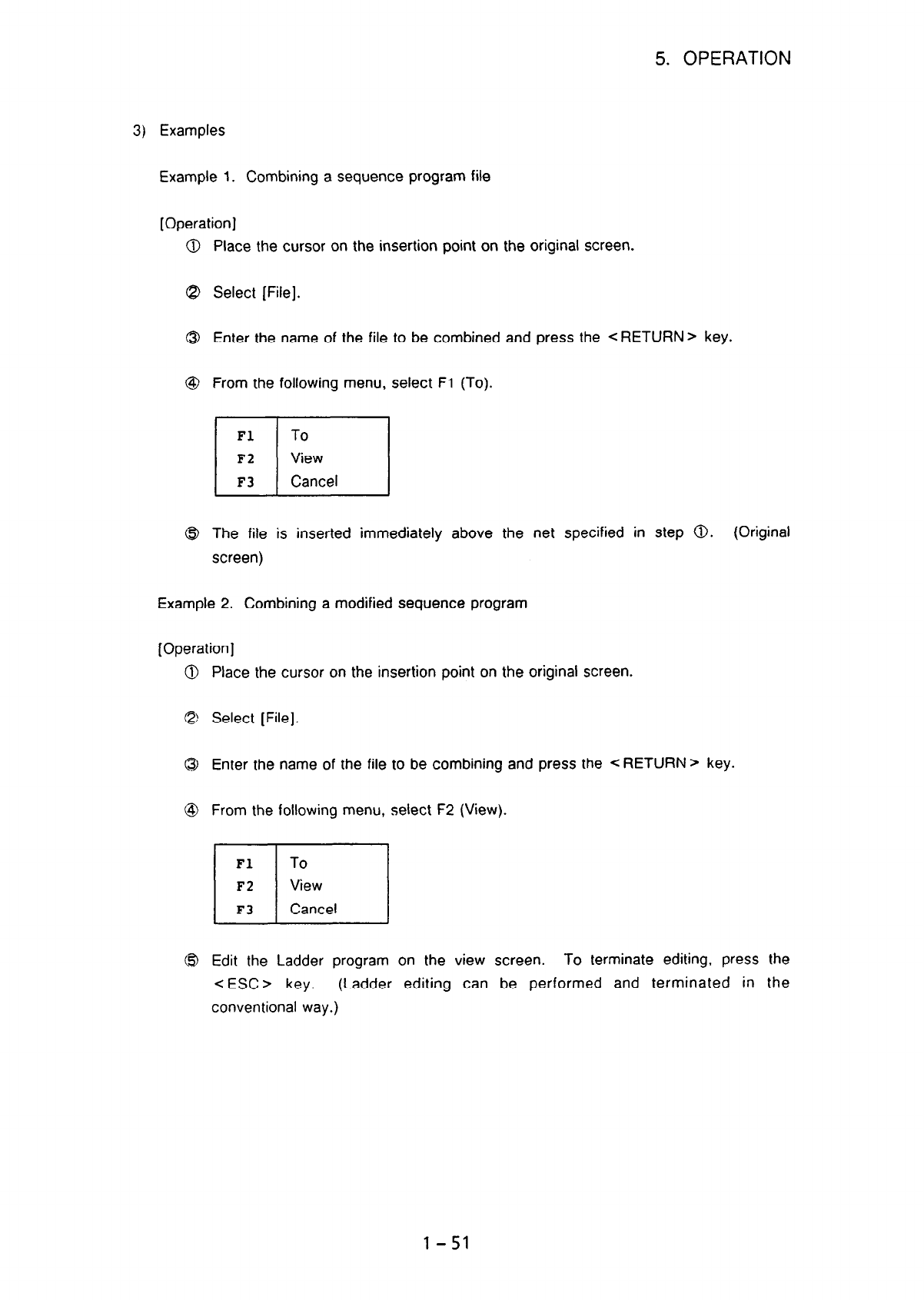

Example 1. Combining a sequence program file
[Operation]
Place the cursor on the insertion point on the original screen.
Select [File].
Enter the name of the file to be combined and press the <RETURN > key.
From the following menu, select Fl (To).
The file is inserted immediately above the net specified in step 0. (Original
screen)
Example 2. Combining a modified sequence program
[Operation]
Place the cursor on the insertion point on the original screen.
Select [File].
Enter the name of the file to be combining and press the <RETURN > key.
From the following menu, select F2 (View).
Edit the Ladder program on the view screen.
To terminate editing, press the
<ESC> key.
(Ladder editing can be performed and terminated in the
conventional way.)
l-51
