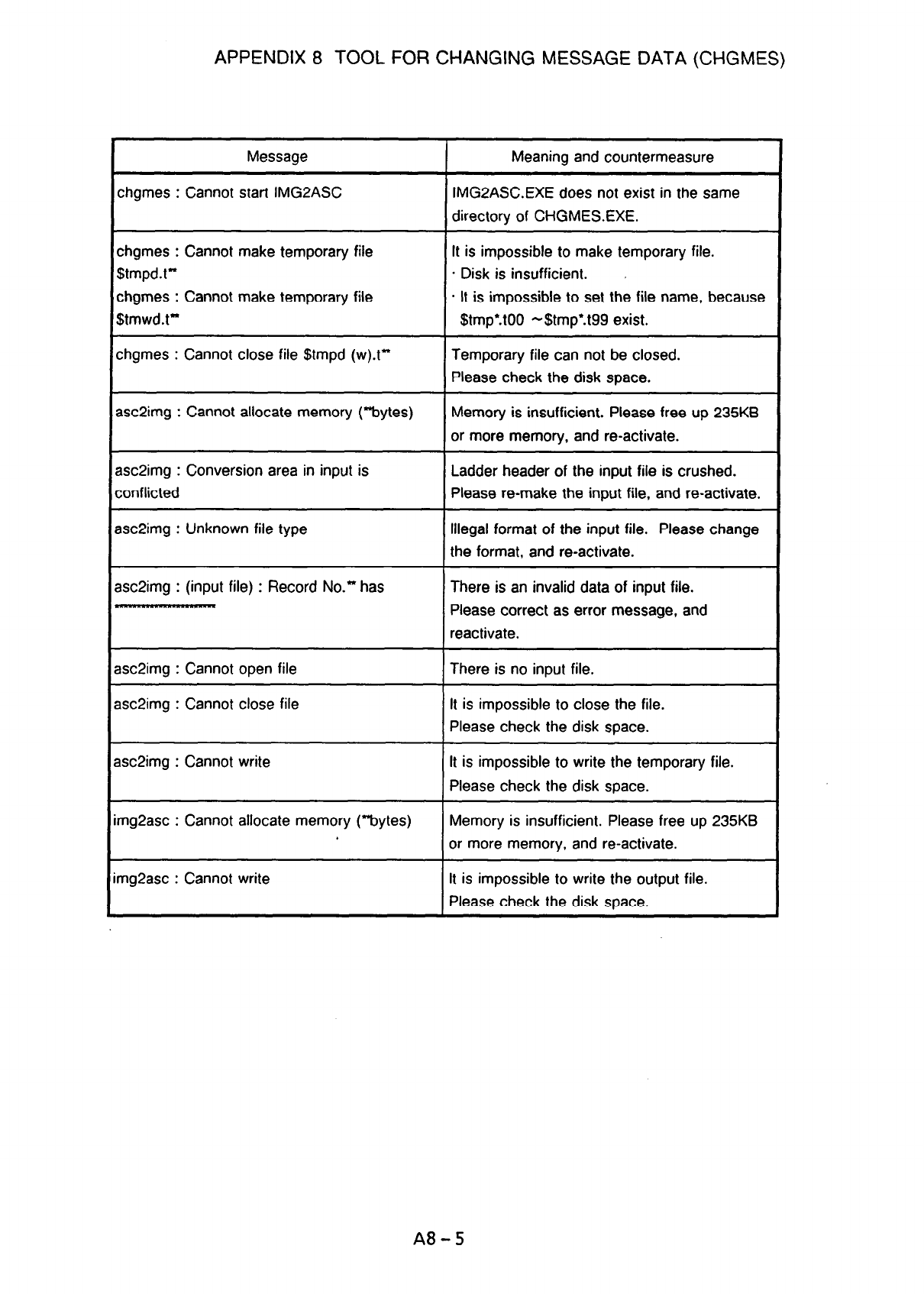

APPENDIX 8 TOOL FOR CHANGING MESSAGE DATA (CHGMES)

Message

chgmes : Cannot start IMG2ASC

Meaning and countermeasure

IMG2ASC.EXE does not exist in the same

directory of CHGMESEXE.

chgmes : Cannot make temporary file

$tmpd.t”

chgmes : Cannot make temporary file

$tmwd.t”

chgmes : Cannot close file $tmpd (w).t*

It is impossible to make temporary file.

* Disk is insufficient.

- It is impossible to set the file name, because

$tmp*.tOO -$tmp*.t99 exist.

Temporary file can not be closed.

Please check the disk space.

ssc2img : Cannot allocate memory (“bytes)

Memory is insufficient. Please free up 235KB

or more memory, and re-activate.

ssc2img : Conversion area in input is

zonflicted

asc2img : Unknown file type

Ladder header of the input file is crushed.

Please re-make the input file, and re-activate.

Illegal format of the input file. Please change

the format, and re-activate.

asc2img : (input file) : Record No.” has There is an invalid data of input file.

Please correct as error message, and

reactivate.

3sc2img : Cannot open file

Isc2img : Cannot close file

There is no input file.

It is impossible to close the file.

Please check the disk space.

Isc2img : Cannot write It is impossible to write the temporary file.

Please check the disk space.

mg2asc : Cannot allocate memory (“bytes)

Memory is insufficient. Please free up 235KB

or more memory, and re-activate.

mg2asc : Cannot write It is impossible to write the output file.

Please check the disk space.

A8-5
