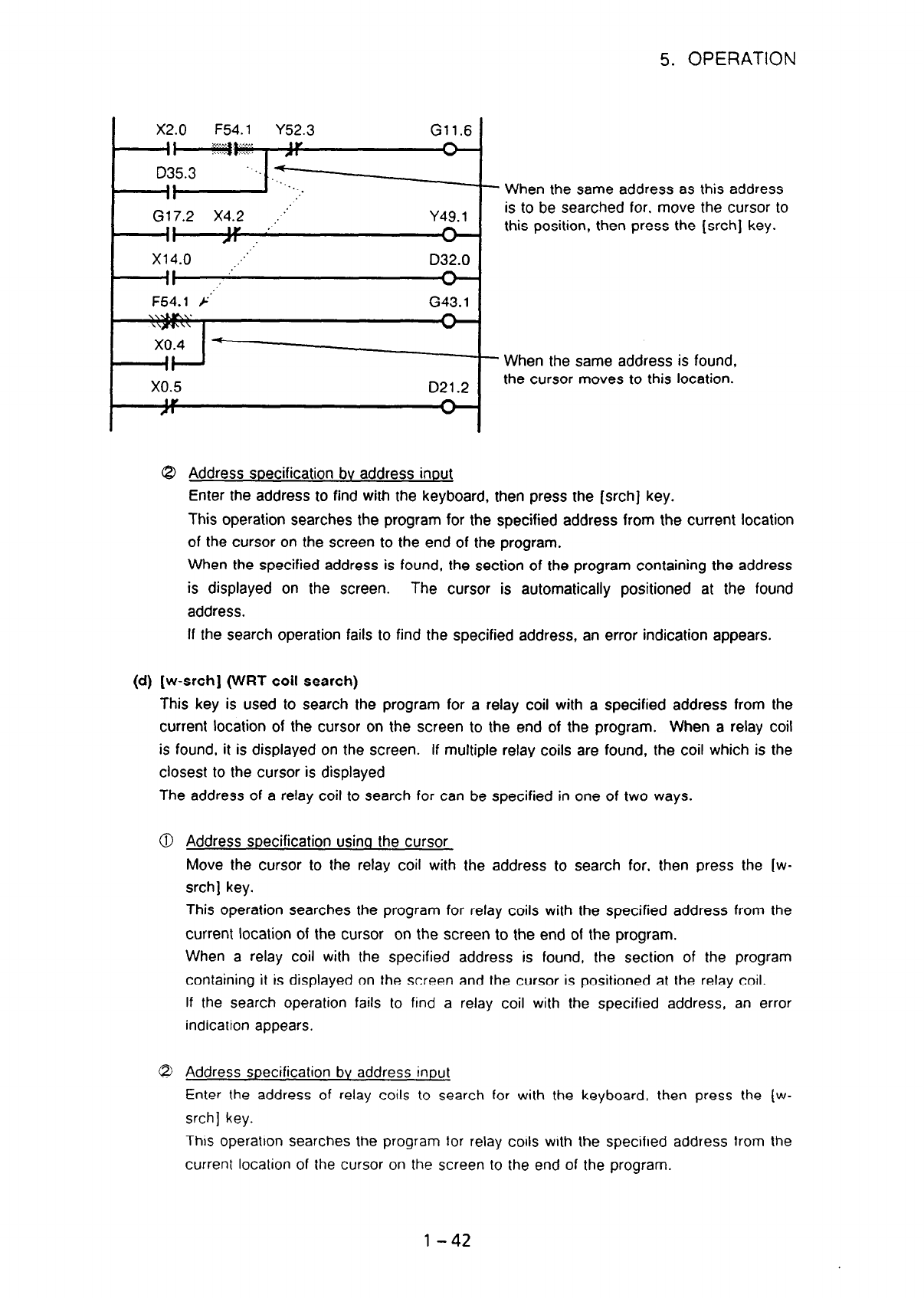

5. OPERATION

Gll.6

-- When the same address as this address

Y49.1

is to be searched for. move the cursor to

this position, then press the (srch] key.

D32.0

Address soecification bv address inout

Enter the address to find with the keyboard, then press the [srch] key.

This operation searches the program for the specified address from the current location

of the cursor on the screen to the end of the program.

When the specified address is found, the section of the program containing the address

is displayed on the screen. The cursor is automatically positioned at the found

address.

If the search operation fails to find the specified address, an error indication appears.

(w-srch] (WRT coil search)

F54.1 ,.“’

x0.4 -

II .

x0.5

GE.1

021.2

When the same address is found,

the cursor moves to this location.

This key is used to search the program for a relay coil with a specified address from the

current location of the cursor on the screen to the end of the program. When a relay coil

is found. it is displayed on the screen.

If multiple relay coils are found, the coil which is the

closest to the cursor is displayed

The address of a relay coil to search for can be specified in one of two ways.

@ Address soecification usino the cursor

Move the cursor to the relay coil with the address to search for, then press the [w-

srch] key.

This operation searches the program for relay coils with the specified address from the

current location of the cursor on the screen to the end of the program.

When a relay coil with the specified address is found, the section of the program

containing it is displayed on the screen and the cursor is positioned at the relay coil.

If the search operation fails to find a relay coil with the specified address, an error

indication appears.

@ Address specification bv address inout

Enter the address of relay coils to search for with the keyboard, then press the (w-

srch] key.

This operation searches the program for relay coils with the specified address from the

current location of the cursor on the screen to the end of the program.

l-42
