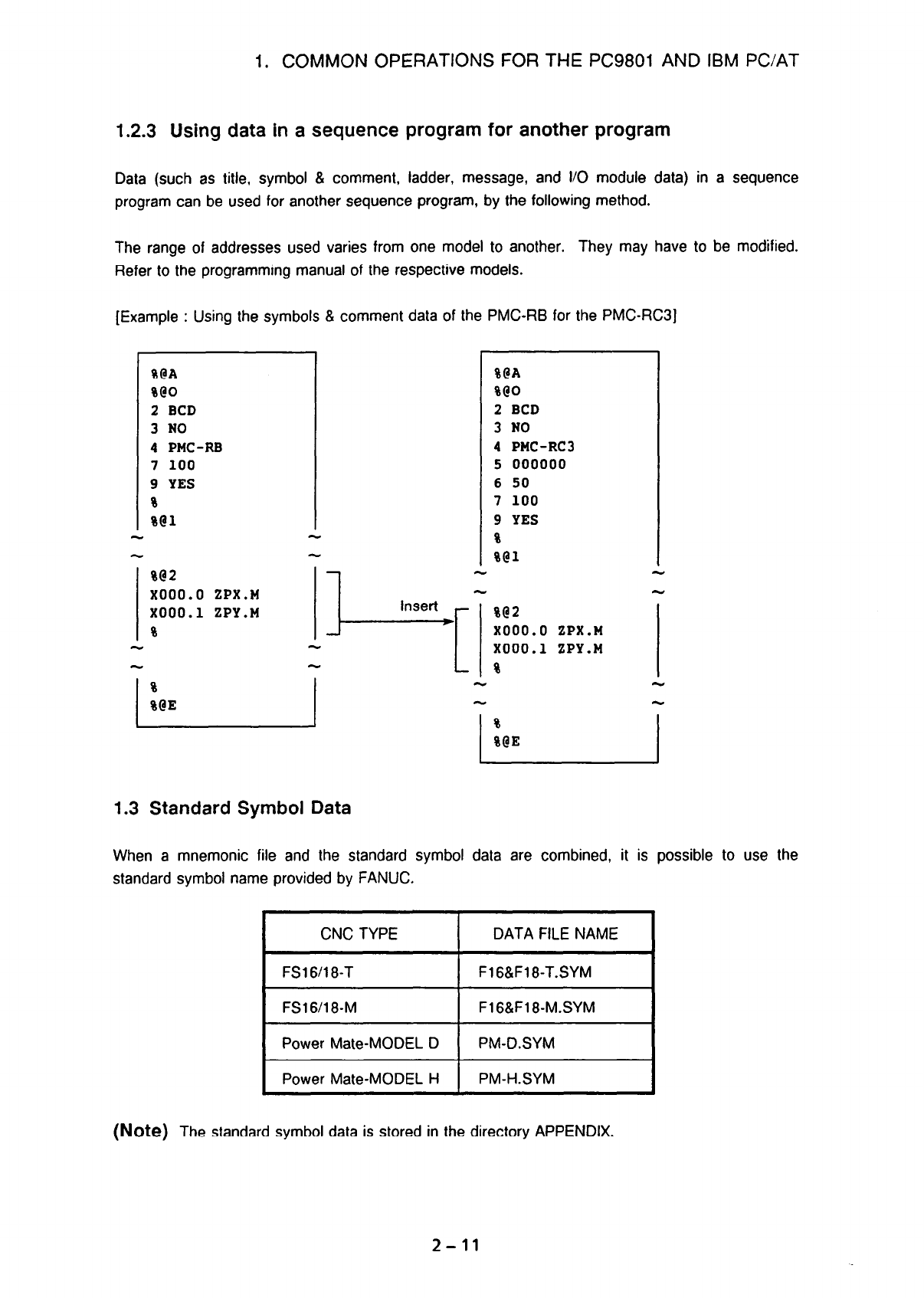

1. COMMON OPERATIONS FOR THE PC9801 AND IBM PC/AT

1.2.3 Using data in a sequence program for another program

Data (such as title, symbol & comment, ladder, message, and I/O module data) in a sequence

program can be used for another sequence program, by the following method.

The range of addresses used varies from one model to another. They may have to be modified.

Refer to the programming manual of the respective models.

[Example : Using the symbols & comment data of the PMC-FIB for the PMC-RC3]

%@A

%@O

2 BCD

3 NO

4 PMC-RB

7 100

9 YES

eel

%@2

x000.0 2PX.M

x000.1 2PY.M

%@A

%@O

2 BCD

3 NO

4 PMC-RC3

5 000000

6 50

7 100

9 YES

%@l

X000.0 ZPX.M

X000.1 ZPY.M

1.3 Standard Symbol Data

When a mnemonic file and the standard symbol data are combined, it is possible to use the

standard symbol name provided by FANUC.

CNC TYPE

DATA FILE NAME

FS16/18-T F16&F18-T.SYM

FS16/18-M FlG&F18-M.SYM

Power Mate-MODEL D

PM-D.SYM

Power Mate-MODEL H PM-H.SYM

(Note) The standard symbol data is stored in the directory APPENDIX.

2-11
