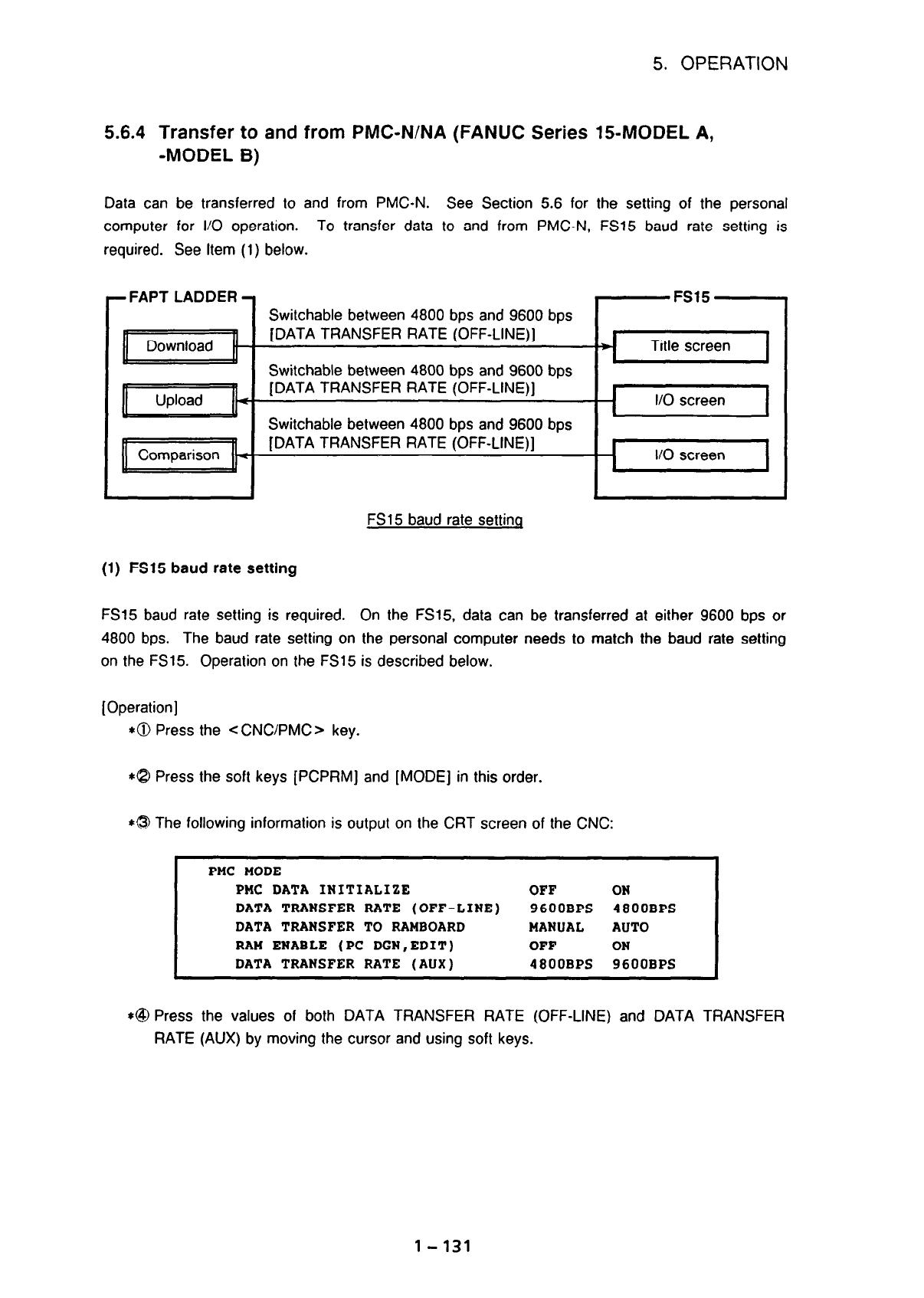

5. OPERATION

5.6.4 Transfer to and from PMC-N/NA (FANUC Series 15MODEL A,

-MODEL B)

Data can be transferred to and from PMC-N. See Section 5.6 for the setting of the personal

computer for I/O operation.

To transfer data to and from PMC-N, FS15 baud rate setting is

required. See Item (1) below.

- FAPT LADDER -

1 Download b

Upload Ib

1 Comparison b

Switchable between 4800 bps and 9600 bps

[DATA TRANSFER RATE (OFF-LINE)]

Switchable between 4800 bps and 9600 bps

fDATA TRANSFER RATE (OFF-LINE)1

Switchable between 4800 bps and 9600 bps

[DATA TRANSFER RATE (OFF-LINE)]

FS15 baud rate settinq

FS15

Title screen

I/O screen

j110[

(1) FS15 baud rate setting

FS15 baud rate setting is required. On the FSl5, data can be transferred at either 9600 bps or

4800 bps. The baud rate setting on the personal computer needs to match the baud rate setting

on the FS15. Operation on the FS15 is described below.

[Operation]

*@ Press the < CNCIPMC > key.

*8 Press the soft keys [PCPRM] and [MODE] in this order.

*@ The following information is output on the CRT screen of the CNC:

PMC MODE

PMC DATA INITXALIZE

OFF

DATA TRANSFER RATE (OFF-LINE)

9600BPS 4800BPS

DATA TRANSFER TO RAMBOARD

MANUAL AUTO

RAM ENABLE (PC DGN,EDIT)

OFF

DATA TRANSFER RATE (AUX)

4800BPS 9600BPS

*@ Press the values of both DATA TRANSFER RATE (OFF-LINE) and DATA TRANSFER

RATE (AUX) by moving the cursor and using soft keys.

1 - 131
