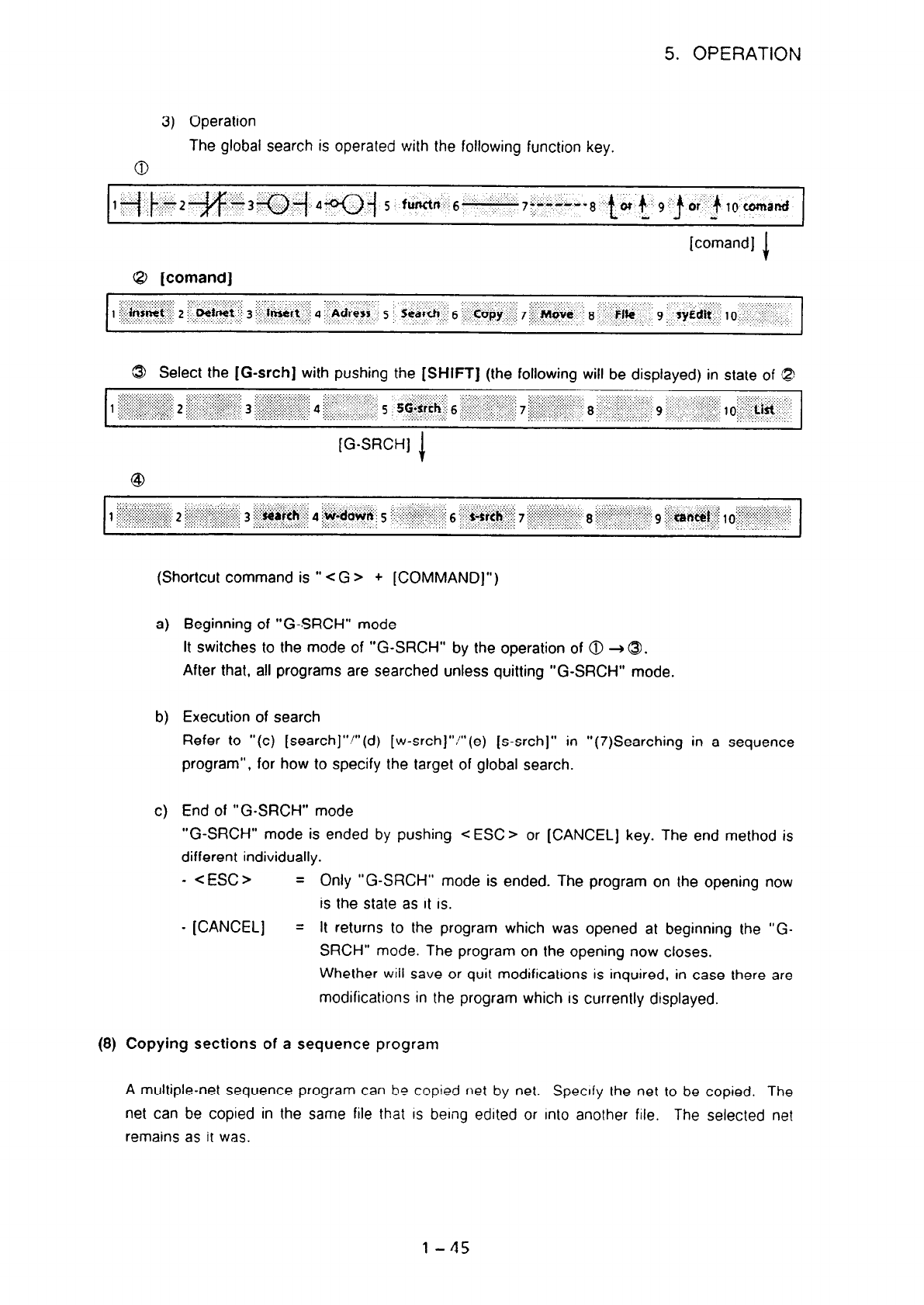

5. OPERATION

3) Operation

The global search is operated with the following function key.

8 [comand]

(comand]

@ Select the [G-srch] with pushing the [SHIFT] (the following will be displayed) in state of 8

[G-SRCH] 1

(Shortcut command is ” <G > + [COMMAND]“)

Beginning of “G-SRCH” mode

It switches to the mode of “G-SRCH” by the operation of 0 + 9.

After that, all programs are searched unless quitting “G-SRCH” mode.

Execution of search

Refer to “(c) [search]“,“‘(d) [w-srchj”Y(e) [s-srch]” in “(7)Searching in a sequence

program”, for how to specify the target of global search.

End of “G-SRCH” mode

“G-SRCH” mode is ended by pushing < ESC > or [CANCEL] key. The end method is

different individually.

- <ESC> = Only “G-SRCH” mode is ended. The program on the opening now

is the state as it is.

- [CANCEL]

= It returns to the program which was opened at beginning the “G-

SRCH” mode. The program on the opening now closes.

Whether will save or quit modifications is inquired, in case there are

modifications in the program which IS currently displayed.

Copying sections of a sequence program

A multiple-net sequence program can be copied net by net. Specify the net to be copied. The

net can be copied in the same file that IS being edited or Into another file. The selected net

remains as it was.

l-45
