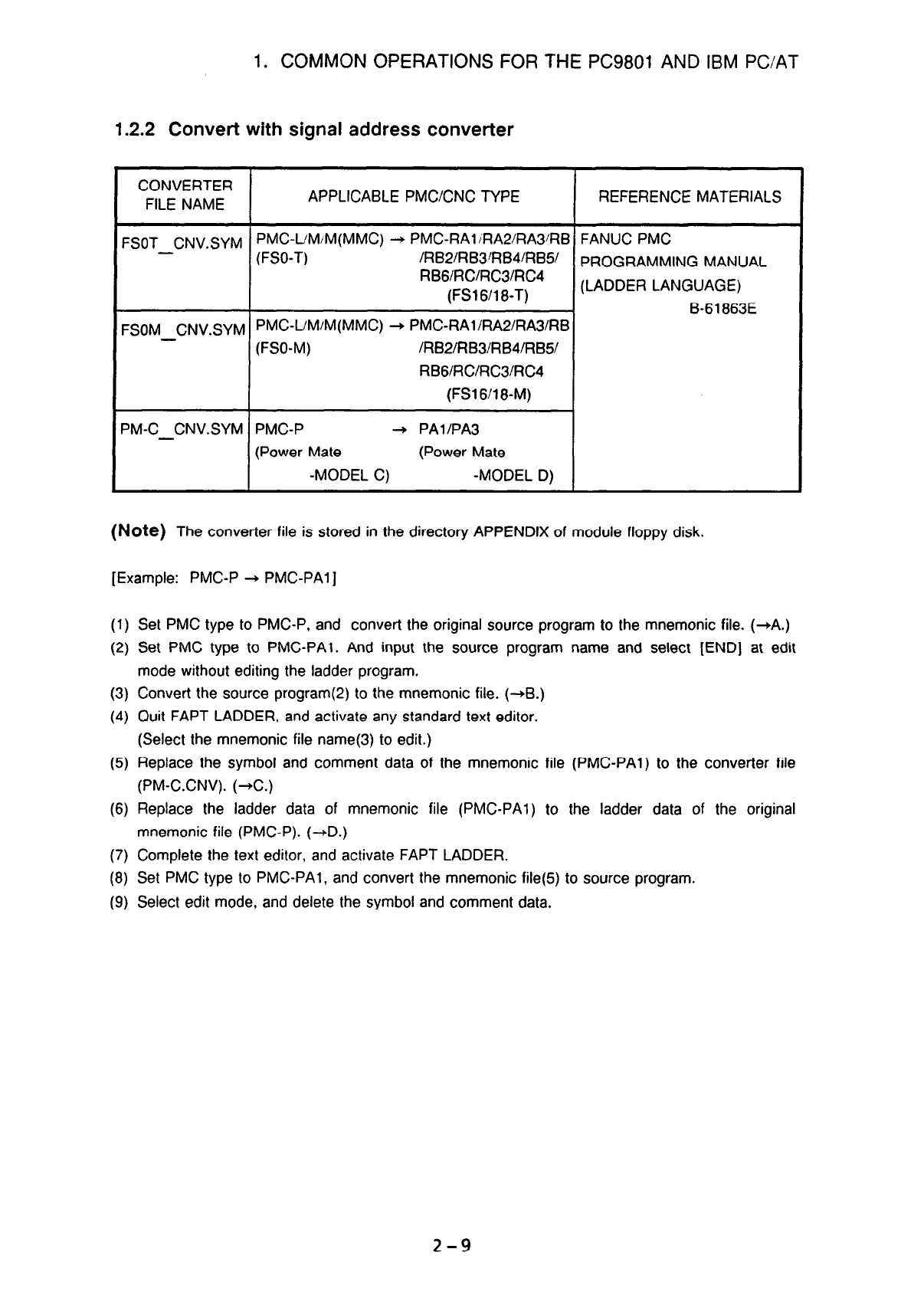

1. COMMON OPERATIONS FOR THE PC9801 AND IBM PC/AT

1.2.2 Convert with signal address converter

CONVERTER

FILE NAME

APPLICABLE PMCCNC TYPE

REFERENCE MATERIALS

FS()T CNV.SYM PMC-uM/M(MMC)

-+ PMC-RAl iRA2IRA3IRB FANUC PMC

(FSO-T)

/RB2’RB3’RB4’RB5’ PROGRAMMING MANUAL

RBG/RC/RC3/RC4

(FS16/18-T)

(LADDER LANGUAGE)

B-61 863E

FSOM CNV.SYM PMC-UM/M(MMC) + PMCRAl/RA2/RA3/RB

(FSO-M)

/RB2/RB3!RB4/RB5/

RBG/RC/RCB/RC4

(FS16/18-M)

PM-C_CNV.SYM PMC-P + PAllPA

(Power Mate

-MODEL C)

-MODEL D)

(1)

(2)

(3)

(4)

(5)

Set PMC type to PMC-P, and convert the original source program to the mnemonic file. (+A.)

Set PMC type to PMC-PAl. And input the source program name and select [END] at edit

mode without editing the ladder program.

Convert the source program(2) to the mnemonic file. (+B.)

Quit FAPT LADDER, and activate any standard text editor.

(Select the mnemonic file name(3) to edit.)

Replace the symbol and comment data of the mnemonic file (PMC-PAl) to the converter file

(PM-C.CNV). (+C.)

(6)

Replace the ladder data of mnemonic file (PMC-PAl) to the ladder data of the original

mnemonic file (PMC-P). (+D.)

(7)

Complete the text editor, and activate FAPT LADDER.

(8)

Set PMC type to PMC-PAl, and convert the mnemonic file@) to source program.

(3)

Select edit mode, and delete the symbol and comment data.

(Note) The converter file is stored in the directory APPENDIX of module floppy disk.

[Example: PMC-P + PMC-PA11

2-9
