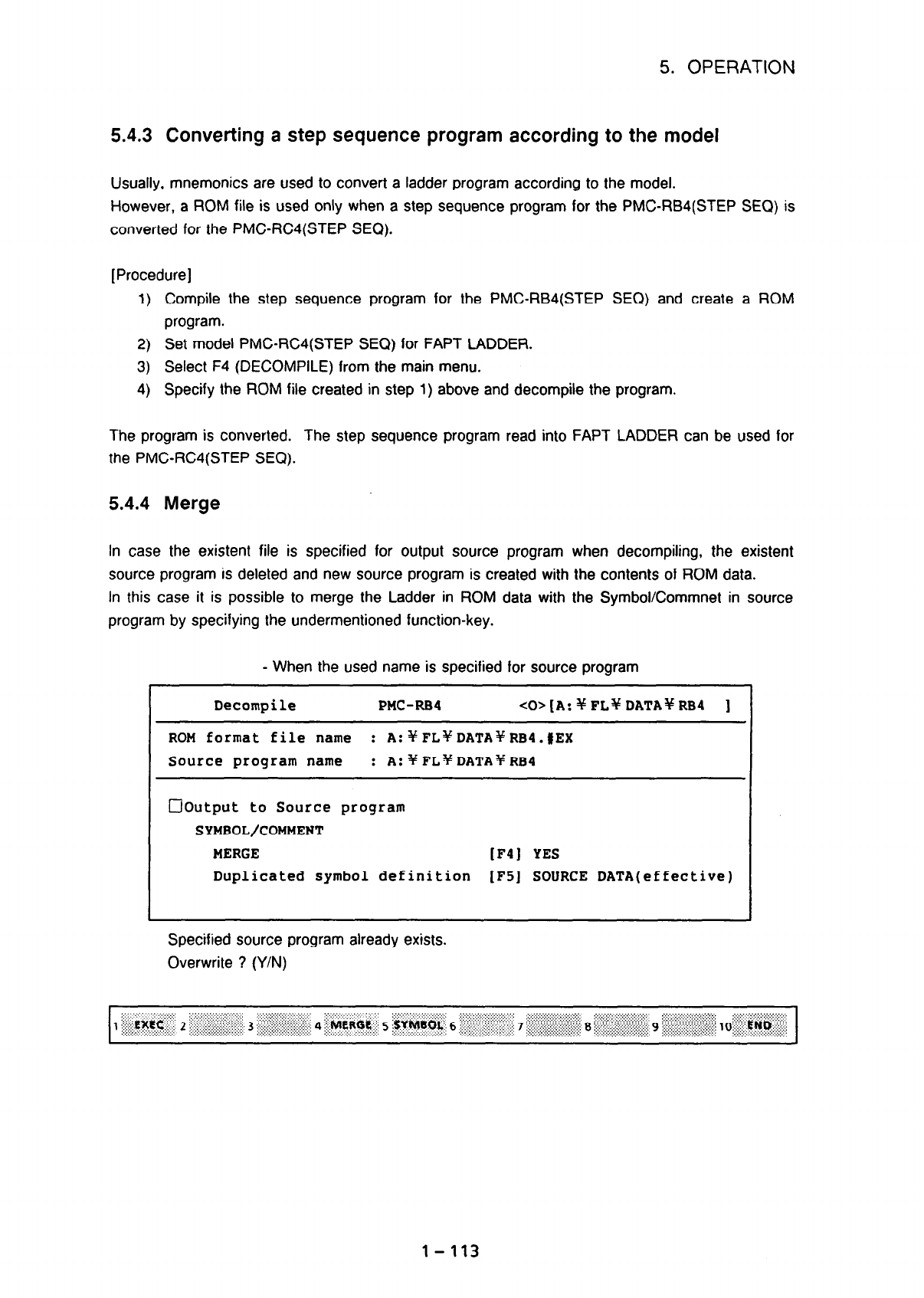

5. OPERATION

54.3 Converting a step sequence program according to the model

Usually, mnemonics are used to convert a ladder program according to the model.

However, a ROM file is used only when a step sequence program for the PMCRB4(STEP SEQ) is

converted for the PMCRC4(STEP SEQ.

[Procedure]

1) Compile the step sequence program for the PMCRB4(STEP SEQ) and create a ROM

program.

2) Set model PMC-RCI(STEP SEQ) for FAPT LADDER.

3) Select F4 (DECOMPILE) from the main menu.

4) Specify the ROM file created in step 1) above and decompile the program.

The program is converted. The step sequence program read into FAPT LADDER can be used for

the PMC-RC4(STEP SEQ.

5.4.4 Merge

In case the existent file is specified for output source program when decompiling, the existent

source program is deleted and new source program is created with the contents of ROM data.

In this case it is possible to merge the Ladder in ROM data with the SymboVCommnet in source

program by specifying the undermentioned function-key.

- When the used name is specified for source program

Decompile PMC-RB4 <O>[A:YFL%DATAYRB4 ]

ROM format file name : A:YFLYDATAYRB4.#EX

Source program name : A:yFLYDATAyRB4

OOutput to Source program

SYMBOL/COMMENT

MERGE

[F4] YES

Duplicated symbol definition

[FS] SOURCE DATA(effective)

Specified source program already exists.

Overwrite 7 (Y/N)

1-113
