B–63833EN–1/02

2. PREPARATIONS FOR OPERATION

126

[Classification] Input signal

[Function] This signal is used to inhibit the machine from moving, and is effective

regardless of the selected mode.

[Operation] When the *IT signal is “0”, the axis movement is decelerated and stopped.

In automatic operation, blocks containing M, S, T or B 2nd auxiliary

mode commands are executed consecutively until a block containing an

axis move command is encountered; the system then stops and is placed

into the automatic operation mode (cycle start lamp signal STL is “1”,

feed hold lamp signal SPL is “0”). When the *IT signal turns to “1”,

operation resumes (Figs. 2.5(c), (d)).

*IT

Command read

Axis move

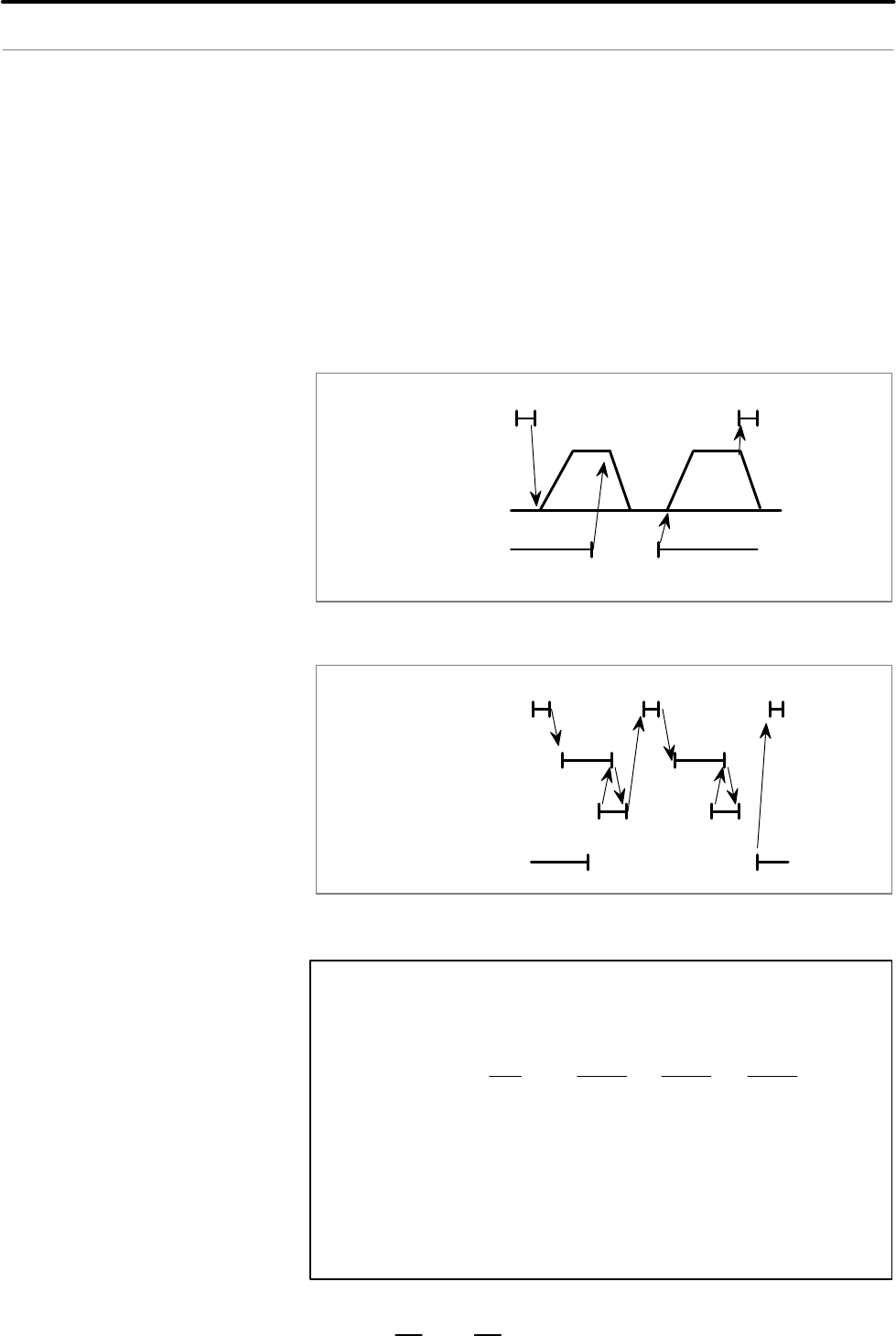

Fig. 2.5 (c) Block containing axis move commands only

(manual and automatic operation)

MF/SF/TF

FIN

*IT

Command read

Fig. 2.5 (d) Block containing auxiliary functions only

(automatic operation)

NOTE

The overtravel distance of the motor after turning *IT to “0”

is represented by the following formula.

Where

max

: Overtravel quantity (mm or inch)

: Feedrate (mm/min or inch/min)

: Cutting time constant (ms)

: Servo time constant (Ts = 33ms normally)

A : Processing time of CNC

A = 50ms

max

× (

1000

)

All axes Interlock signal

*IT<G008#0>
