Series 0i/0i Mate - Model B Connection manual (Function) Page 342

Connection manual (Function)

Page of 1090

/ 1090

B–63833EN–1/02

7. FEEDRATE CONTROL/ACCELERATION

AND DECELERATION CONTROL

324

When G62 is specified, and the tool path with cutter compensation

applied forms an inner corner, the feedrate is automatically overridden

at both ends of the corner.

There are four types of inner corners (Fig. 7.1.7).

2°

xθxθpx178° in Fig. 7.1.7

θp is a value set with parameter No. 1711. When θ is approximately

equal to

θp, the inner corner is determined with an error of 0.001,or

less.

:Cutter center path

:Tool

:Programmed path

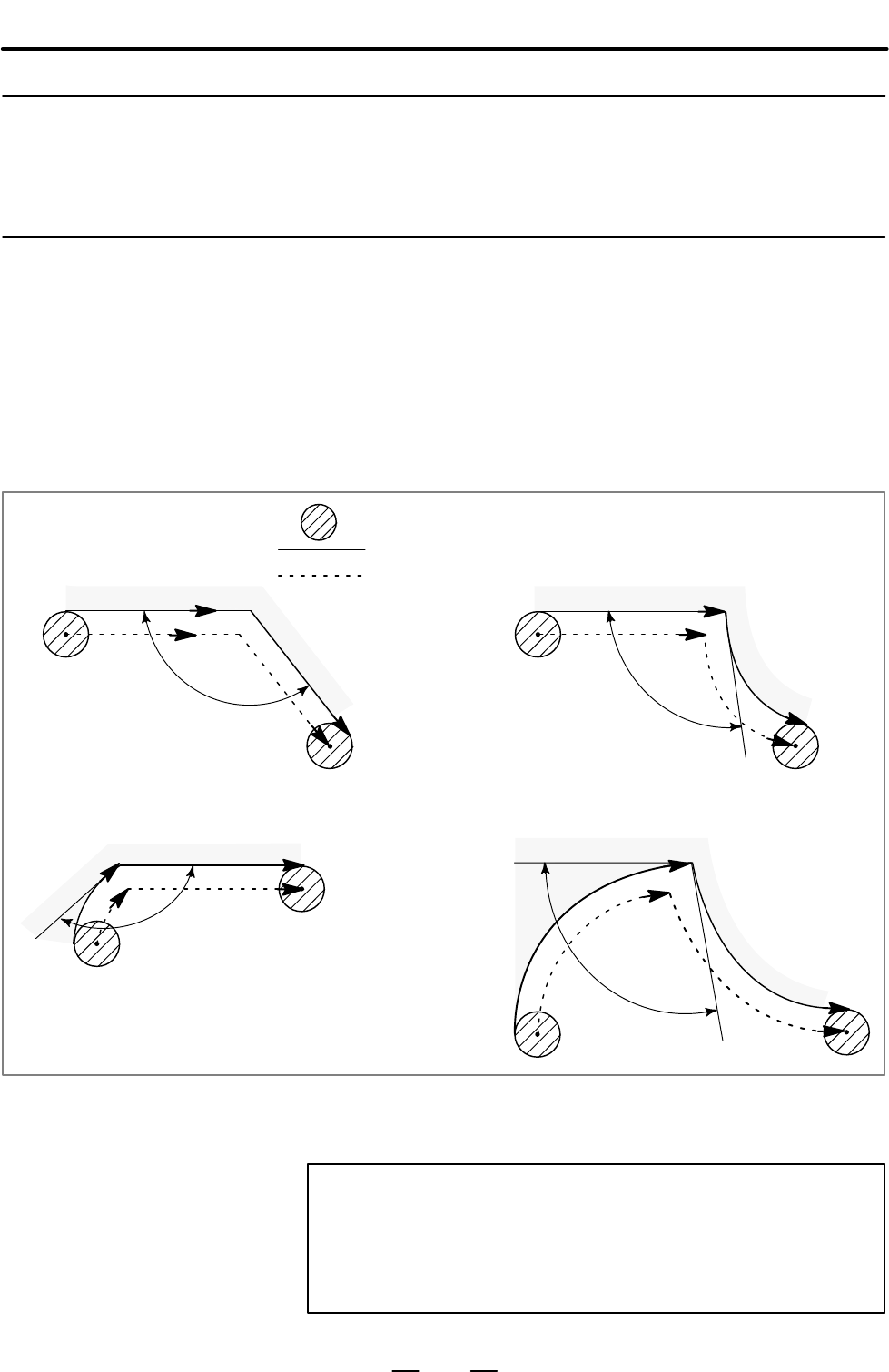

1. Straight line–straight line 2. Straight line–arc

3. Arc–straight line 4. Arc–arc

Fig. 7.1.7 Inner corner

WARNING

When the block before a corner is a start–up block, or the

block after a corner includes G41 or G42, the feedrate is not

overridden. The feedrate override function is disabled when

the offset value is 0.

7.1.7

Automatic Corner

Override (M series)

General

D Inner corner automatic

override
