B–63833EN–1/02

9. SPINDLE SPEED FUNCTION

499

[Classification] Output signal

[Function] This signal indicates the axis is under Cs contour control.

[Output condition] Spindle speed control mode → 0

Cs contour control mode → 1

Spindle speed control Cs contour control Spindle speed control

CON

Gear change and

operation of spindle

motor must be

completed

FSCSL

Switching internal control Switching internal control

NOTE

Any mechanical gear change needed and inputs for GR1,

GR2, CTH1A, and CTH2A must be completed before the

CON signal selects Cs contour control mode.

A servo excessive error may be generated if the spindle

motor is not ready for operation. (Signal SRVA, SFRA

<G070#4, #5> or other required signals must be

appropriately processed on the machine side).

Refer to 9.3 “Spindle speed Control”.

Spindle contour control

change completion

signal FSCSL <F004#1>

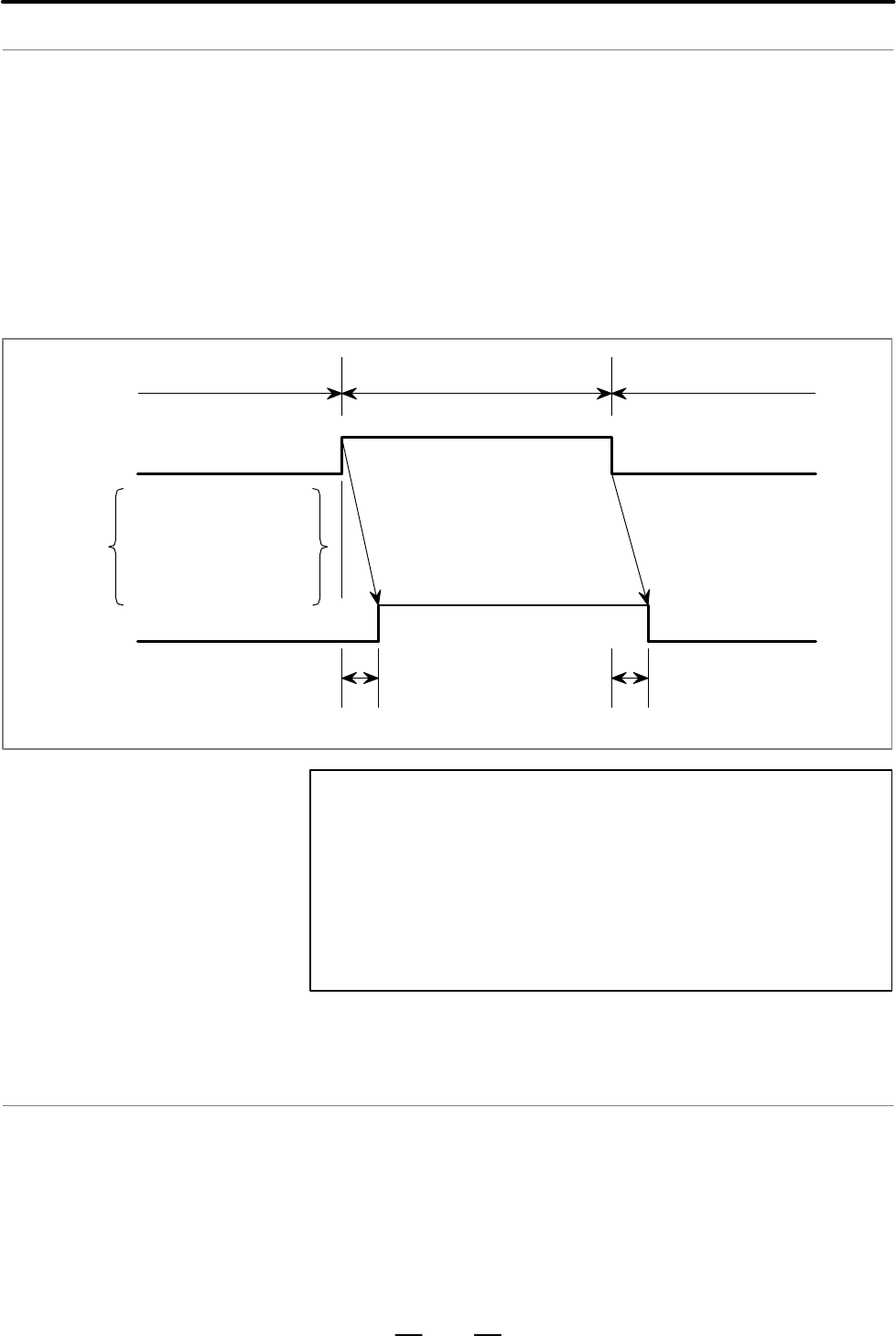

Time Chart

Other signals

Gear select signal (Input)

GR1, GR2, <G028#1, #2>

Gear select signal

(Output)

GR3O, GR2O, GR1O

<F034#2, #1, #0>
