10. TOOL FUNCTIONS
B–63833EN–1/02
608

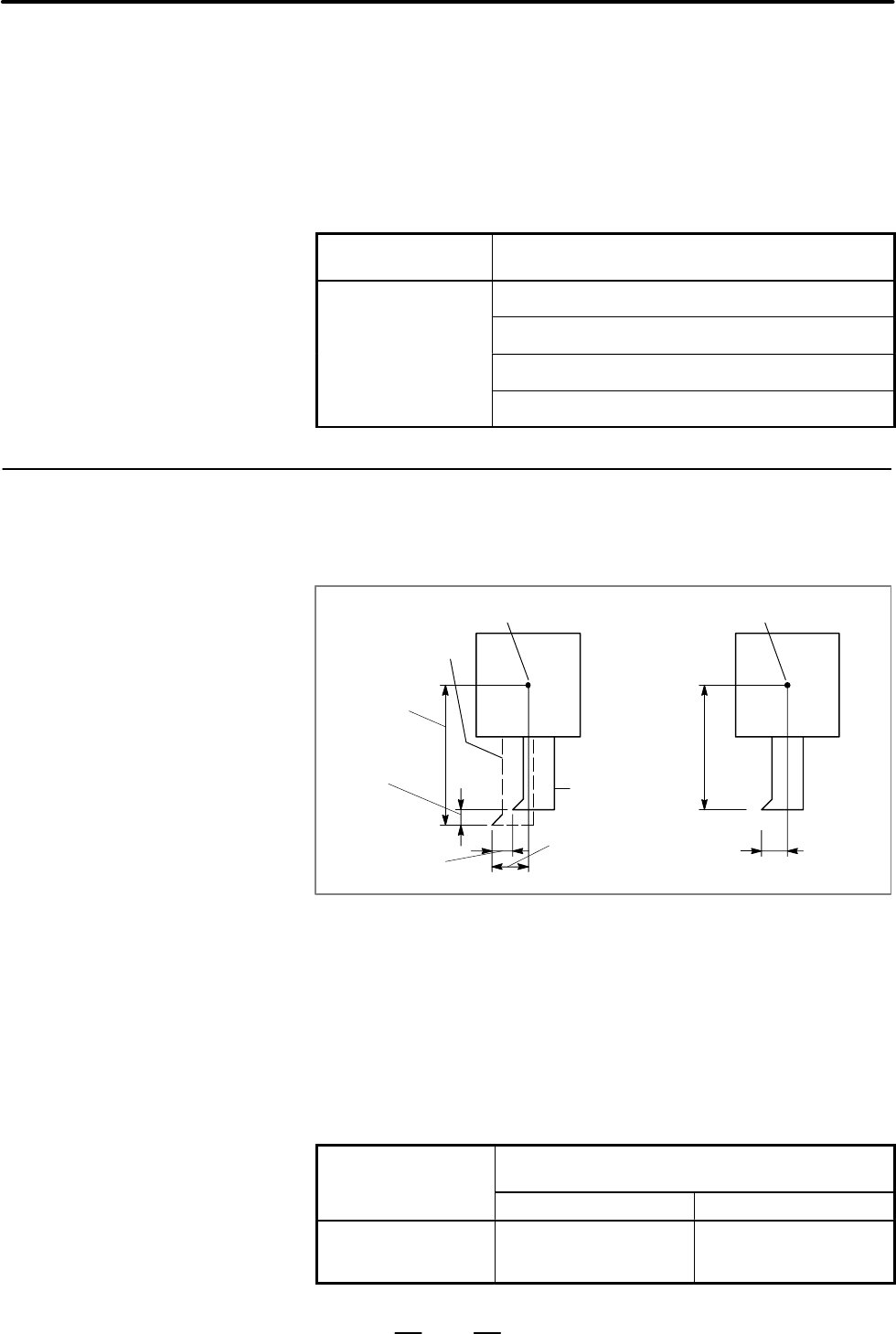

(1)Tool compensation memory C
Memory for geometry compensation and wear compensation is sepa-
rate in tool compensation memory C. Geometry compensation and
wear compensation can thus be set separately. Separate memories are
prepared for cutter compensation (for D code) and for tool length com-
pensation (for H code).
The above description is summarized as follows:
Tool compensation
memory
Compensation amount
Geometry compensation value for H code
Geometry compensation value for D code
C
Wear compensation value for H code
Wear compensation value for D code
Tool compensation values include tool geometry compensation values
and tool wear compensation values (Fig. 10.2.1 (b)).
Tool compensation can be specified without differentiating compensation
for tool geometry from that for tool wear (Fig. 10.2.1 (c)).
X axis
geometry
offset
value
X axis
wear
offset
value
Point on the program
Imaginary tool
Actual
tool
Point on the program
Offset
value on
X axis
Offset
value on
Z axis
Fig. 10.2.1 (b) Difference the
tool geometry offset from tool
wear offset
Fig.10.2.1 (c) Not difference the
tool geometry offset from tool
wear offset
Z axis
wear
offset
value
Z axis
geometry
offset
value
Tool compensation values can be entered into CNC memory from the
MDI unit or from a program.
A tool compensation value is selected from the CNC memory when the
corresponding code is specified after address T in a program.
The value is used for tool offset or tool nose radius compensation.
Tool offset amount range which can be set is as follows:
Increment system
Tool compensation
(geometry compensation, wear compensation)
Increment system
Metric input Inch input
IS-B
IS-C
"999.999 mm
"999.9999 mm
"99.9999 inch
"99.99999 inch
D Tool compensation
memory
General (T series)
D Range of tool
compensation value
