1. AXIS CONTROL

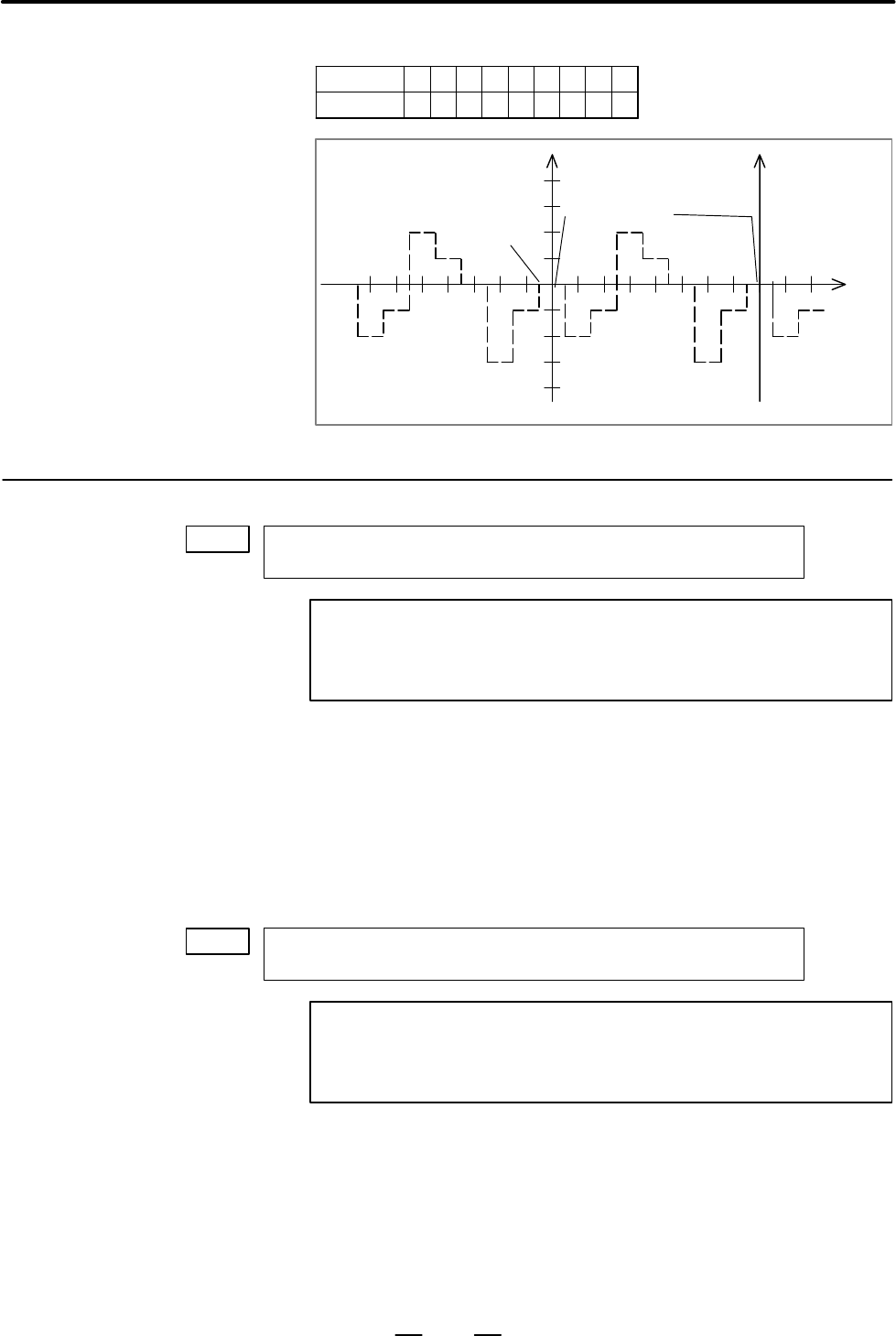

The following is an example of compensation amounts.

(deg)

60 61 62 63 64 65 66 67 68

+1 –2+1+3–1 –1 –3+2+1

Compensation

value

61 62 63 64 65 66 67

(60)

–1

–2

–3

–4

Pitch error compensation value

(absolute value)

Reference position

45 90 135 180 225 270 315

61 62 63 64 65 66 67

45 90 135 180 225 270 315

61 62

45 90

(60)

3620

Number of the pitch error compensation position for the reference position

for each axis

NOTE

After setting this parameter, turn the power off then on again

so that the setting will take effect.

[Data type] Word axis

[Unit of data] Number

[Valid data range] 0 to 1023

Set the number of the pitch error compensation position for the reference

position for each axis.

3621

Number of the pitch error compensation position at extreme negative

position for each axis

NOTE

After setting this parameter, turn the power off then on again

so that the setting will take effect.

[Data type] Word axis

[Unit of data] Number

[Valid data range] 0 to 1023

Set the number of the pitch error compensation position at the extreme

negative position for each axis.

Parameter
