Series 0i/0i Mate - Model B Connection manual (Function) Page 345
Connection manual (Function)
B–63833EN–1/02
7. FEEDRATE CONTROL/ACCELERATION
AND DECELERATION CONTROL
327

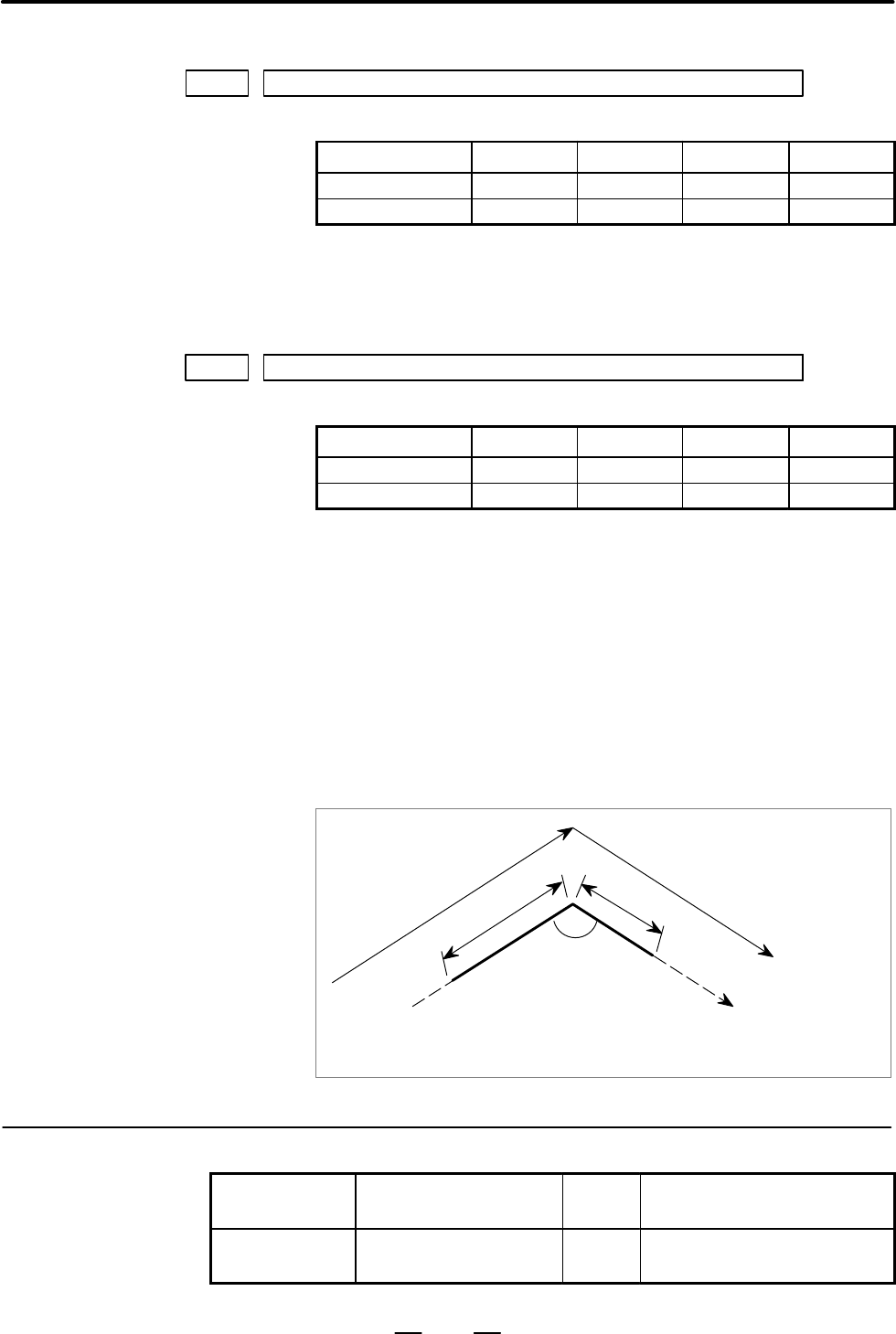

1713 Distance Le from the starting point in inner corner automatic override
[Data type] Word
Increment system IS–A IS–B IS–C Unit
Input in mm 1 0.1 0.01 mm
Input in inches 0.1 0.01 0.001 inch
[Valid data range] 0 to 3999
Set distance Le from the starting point in an inner comer for automatic
corner override.
1714 Distance Ls up to the ending point in inner corner automatic override
[Data type] Word
Increment system IS–A IS–B IS–C Unit
Input in mm 1 0.1 0.01 mm
Input in inches 0.1 0.01 0.001 inch
[Valid data range] 0 to 3999
Set distance Ls up to the end point in an inner corner for automatic corner
override.
If qx qp, the inside of a comer is recognized. (q is set in parameter 1711.)
When an inner corner is recognized, the feedrate is overridden in the range
of Le in the block immediately before the intersection of the corner and Ls
in the next block following the intersection.
Ls and Le are each a straight line connecting the intersection of the corner
and a given point on the path of the cutter’s center.
Ls and Le are set in parameters 1713 and 1714.
An override is applied from point a to b.
Programmed
path
Cutter center
path
Ls
Le
a
b
θ
Series 0i–B
OPERATOR’S MANUAL
(M series) (B–63844EN)
II.5.4.2
Automatic Override for Inner
Corners
Series 0i Mate–B
OPERATOR’S MANUAL
(M series) (B–63864EN)
II.5.4.2
Automatic Override for Inner
Corners
[Unit of data]
[Unit of data]
Reference item
