11. PROGRAM COMMAND

649

Although subprograms are useful for repeating the same operation, the

custom macro function also allows use of variables, arithmetic and logic

operations, and conditional branches for easy development of general

programs such as pocketing and user–defined canned cycles. A

machining program can call a custom macro with a simple command, just

like a subprogram.

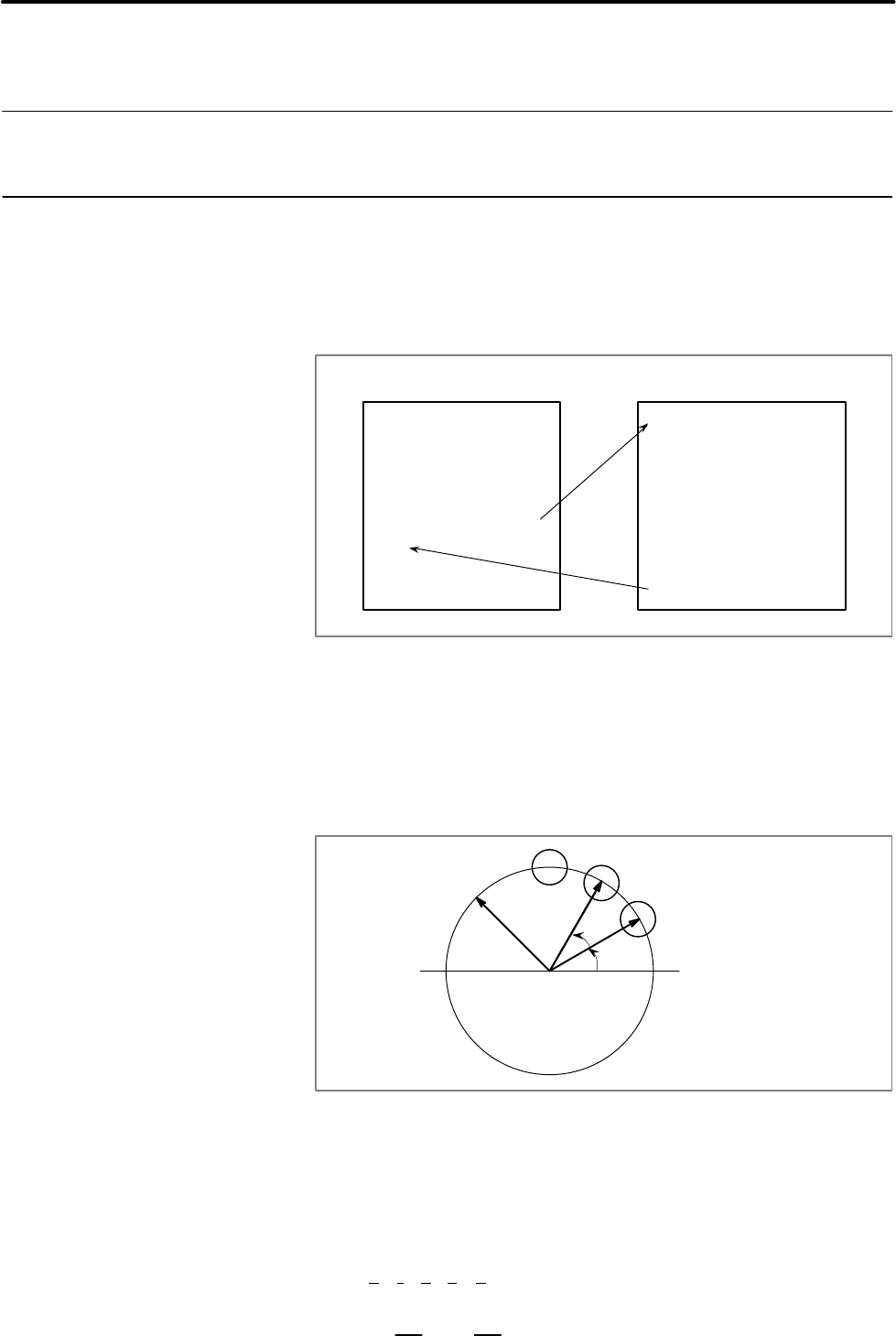

O0001 ;

G65 P9010 R50.0 L2 ;

M30 ;

Machining program

Custom macro

O9010 ;

#1=#18/2 ;

G01 G42 X#1 Y#1 F300 ;

G02 X#1 Y–#1 R#1 ;

M99 ;

This means that a function of general use can be formed when

programming a certain function as a custom macro. That is, programs can

be written using variables for data that might change or be unknown. This

can be further applied to group technology.

Similar workpieces can be collected as a group and a universal custom

macro body can be programmed using variables applicable to each group.

In this way, programming is not required for the workpieces in the group.

The programmer only need to assign actual values to the variables.

Bolt hole circles as shown in the above figure can be made easily.

Once a custom macro body for the bolt hole circle is programmed and

registered, the CNC can operate as if it has the bolt hole circle cutting

function.

Programmers can use the bolt hole circle function by using the following

command only:

(Example of calling bolt hole circle)

G65 Pp Rr Aα Bβ Kk ;

11.5

CUSTOM MACRO

11.5.1

Custom Macro

General
