Series 0i/0i Mate - Model B Connection manual (Function) Page 984
Connection manual (Function)
17. PCMCIA ETHERNET FUNCTION
B–63833EN–1/02
966
This subsection describes the method of parameter input when the
PCMCIA Ethernet function for the Series 0i–B is used.
Basic method of data input
The basic method of data input is described below, using an example of
IP address input.
1 Place the CNC in the MDI mode.
2 Display the Ethernet parameter screen.
3 Move the cursor to a desired input item with cursor keys.
4 Type data with MDI keys.
5 Press the [INPUT] soft key or the function key
INPUT
to enter the data.
NOTE
When deleting numeric data already set, enter 0. When
deleting character data already set, enter SP (space).

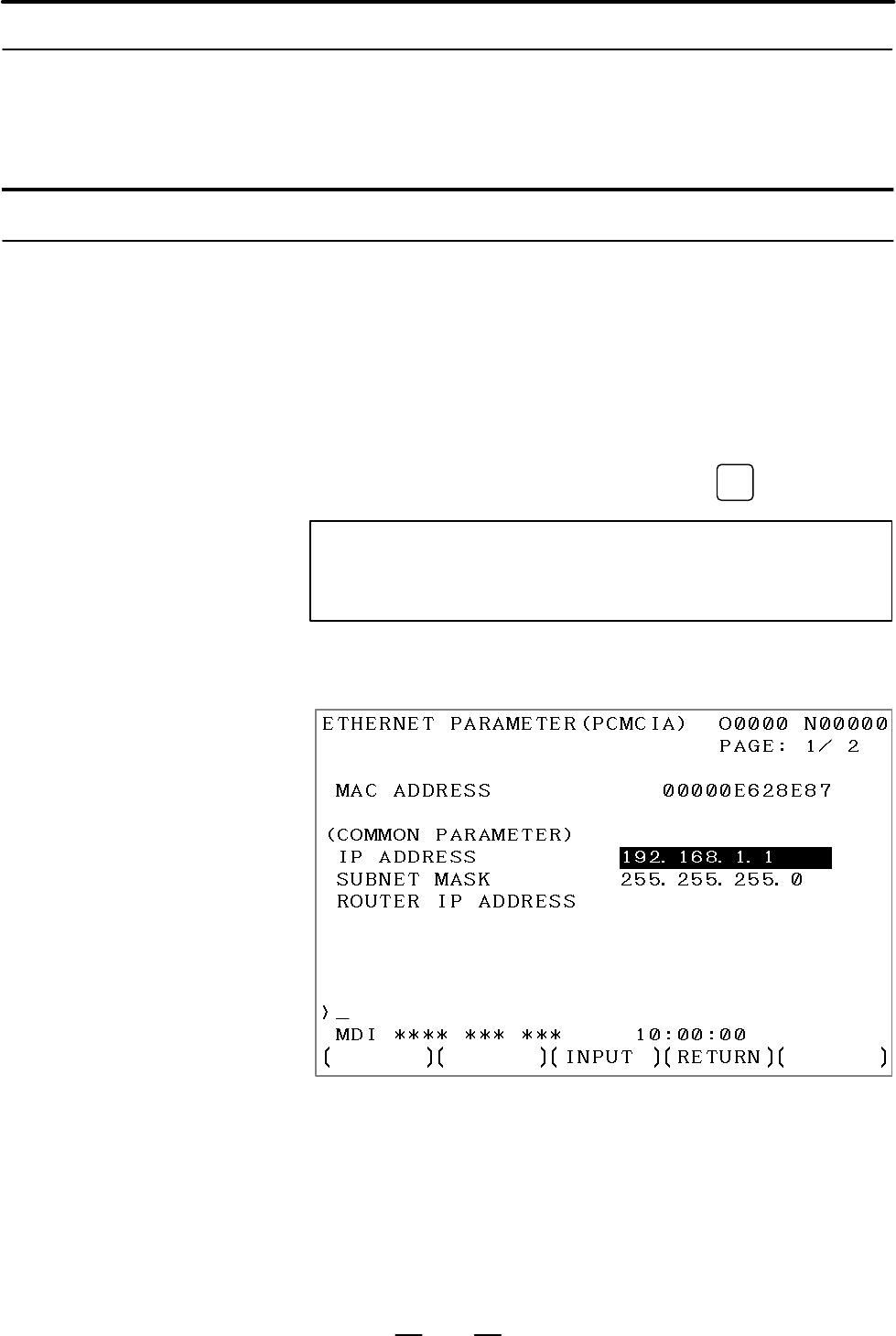

Example) Setting 192.168.1.2 as IP address data
(a) Move the cursor to the item of IP address.
17.2.2
Communication
Parameter Input
Method
Procedure
