17. PCMCIA ETHERNET FUNCTION

B–63833EN–1/02

970

With the PCMCIA Ethernet function, a dedicated maintenance screen is

available.

The maintenance screen enables operations to be checked when the

PCMCIA Ethernet function operates abnormally.

Display

1 Press the function key

SYSTEM

2 Press the continuous menu key at the right end of the soft key display.

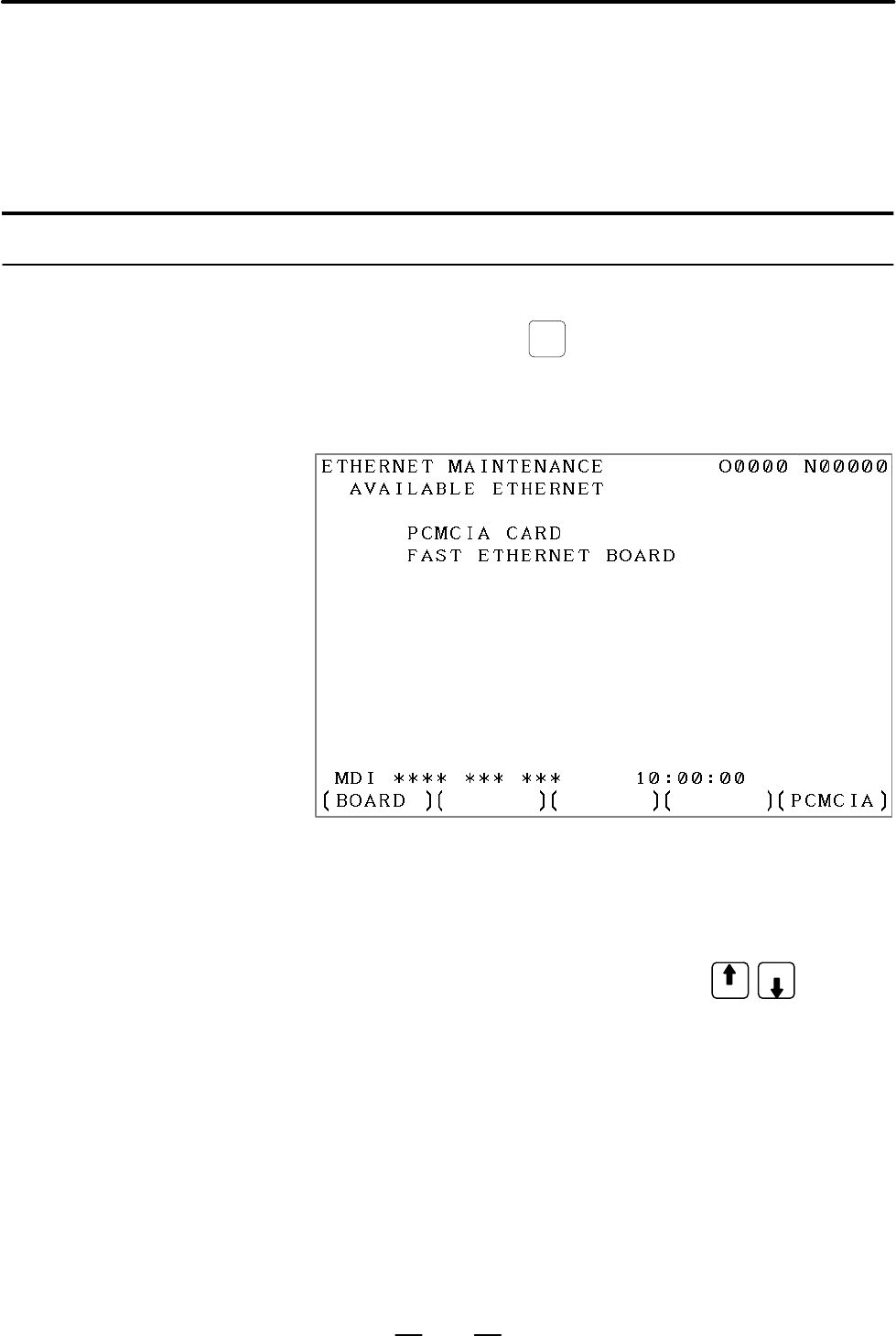

3 Press the [ETHMNT] soft key. The Ethernet maintenance screen

appears. The Ethernet functions currently available are displayed.

The upper row displays ”PCMCIA CARD.”

The lower row displays the usable Ethernet option boards. When no

option board is installed, no information is displayed.

4 By pressing the [PCMCIA] soft key, the maintenance screen for the

PCMCIA Ethernet function can be displayed.

5 Switch the screen display with the page keys

PAGE

17.4

PCMCIA ETHERNET

MAINTENANCE

SCREEN

Procedure
