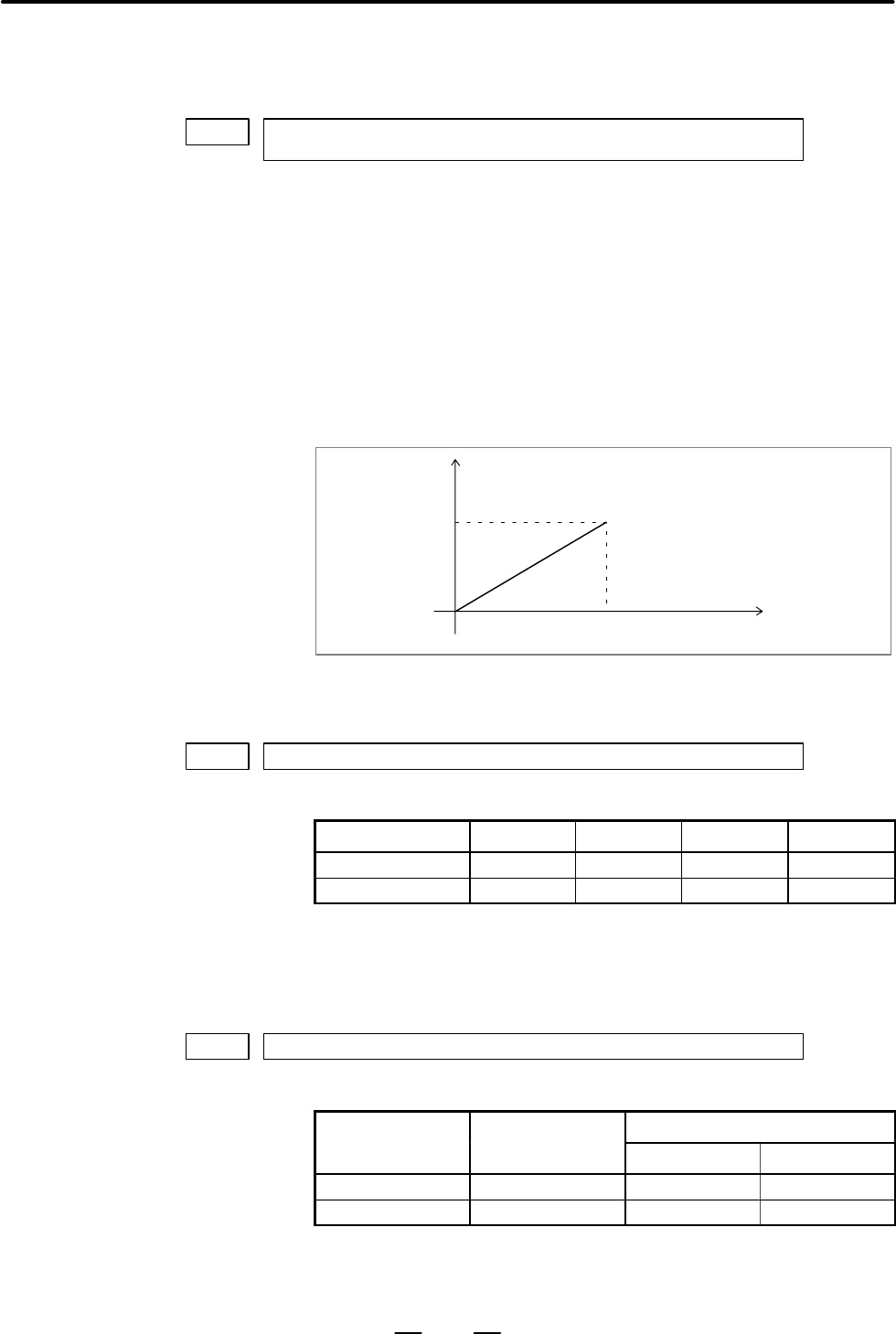

Series 0i/0i Mate - Model B Connection manual (Function) Page 387
Connection manual (Function)
B–63833EN–1/02
7. FEEDRATE CONTROL/ACCELERATION
AND DECELERATION CONTROL
369
1785 Parameter for determining the allowable acceleration in feedrate clamping
by acceleration
[Data type] Word axis
[Unit of data] 1 ms
[Valid data range] 0 to 32767
This parameter is used to set the time required to reach the maximum
cutting feedrate and determine the allowable acceleration when feedrate
clamping by acceleration is performed.
The allowable acceleration is determined from the maximum cutting
feedrate and the data set in this parameter. Parameter 1432 is used as the
maximum cutting feedrate.
Parameter 1785
Parameter
1432
Feedrate
(mm/min)
Time (ms)
Allowable acceleration
1731 Arc radius for the upper limit imposed on feedrate
[Data type] 2–word
Increment system IS–A IS–B IS–C Unit
Metric input 0.01 0.001 0.0001 mm
Inch input 0.001 0.0001 0.00001 inch
[Valid data range] 1000 to 99999999
This parameter sets the arc radius for the upper limit imposed on the
feedrate set in parameter 1730.
1730 Upper limit imposed on feedrate for arc radius R
[Data type] Word
Valid data range
Increment system Unit of data
IS–A, IS–B IS–C
Millimeter machine 1 mm/min 8 to 15000 8 to 12000
Inch machine 0.1 inch/min 8 to 6000 8 to 4800
This parameter sets the upper limit imposed on the feed rate for the arc
radius set in parameter 1731.
D Parameter related to
feedrate clamping by
acceleration
D Parameters related to
feedrate clamping by arc
radius
[Unit of data]
[Unit of data]
[Valid data range]
